11 Hydraulic performance
11 - 1 Water Pressure Drop Curve Evaporator
1
11
FWF-BT
4TW33049-5

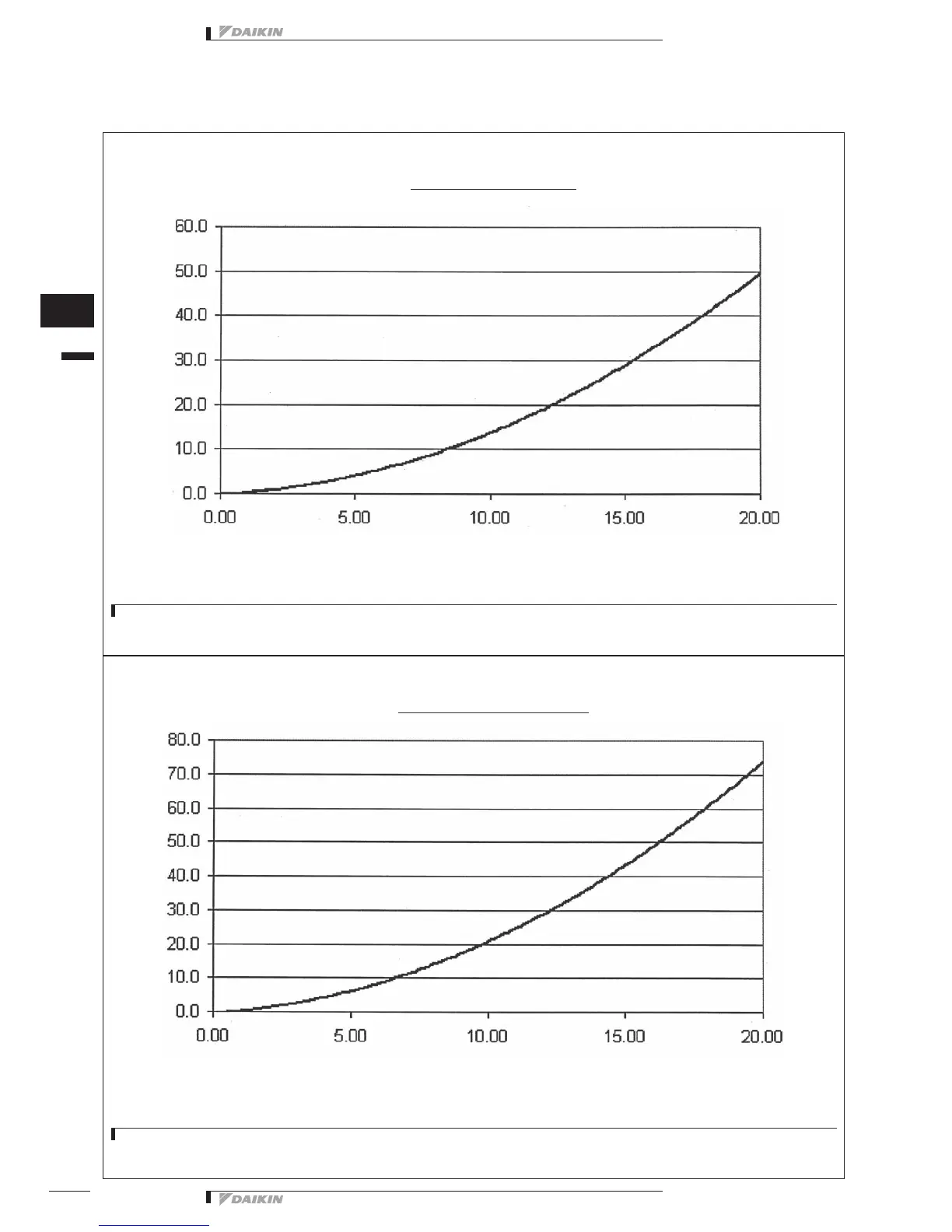

Pressure drop over FWF02B7TV1B
NOTE
1. This graph can be used to calculate the pressure drop over the fan coil unit. The pressure drop over the valve is not included.
Water fl ow (l/min)
Pressure drop (kPa)
FWF-BT
4TW33059-5
Pressure drop over FWF03~05B7TV1B
NOTE
1. This graph can be used to calculate the pressure drop over the fan coil unit. The pressure drop over the valve is not included.
Water fl ow (l/min)
Pressure drop (kPa)
