Daikin FWF-BT - Hydraulic Performance; 11-1 Water Pressure Drop Curve Evaporator

• Indoor Unit • 4-way blow ceiling mounted cassette • FWF-BF
• Fan coil • Indoor Unit
38
11 Hydraulic performance

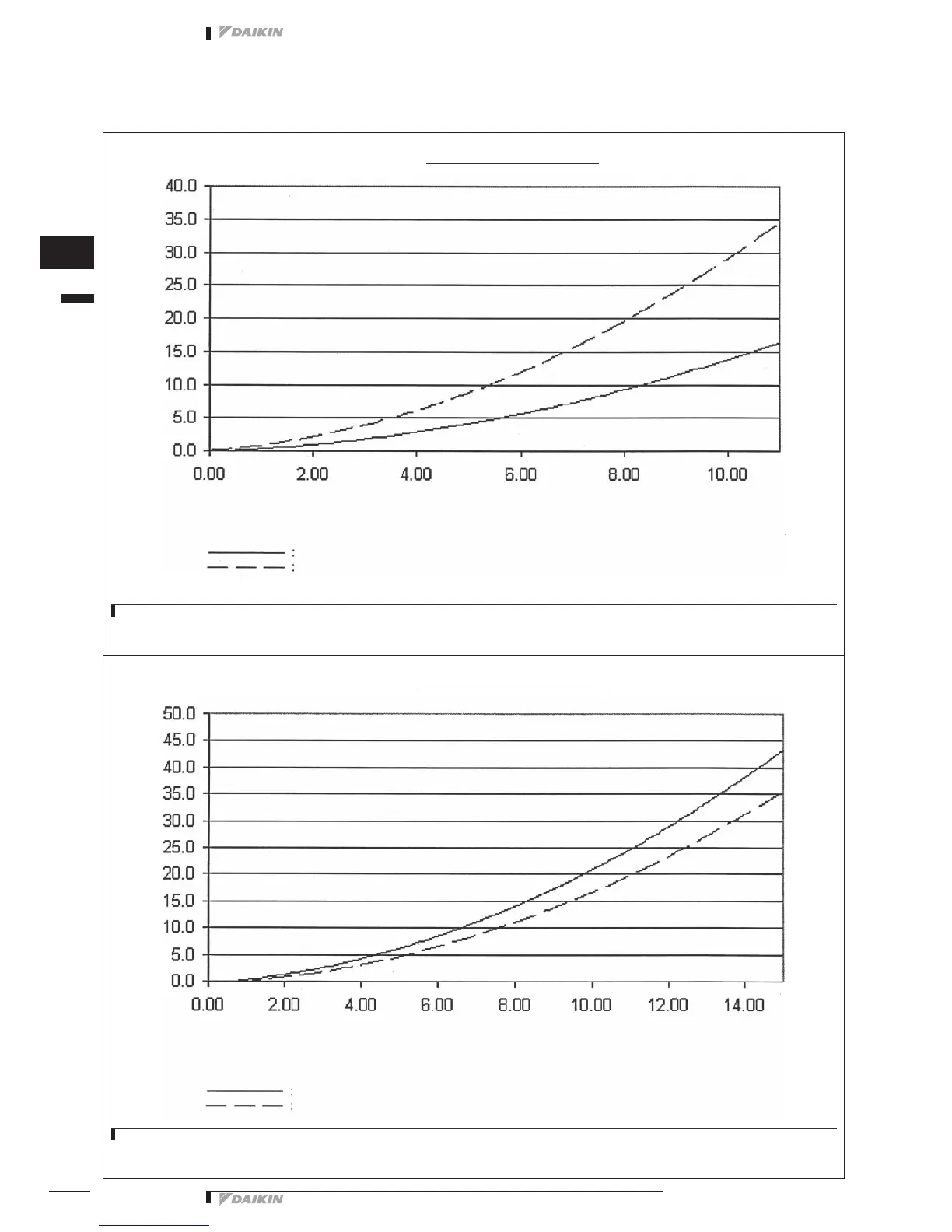

11 - 1 Water Pressure Drop Curve Evaporator
2
11
FWF-BF
4TW33089-5
Pressure drop over FWF02B7FV1B
NOTE
1. This graph can be used to calculate the pressure drop over the fan coil unit. The pressure drop over the valve is not included.
Water fl ow (l/min)
For Cooling
For Heating
Pressure drop (kPa)
FWF-BF
Pressure drop over FWF03-05B7FV1B
NOTE
1. This graph can be used to calculate the pressure drop over the fan coil unit. The pressure drop over the valve is not included.
Water fl ow (l/min)
For Cooling
For Heating
Pressure drop (kPa)
4TW33099-5
