• Indoor Unit • 4-way blow ceiling mounted cassette • FWF-BF

• Fan coil • Indoor Unit

7 Dimensional drawings

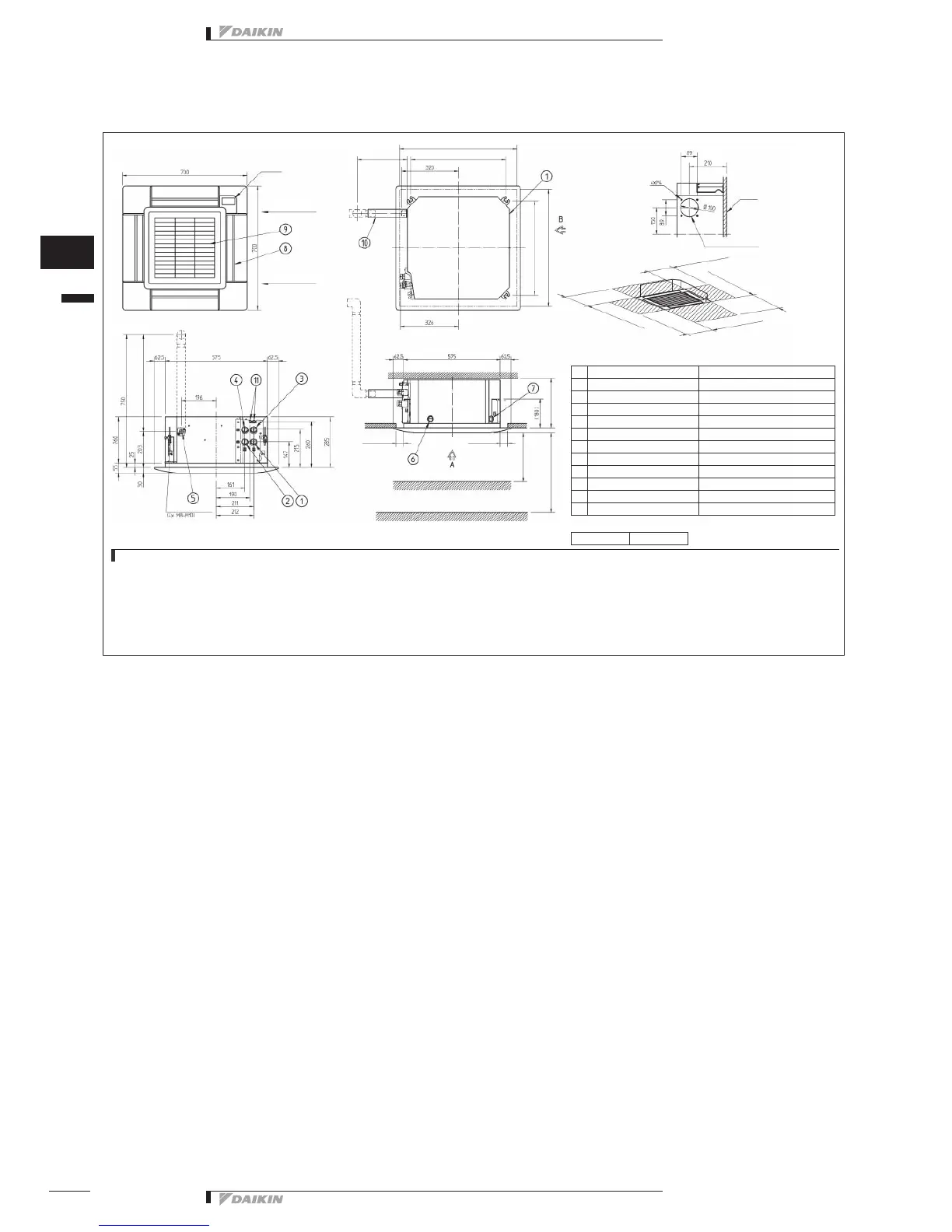

7 - 1 Dimensional Drawings

Note2

300 or less

45 or less45 or less

Suspension bolt

Adjustable 0 - 545

(See note)

585-660 (Ceiling opening space)

Hole

533 (Suspension position)

Drain connection side

Pipe connection side

1. Sticking location for manufacturer’s label: For indoor unit: on the bell mouth inside suction grille. For decoration panel: on the inner frame inside suction grille.

2. In case of using Infrared remote control, this position will be a signal receiver. Refer to drawing of Infrared remote control for details.

3. When the temperature and humidity in the ceiling exceeds 30°C and RH 80% or the fresh air is inducted into the ceiling or the unit continues 24 hours operation,

an additional insulation is required. (Thickness 10mm or more of glaswool or PE foam)

4. Though the installation is acceptable up to maximum of 660 mm square ceiling opening, keep a clearance of 45 mm or less between the main unit and the ceiling opening,

so that the panel overlap can be ensured.

3TW33044-1

NOTES

VIEW A

Nr Part name Remark

1 Water pipe connection cooling in 3/4” BSP female (For FWF_B7T: water in)

2Water pipe connection cooling out 3/4” BSP female (For FWF_B7T: water out)

3 Water pipe connection heating in 3/4” BSP female (For FWF-B7F)

4 Water pipe connection heating out 3/4” BSP female (For FWF-B7F)

5 Drain pipe connection VP20 (O.D. Ø26)

6 Power supply entry hole .

7 Transmission wiring entry hole .
