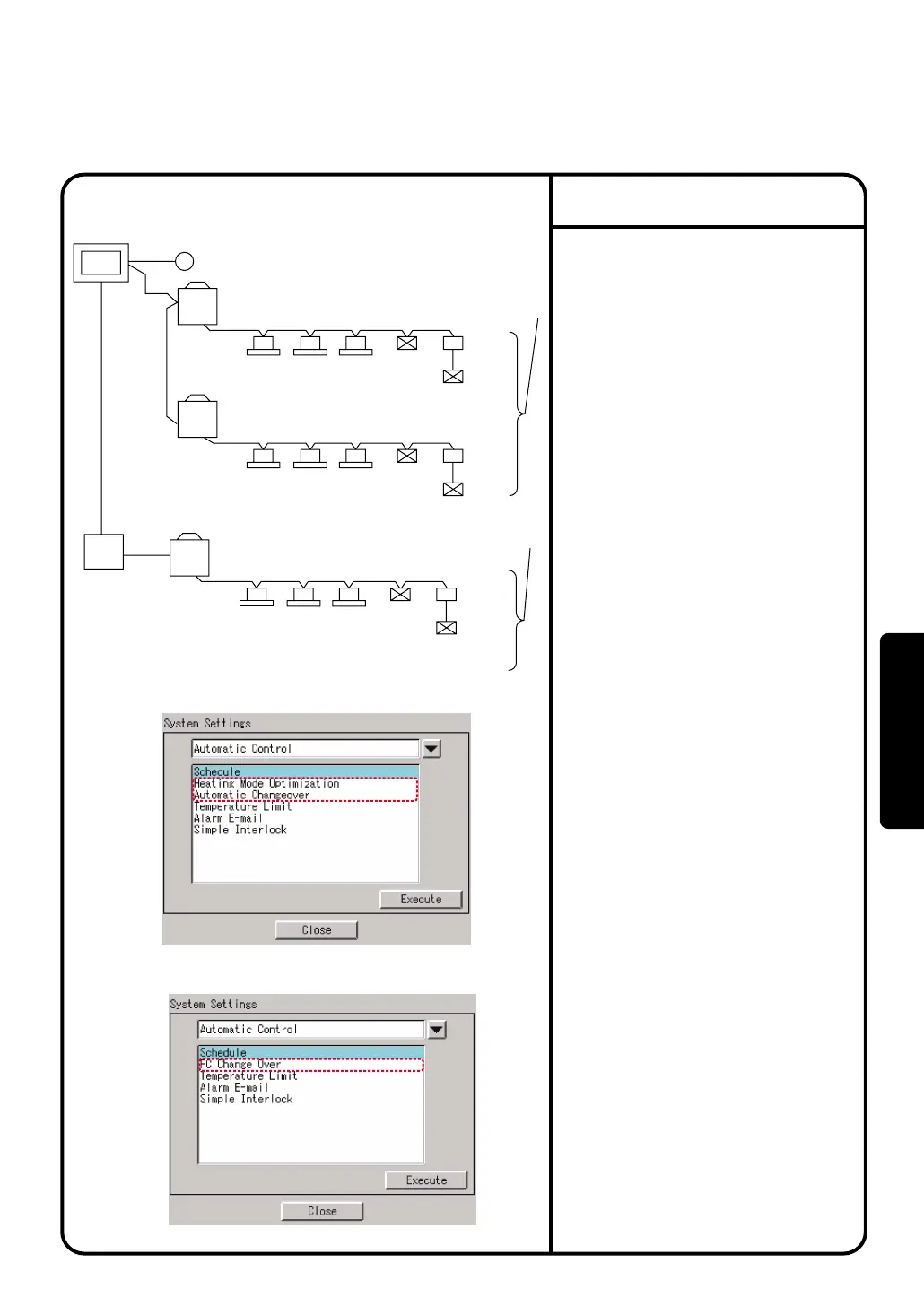

Daikin intelligent touch Controller DCS601C51 - Page 85

84
!-TC
D#–NET
Plus adaptor
Outside air
thermometer
Outdoor
unit
Outdoor
unit
Outdoor
unit
indoor
unit
indoor
unit
indoor
unit
HRV
unit
D#Dio
Damper, etc.
HRV
unit
D#Dio
Damper, etc.
indoor
unit
indoor
unit
indoor
unit
HRV
unit
Damper, etc.
indoor
unit
indoor
unit
indoor
unit
1:1–00 to 1:4–14
2:1–00 to 2:4–15
D#Ai Unit(DAM101A51) Address 1:4–15 (fixed)
D#Dio
NOTE 1)
When FC Change Over function mode is selected,
the number of groups of the indoor units intelligent
Touch Controller is capable of controlling/monitoring
becomes to 63 from 64.
Because the Ai Unit (DAM101A51)must be set 1:4-
15 to enable the FC Change Over function.
Thus the other D3 Address are 1:1-00 to 1:4-14.
When D#-NET Plus adaptor is enabled :1:1-00 to
1:4-14 and 2:1-00 to 2:4-15
NOTE 2)
When in FC Change Over function mode,
the following function does not work,
instead of FC Change Over function.
ID-Unit Group Settings
¡Setpoint Range Limitation
Automatic Control
¡Heating Mode Optimization
¡Automatic Changeover
Please confirm the service engineer that those
setting are reset, when changing Function Mode
from Standard Operation Mode to FC Change Over
Mode
Before use of the FC Change Over
Screen 1 Standard Operation Mode
Screen 2 FC Change Over Mode
System Settings Menu Operation
Operation
