Indoor Unit Installation
1.
Installing the mounting plate
• The mounting plate should be installed on a wall which can support the weight of the indoor unit.
1) Temporarily secure the mounting plate to the wall, make sure that the plate is completely level, and mark the boring
points on the wall.
2) Secure the mounting plate to the wall with screws.

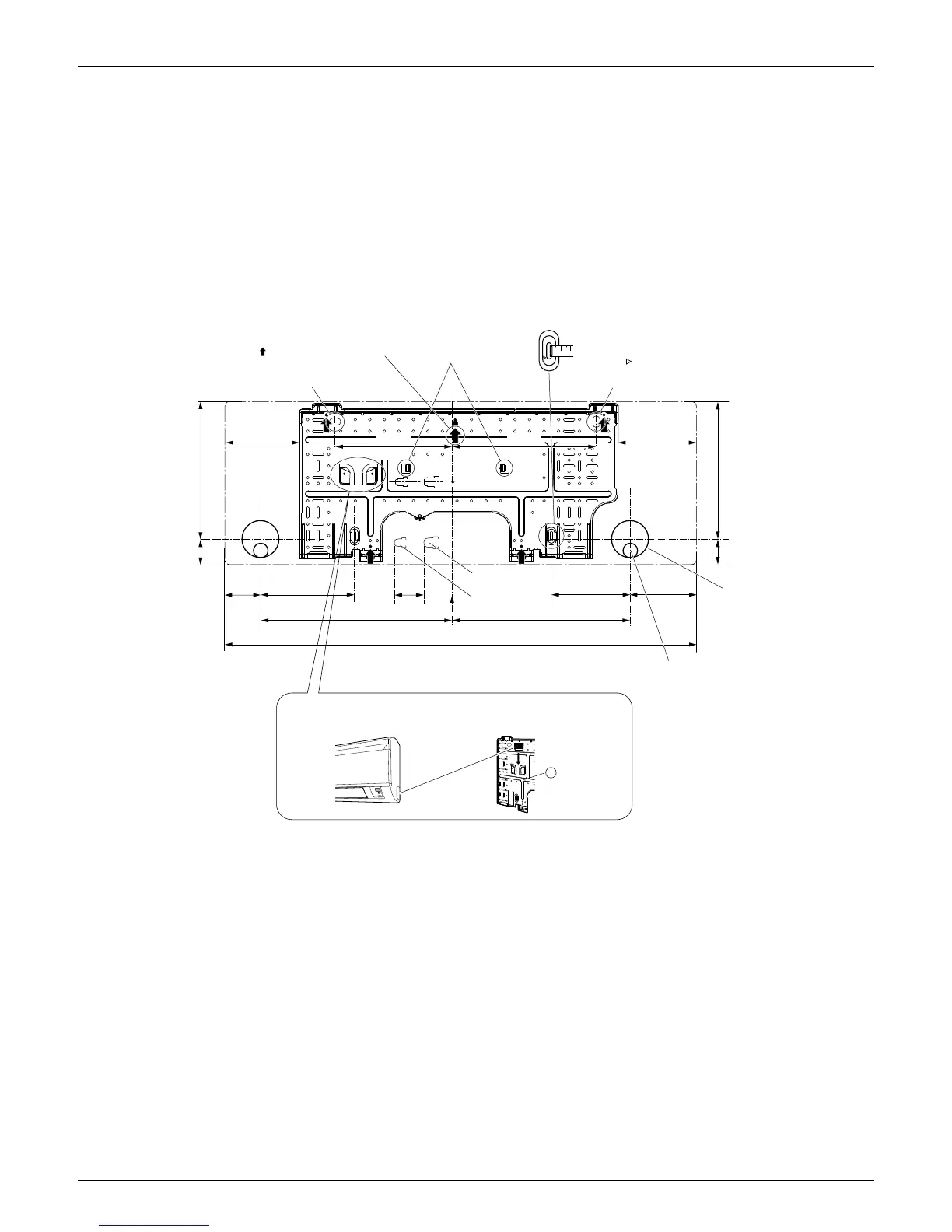

Recommended mounting plate retention spots and dimensions
* The removed pipe port cover can be
kept in the mounting plate pocket.
Removed pipe
port cover
A
Mounting plate
Use tape measure as shown.
Position the end of a tape
measure at .
Liquid pipe end
Gas pipe end
Through-
the-wall hole
φ2-9/16 (φ65)
Recommended mounting plate
retention spots (5 spots in all)
Place a leveler
on raised tab.
9-33/64
(241.7)
1-5/8
(41.3)
13-1/64
(330.5)
13-1/32
(331)
6-19/64
(160)
2-1/8
(54)
30-5/16
(770)
9-33/64
(241.7)
1-5/8
(41.3)
2-9/64
(54.5)
6-19/64
(160)
1-31/32
(50)
4-31/32
(101)
4-47/64
(120.5)
7-63/64
(203)
9-23/32
(247)
Drain hose
position
unit: inch (mm)
(Bolt size: 3/8 (M10)) (Bolt size: 3/8 (M10))
