Names of Parts and Operations

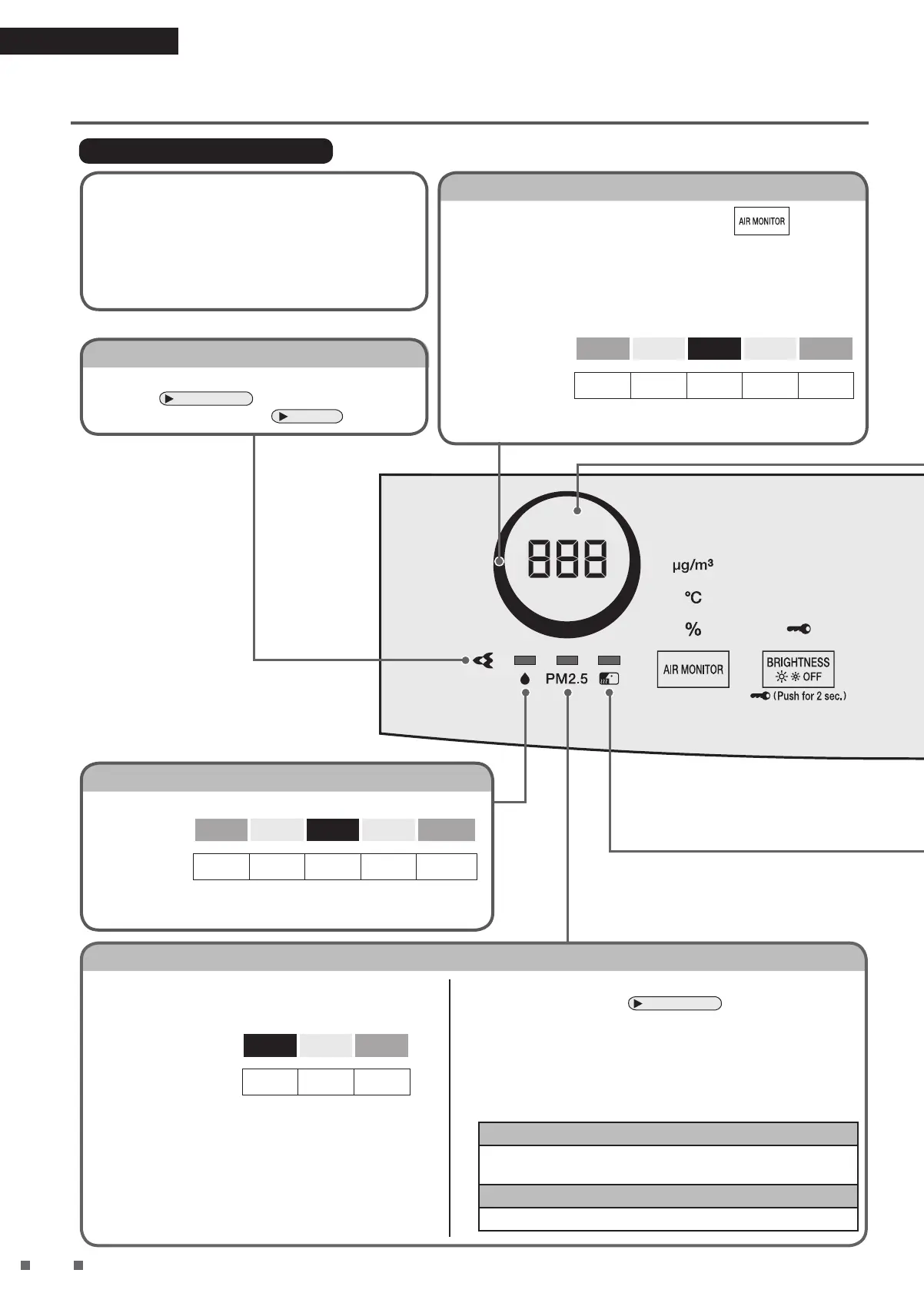

Operating/Indicator Panel
Operations and operating status will be
notified by tones.
• Operation starts ......................... 2 quick beeps
• Settings change ......................... 1 short beep
• Operation stops ......................... 1 long beep
• When cannot be used ................ 3 shorts beeps
• Notification .................................
3 long beeps
Lamp lights up depending on Streamer operation
condition.
Page 21, 22
If the Streamer lamp blinks.
Page 30
Streamer lamp [blue]
Displays the condition of the air selected with
in
3 colours: Blue, Orange, Red.
• if “μg/m
3
” is selected
Lights up in the same colour as the PM2.5 sensor lamp.
• if “°C” is selected
Lights up in the colours displayed below, according to the
current indoor temperature.
Red Orange Blue Orange Red
≤ 10 11-17 18-28 29-35 ≥ 38
Indoor temperature
(°C)
Lamp colour
• if “%” is selected
Lights up in the same colour as the humidity sensor lamp.
Daikin eye
Indicates the level of humidity in 3 colours: Blue, Orange, Red.
Red Orange Blue Orange Red
0-20 21-29 30-60 61-70 71-100
Indoor humidity
(%)
Lamp colour
• After operation is started, the lamp will light blue for about the
30 seconds regardless of humidity level.
Humidity sensor lamp
Indicates the volume of ambient dust by 3 lamp colours:
Blue, Orange, Red
• Blue indicates clean air.
Blue Orange Red
0-12 13-24 ≥ 25
PM2.5 concentration
(μg/m
3
)
Lamp colour
• After operation is started, the lamp will light blue
for the first minute (approx.) regardless of volume
of dust.
• If the responsiveness of the PM2.5 sensor is poor, change the
sensitivity of the sensor.
Page 23, 24
• The responsiveness of the PM2.5 sensor may be poor during
FAN setting Turbo or when airflow is high in AUTO FAN
MODE. The strong airflow causes dust to be drawn into the
air inlets before it can be detected by the PM2.5 sensor. This
is normal (not malfunction).
PM2.5 sensor detection range
Detectable matter
house dust, tobacco smoke, pollen, mite droppings and
remains, pet hairs, diesel particulate matter
Sometimes detectable
steam, oil smoke
PM2.5 sensor lamp
