Daikin R32 Split Series Installer's Reference Guide

7 | Unit installation
Installer reference guide
38
EKHWET90~120BAV3
R32 Split series – Domestic hot water tank
4P680077-1 – 2021.11
440
>300
711 = mod.90
963 = mod.120
(mm)
2×

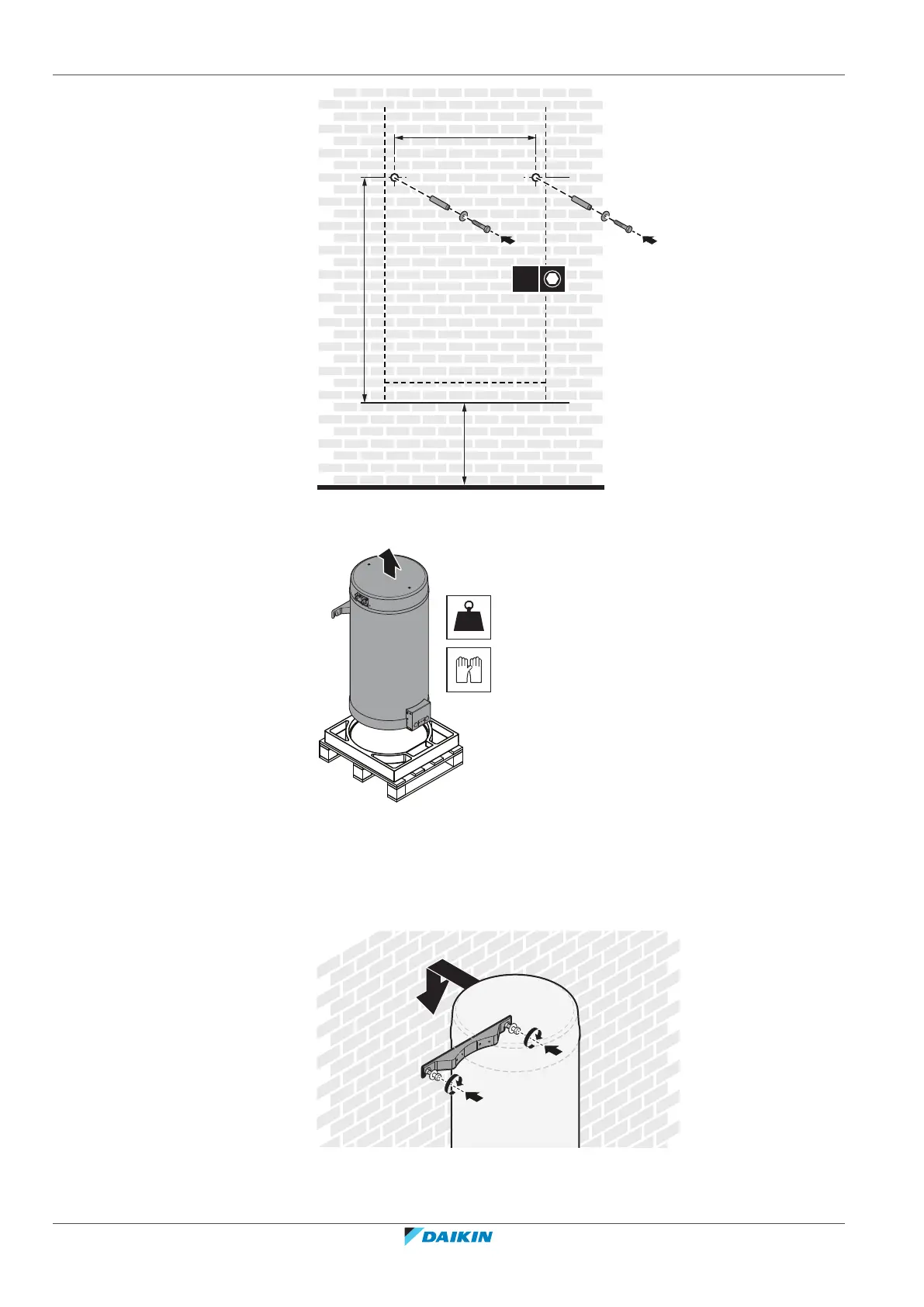

2 Lift the unit.
±45
kg
3 Attach the unit to the wall:
▪ Locate the bracket on the back of the unit above the 2 bolts.
▪ Lower the bracket on the back of the unit over the 2 bolts.
▪ Tighten the 2 bolts.
▪ Make sure the unit is fixed properly.
