EKHWET90~120BAV3
R32 Split series – Domestic hot water tank
4P680077-1 – 2021.11
+
–
a
OR
b
c
c2
c4
c1
c3

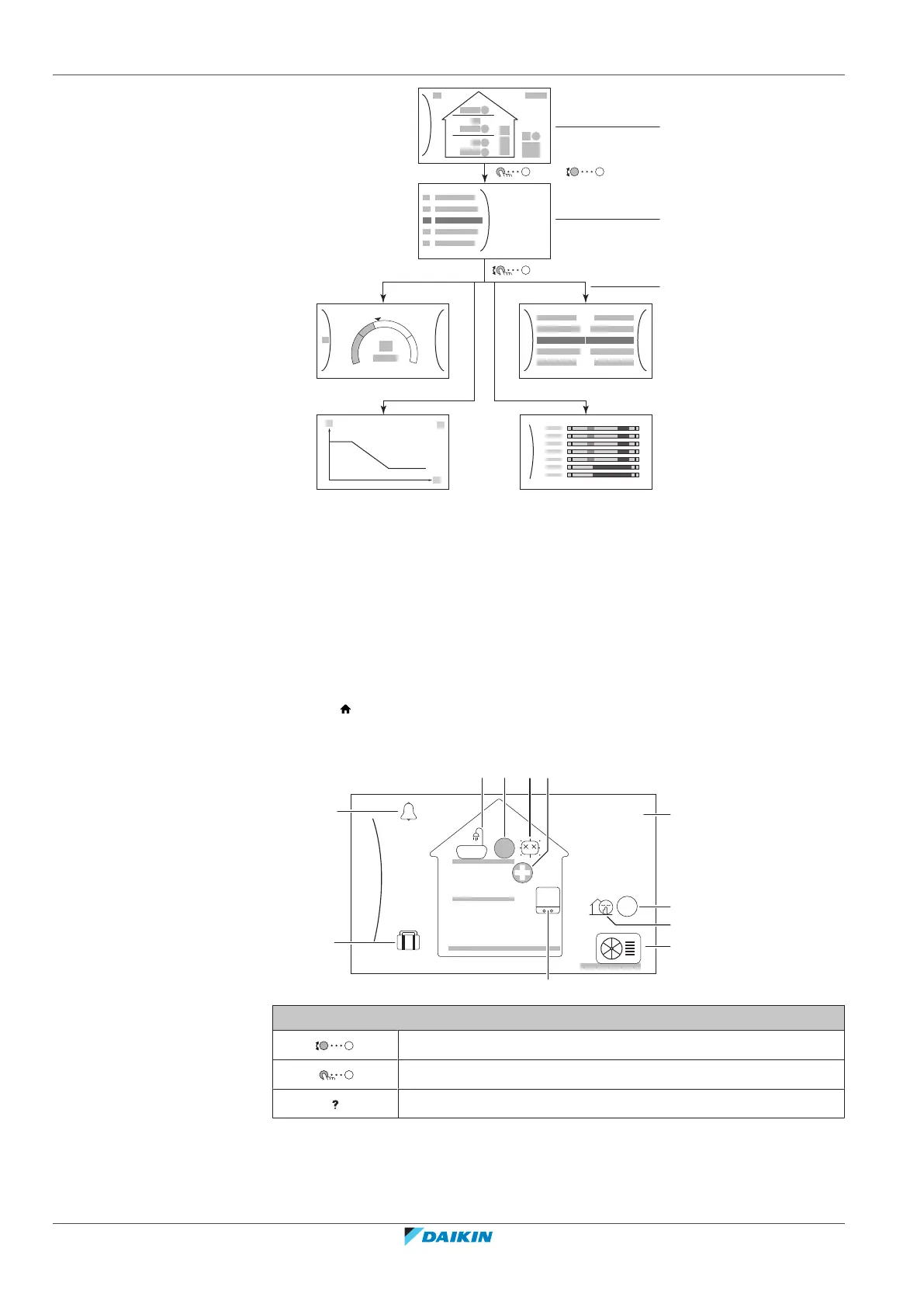

a Home screen
b Main menu screen
c Lower level screens:
c1: Setpoint screen
c2: Detailed screen with values
c3: Screen with weather-dependent curve
c4: Screen with schedule
10.3.2 Home screen
Press the button to go back to the home screen. You see an overview of the unit
configuration and the room and setpoint temperatures. Only symbols applicable
for your configuration are visible on the home screen.
6
26 Feb 2019
22:19
55
g
h
d
e3
e2
f
e1
a2a1 b c
Possible actions on this screen
Go through the list of the main menu.
Go to the main menu screen.
Enable/disable breadcrumbs.
