6
IM 738-2
Introduction:
Refrigera
tion Piping

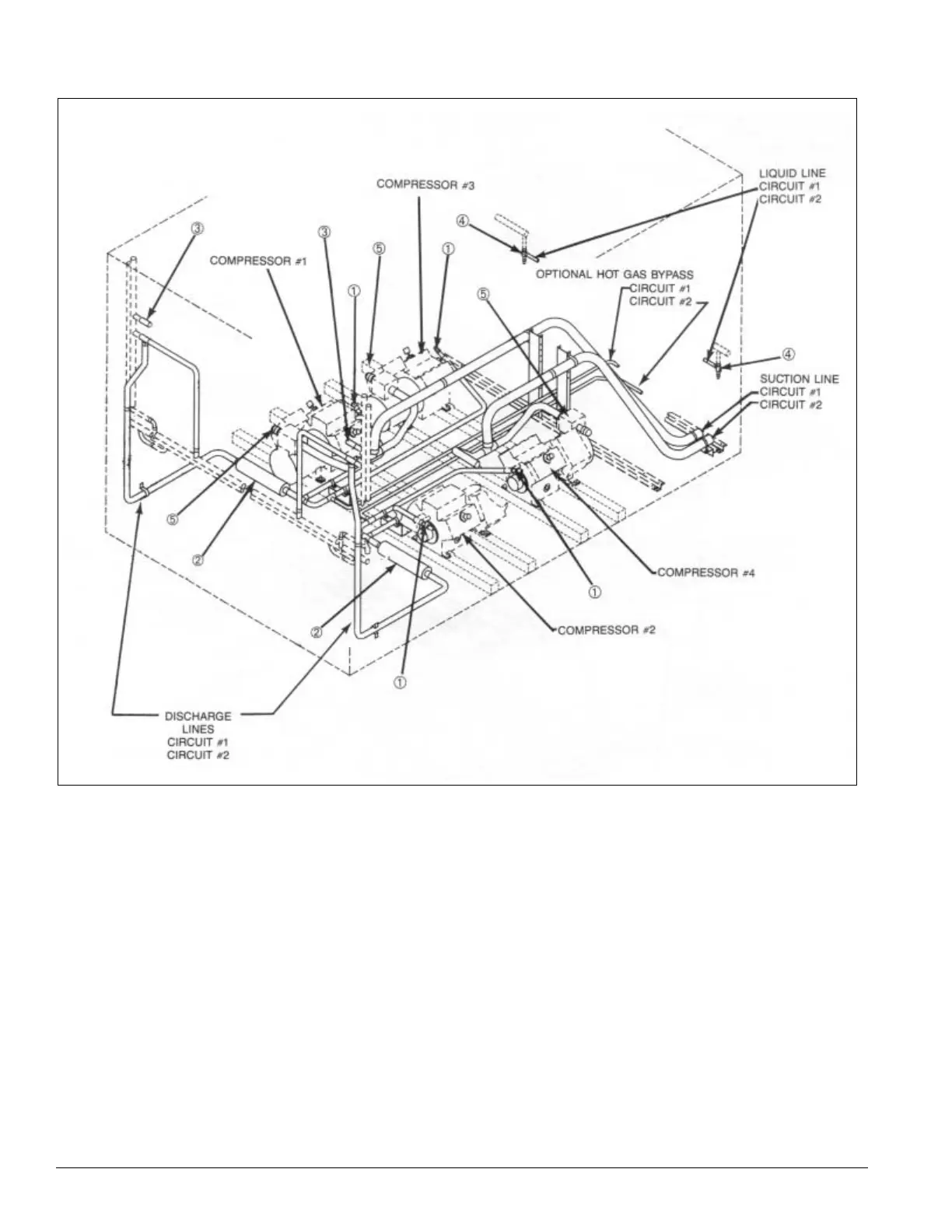

Figure 7. Cond
enser piping, four reci
procating compr
essors (1
15 to 135C)
Legend
1 - Dischar
ge Line Service
V
alve
2 - Dischar
ge Muffler
3 - High Pressure Re
lief V
alve
4 - Liquid
Line Manual
Shut-of
f V
alve
5 - Suction Line Service V
alve
7
9
Table of Contents
Default Chapter
2
Table of Contents
2
Introduction
3
Unit Nameplate
3
Compressor Nameplate
3
Gas Burner Nameplate
3
Hazard Identification Information
3
Unit Description
4
Condenser Fan Arrangement
6
Refrigeration Piping
7
Control Locations
10
Control Panel
12
Controls, Settings, and Functions
20
Mechanical Installation
23
Unit Clearances
23
Ventilation Clearance
24
Overhead Clearance
24
Roof Curb Assembly and Installation
25
Post and Rail Mounting
28
Rigging and Handling
28
Reassembly of Split Units
31
Unit Piping
46
Steam Coil Piping
47
Damper Assemblies
49
Cabinet Weather Protection
51
Installing Ductwork
51
Installing Duct Static Pressure Sensor Taps
52
Installing Building Static Pressure Sensor Taps
53
Electrical Installation
54
Field Power Wiring
54
Field Control Wiring
57
Preparing Unit for Operation
58
Spring Isolated Fans
58
Relief Damper Tie-Down
58
Adjusting Scroll Dampers
59
Adjusting Supply Fan Thrust Restraints
59
Sequences of Operation
60
Power-Up
60
Fan Operation
60
Economizer Operation
61
Mechanical Cooling Operation
61
Heating
62
Wiring Diagrams
64
Legend
64
Unit Options
90
Enthalpy Control
90
Hot Gas Bypass
91
Speedtrol™ (N/A Unit Sizes 015C to 030C)
92
External Time Clock
92
Smoke and Fire Protection
92
Freeze Protection
93
Entering Fan Temperature Sensor
93
Duct High Pressure Limit
93
Microtech II™ Remote User Interface (UI)
94
Variable Frequency Drive Operation
95
Convenience Receptacle/Section Lights
95
Designflow™ Outdoor Air Damper Option
95
Propeller Exhaust Fan Option
98
Exhaust Fan On/Off Control
100
Ultraviolet Lights Option
100
Ultraviolet Light Operation
101
Check, Test, and Start Procedures
102
Servicing Control Panel Components
102
Before Start-Up
102
Power up
103
Fan Start-Up
103
Economizer Start-Up
103
Compressor Startup
104
Scroll Compressor Rotational Direction (Sizes 15 to 105)
104
Oil Pressure (Sizes 115 to 135C Only)
105
Heating System Startup
106
Air Balancing
106
Sheave Alignment
107
Drive Belt Adjustment
107
Mounting and Adjusting Motor Sheaves
108
Final Control Settings
111
Keypad Accessible Menu Structure
112
Maintenance
115
Servicing Control Panel Components
115
Planned Maintenance
115
Unit Storage
115
Gas Furnace
116
Bearing Lubrication
116
Setscrews
117
Supply Fan Wheel-To-Funnel Alignment
118
Refrigerant Leaks
119
Refrigerant Charge
119
Servicing Refrigerant Sensors or Switches
119
Winterizing Water Coils
119
Control Panel Components
120
Replacement Parts List
123
Service and Warranty Procedure
124
Replacement Parts
124
Scroll Compressor (Sizes 15 to 105C)
124
Reciprocating Compressors (Sizes 115 to 135C)
124
All Compressors
125
In-Warranty Return Material Procedure
125
Limited Product Warranty (North America)
126
Exceptions
126
Assistance
126
Sole Remedy
126
Rooftop Equipment Warranty Registration Form
127
Quality Assurance Survey Report
130
