MeChanICal InsTallaTIon
www.DaikinApplied.com 25 IM 893-10 • ROOFPAK SINGLEZONE UNITS
Lifting Points
Refer to Figure 28 and Figure 29 and the following calculations
to determine whether a four or six point lift is required.
X = distance from the entering air end of the unit (or shipping
section) to the rst lifting lug in the direction of air ow.
For all unit or shipping sections with outdoor air/return air
options, X = 48ʺ
For shippings sections without outdoor air/return air
options, X= 0
Y = distance from condenser or leaving air end of unit to the
last lifting lug.
For all units or shipping sections with condensers use the
following:
Unit Size Y
015, 020, 025 13.9
030, 035, 040 25.6
016, 021, 026, 031, 042,
050, 062, 068
36.5
051, 063, 070, 071, 075, 079,
080, 085, 090, 100, 105
30.0
081, 091, 101, 110-140 38.0
For all units or shipping sections without condensers, Y = 0.
Installation
Z = total base rail length of the units.
NOTE: Z excludes hoods and overhung parts extending past
base rails of the unit.
A = Z - X - Y
If A < 288ʺ, 4-point lift is sufcient
If A > 288ʺ, 6-point lift is required
B = distance from rst lifting lug to middle lifting lug on units
with 6-point lift.
B = A / 2 +/- 48ʺ
NOTE: Middle lifting lug may be installed on either side of the
midpoint to avoid interference with condensate drains.

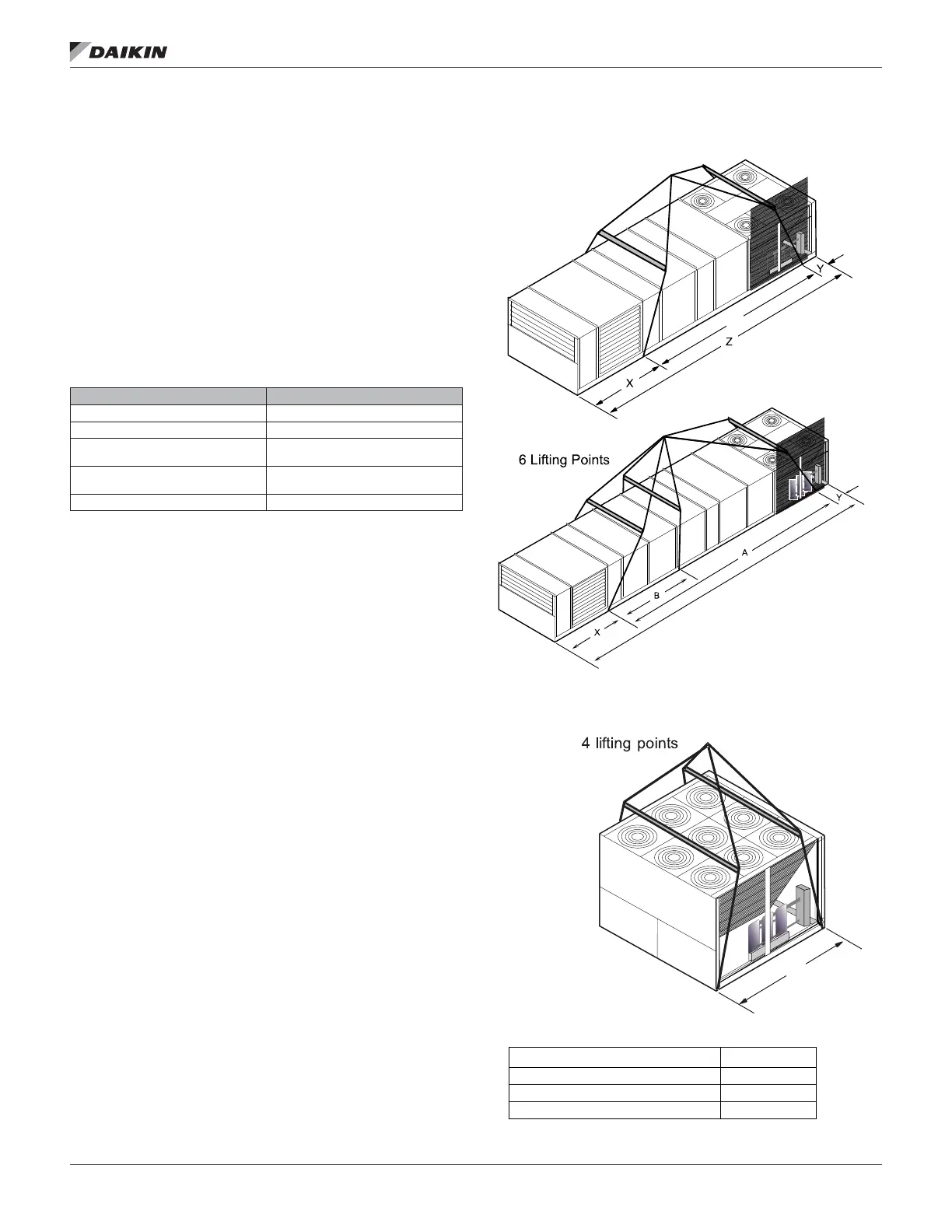

Figure 28: RPS/RDT Lifting Points
Figure 29: RCS or Condenser Factory Split at Condenser
RDT 045D–140D: B Min. = 72” (1829 mm)
RPS 080D–105D: B Min: = 96” (2348 mm)
RPS 110D–140D: B Min: = 120” (3048 mm)
(not required
on 015-042)
4 Lifting Points
A
B
Unit Size B
015, 020, 025 59” (1448mm)
016, 021, 026-080, 085, 090, 100, 105 81” (2362mm)
081, 091, 101, 110-140 115” (2870mm)
