Daikin RMKD112DVM Service Manual

Outdoor Unit Si181180
8 Removal Procedure

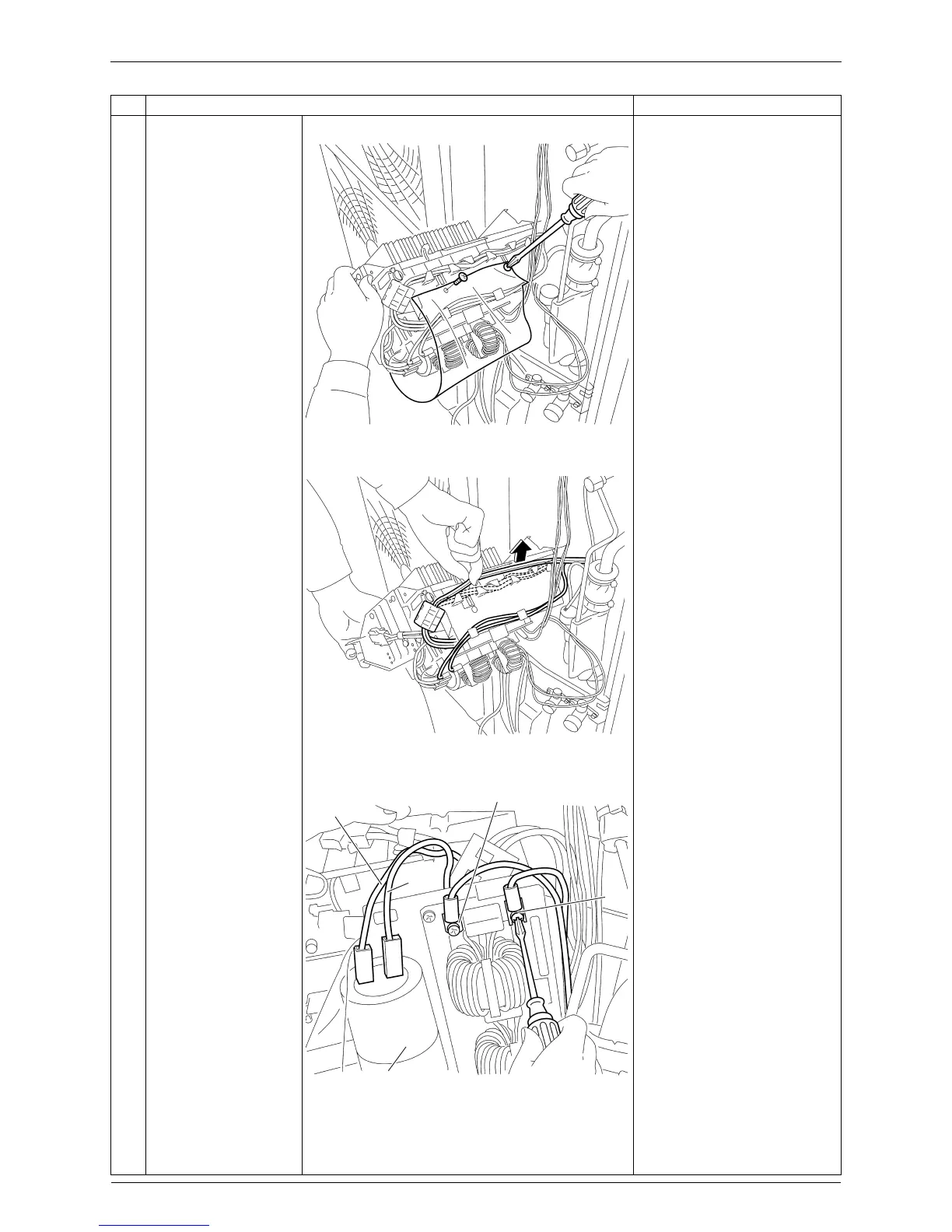

9 Remove the 2 screws
of the insulation sheet
and then release the
compressor lead wires
(blue, red, white) and
the lead wires between
A1P and A3P (red,
blue) from the hooks.
10 Remove the 2 screws
from [LB] (red) and [NB]
(blue) on A3P and
disconnect the 2 lead
wires of condenser
(orange, gray).

M4 × 8 with spring washer
Step
Procedure Points
(R9229)
(R9230)
(R12968)
Condenser (C4)
Orange
[NB]
[LB]
Gray
