5.13 Power Module Check
Check No.22
Note: Check to make sure that the voltage between (+) and (–) of the diode bridge or the power
module is approximately 0 V before checking.
Disconnect the compressor harness connector from the outdoor unit PCB. To disengage the
connector, press the protrusion on the connector.
Follow the procedure below to measure resistance between the (+) or (–) terminal of the
diode bridge or the power module, and the U, V, or W terminal of the compressor with a
multimeter. Evaluate the measurement results referring to the following table.
20/25/35 class
Negative (–) terminal of multimeter
(positive terminal (+) for digital
multimeter)
Diode
bridge (+)
or
Power module
(+)
UVW Diode
bridge (–)
or
Power module
(–)
UVW
Positive (+) terminal of multimeter
(negative terminal (–) for digital
multimeter)
UVW Power module (+)
or
Diode
bridge (+)
UVW Power module
(–)
or
Diode
bridge (–)
Resistance is OK. several kΩ ~ several MΩ
Resistance is NG. 0 Ω or ∞

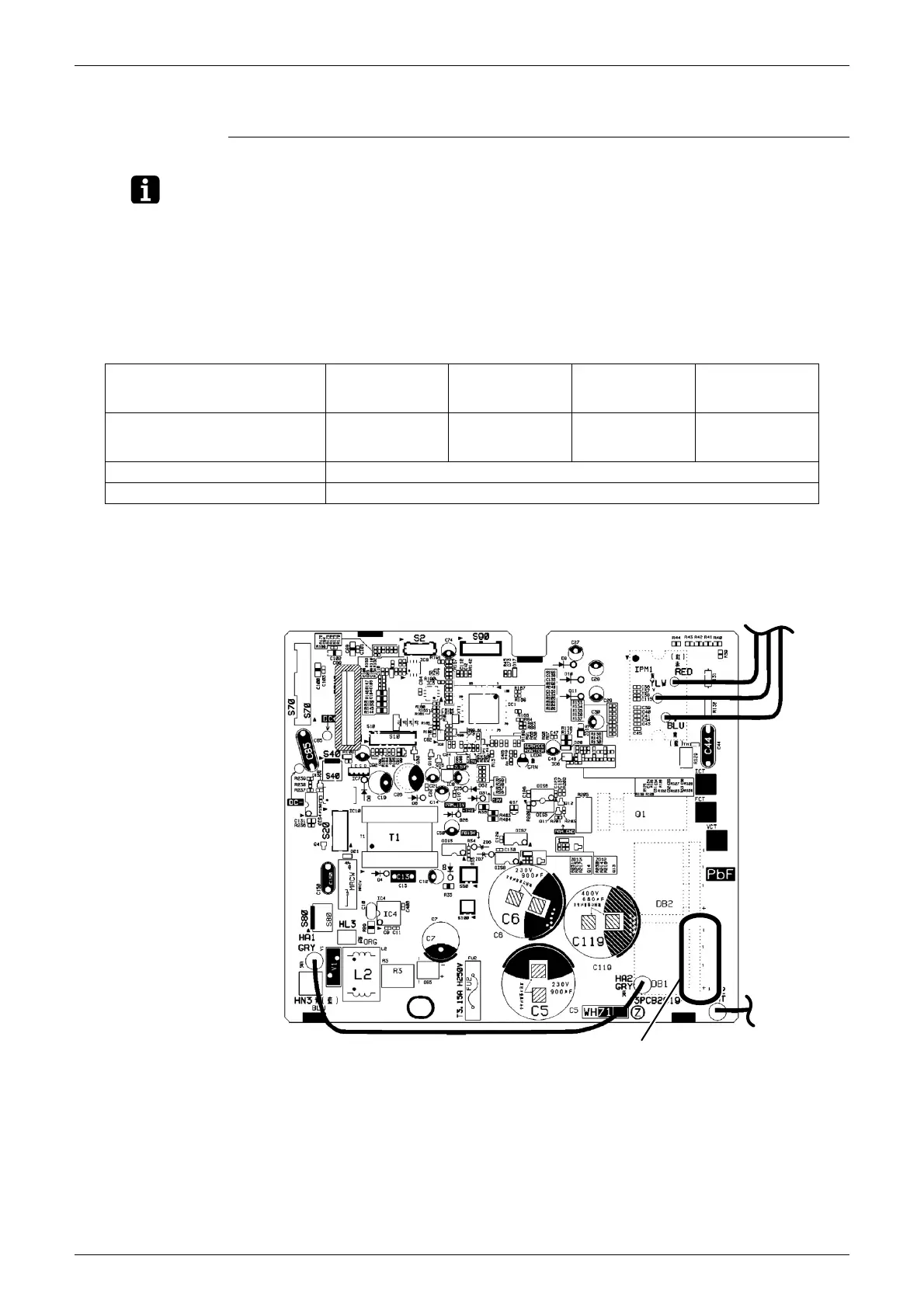

(R19947)
Diode bridge
