Field Settings SiBE041401E
107 Trial Operation and Field Settings

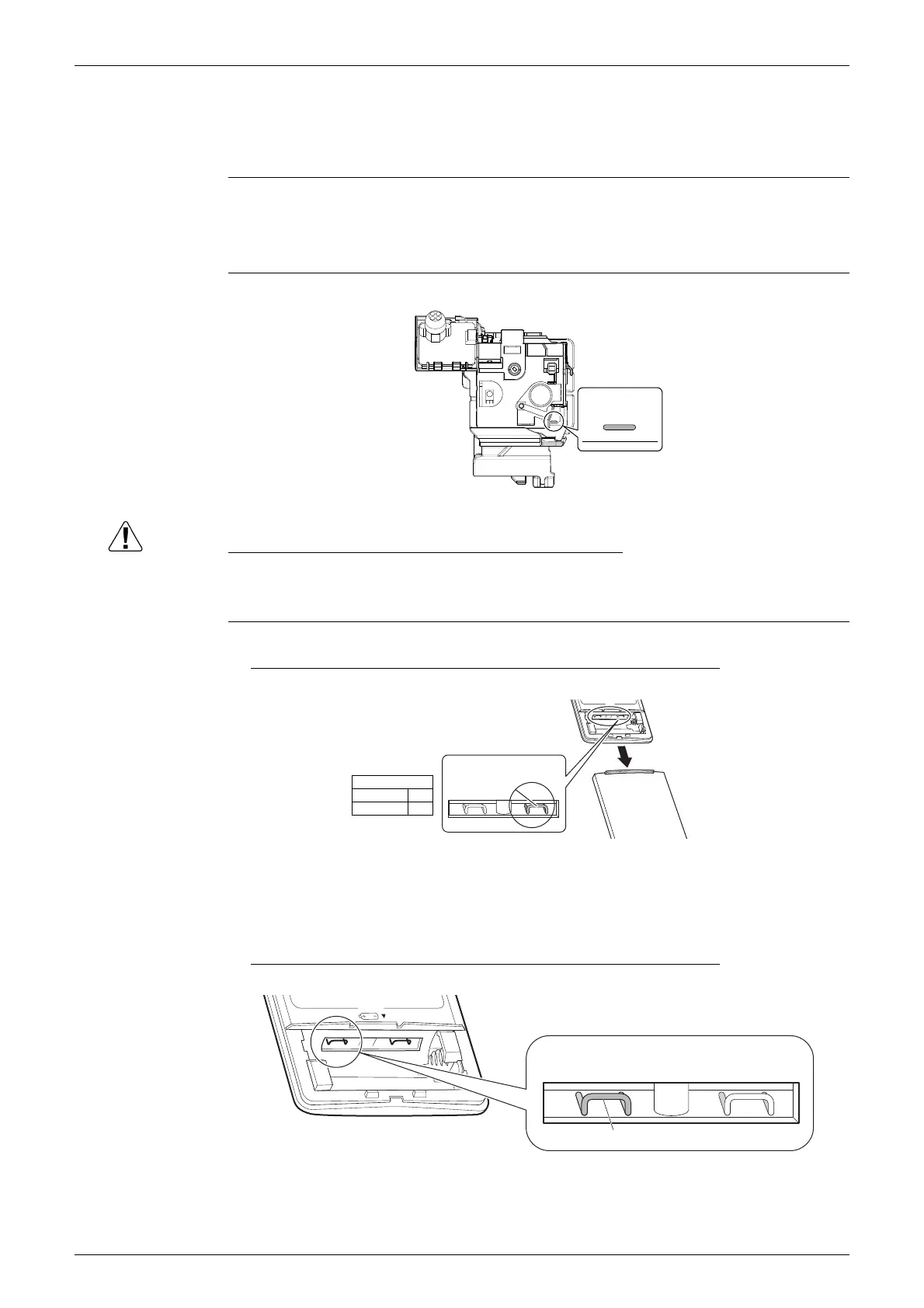

3. Field Settings
3.1 When 2 Units are installed in 1 Room
Outline When 2 indoor units are installed in 1 room, 1 of the 2 indoor units and the corresponding
wireless remote controller can be set for different addresses.
Both the indoor unit PCB and the wireless remote controller need alteration.
Indoor Unit PCB

Cut the address setting jumper JA on the control PCB.
Caution Replace the PCB if you accidentally cut a wrong jumper.
Jumpers are necessary for electronic circuit. Improper operation may occur if you cut any of
them.
Wireless Remote
Controller

Cut the address setting jumper.

Replace the remote controller if you cut the jumper on the left side.
The heating operation will not be available when the jumper on the left side is cut.
3.2 Model Type Setting

This remote controller is common to the heat pump model and cooling only model.

Replace the remote controller if you cut the jumper on the left side.
The heating operation will not be available when the jumper on the left side is cut.
(R19936)
JA
ADDRESS : JA
EXIST : 1
CUT : 2
(R18416)
ADDRESS
EXIST
1
CUT
2
Jumper
∗ Do not cut the left jumper.
Never cut this jumper.
(R18451)
