SiBE041401E Troubleshooting with LED
Service Diagnosis 54
2. Troubleshooting with LED
2.1 Indoor Unit
Operation Lamp The multi-monitor lamp blinks when any of the following errors is detected.
1. When a protection device of the indoor or outdoor unit is activated, or when the thermistor
malfunctions.
2. When a signal transmission error occurs between the indoor and outdoor units.
In either case, conduct the diagnostic procedure described in the following pages.
Service Monitor The indoor unit has one green LED (LED A) on the control PCB. When the microcomputer
works in order, the LED A blinks.
2.2 Outdoor Unit
The outdoor unit has one green LED (LED A) on the PCB. When the microcomputer works in
order, the LED A blinks.
(R19930)

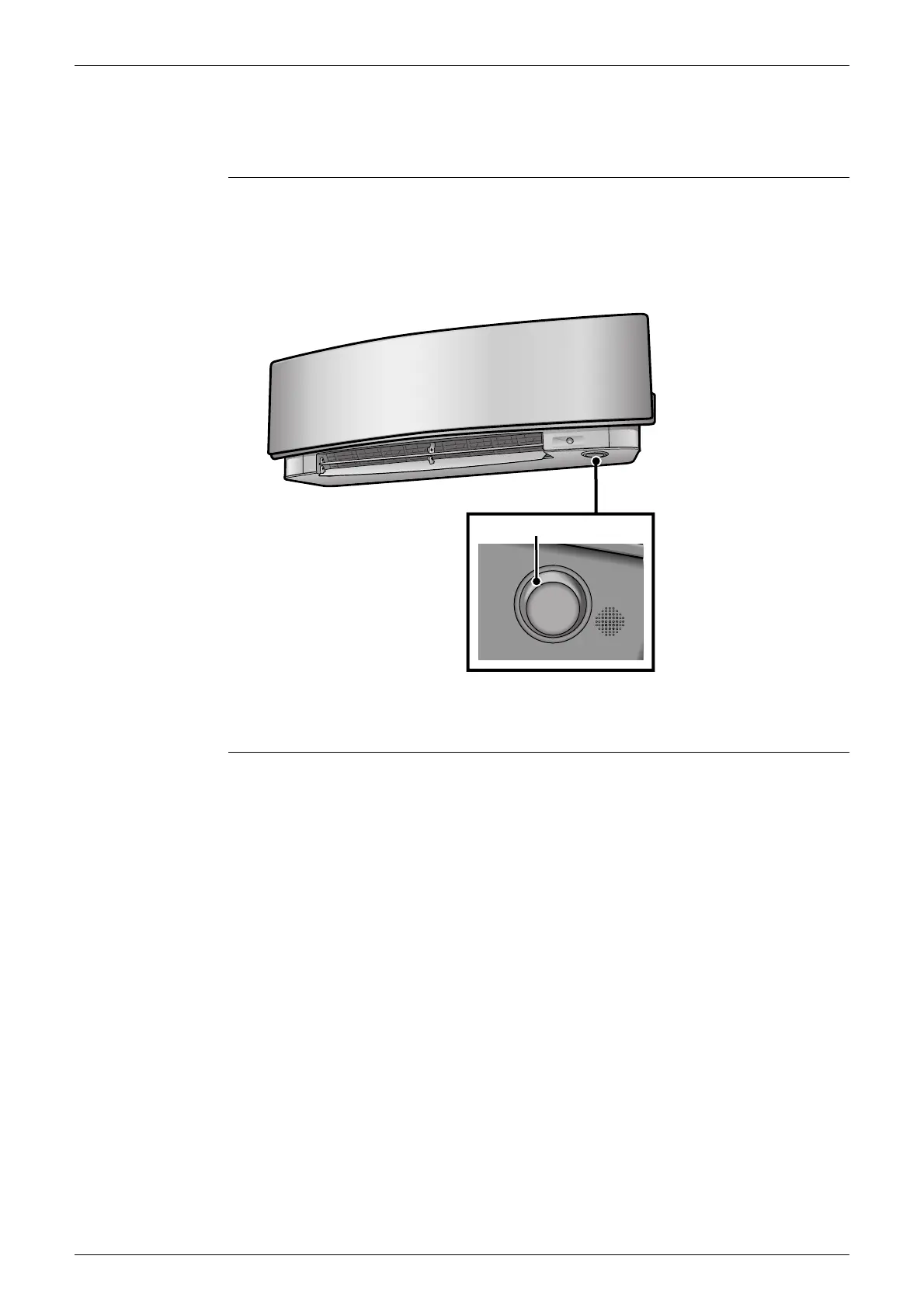

Multi-monitor lamp
