Daikin RXG20L2V1B - Page 126

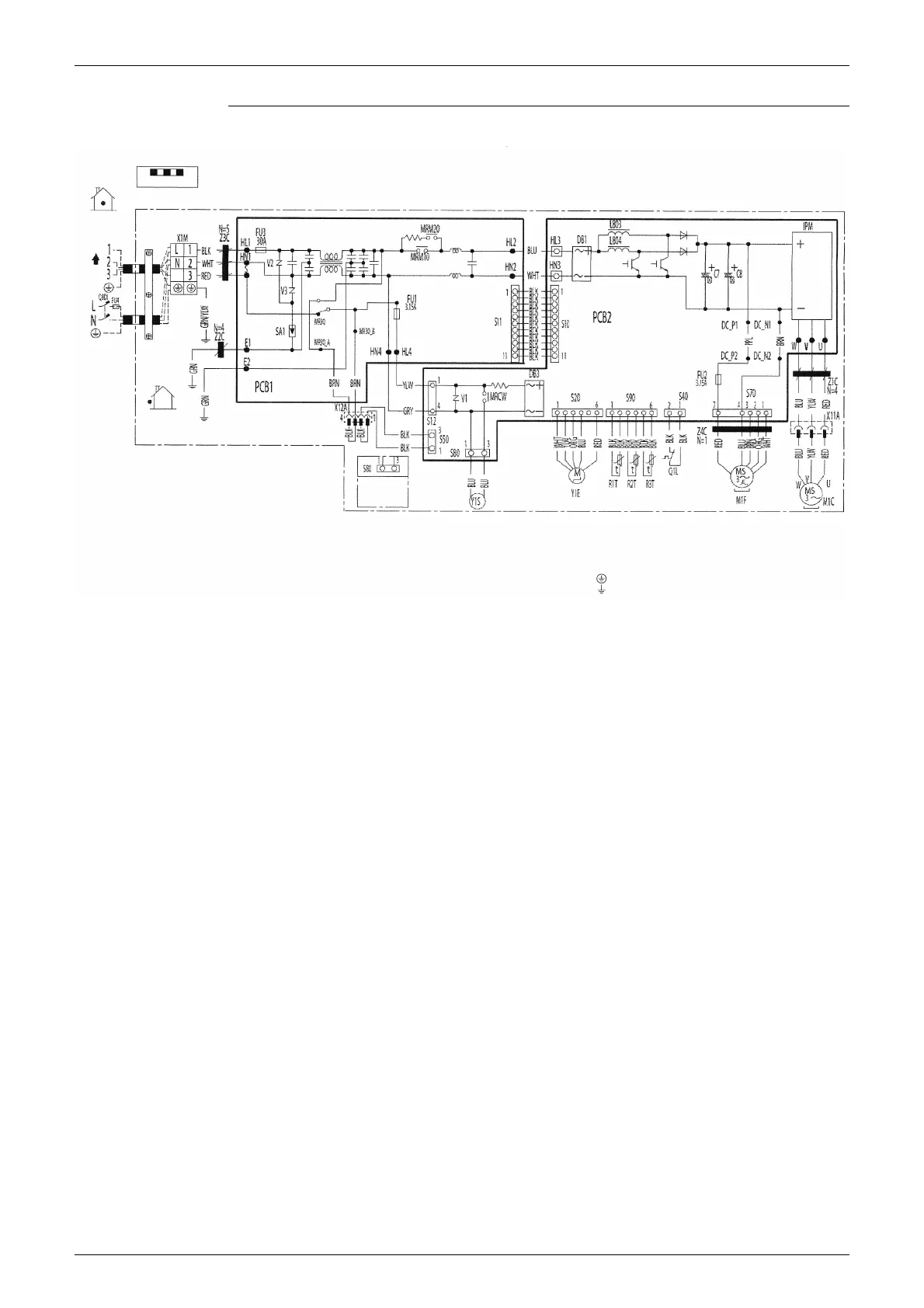

Wiring Diagrams SiBE041401E
115 Appendix
RXG50L2V1B
OUTDOOR
INDOOR
TO INDOOR UNIT
POWER SUPPLY
3D079016A
NOTE
1. REFER TO THE NAMEPLATE FOR THE POWER REQUIREMENTS.
Q1DI
PCB1, PCB2
S10, S11, S12, S20
S40, S50, S70, S80, S90
HL3, HN3, X11A, X12A
R1T, R2T, R3T
SA1
: EARTH LEAK DETECTOR
: PRINTED CIRCUIT BOARD
: CONNECTOR
: THERMISTOR
: SURGE ABSORBER
(OUTDOOR) (DISCHARGE)
(CONDENSER)
: VARISTOR
: TERMINAL STRIP
: ELECTRONIC EXPANSION VALVE COIL
: REVERSING SOLENOID VALVE COIL
: FERRITE CORE
: PROTECTIVE EARTH
: EARTH
C7, C8
DB1, DB3
FU1, FU2, FU3
FU4
IPM
L
L803, L804
M1C
M1F
MRCW, MRM10, MRM20, MR30
MR30_A, MR30_B
N
Q1L
: CAPACITOR
: DIODE BRIDGE
: FUSE
: FIELD FUSE
:
INTELLIGENT POWER MODULE
: LIVE
: REACTOR
: COMPRESSOR MOTOR
: FAN MOTOR
: MAGNETIC RELAY
: NEUTRAL
: OVERLOAD PROTECTOR
V1, V2, V3
X1M
Y1E
Y1S
Z1C, Z2C, Z3C, Z4C
IN CASE OF
COOLING ONLY
TYPE
FIELD WIRING.
