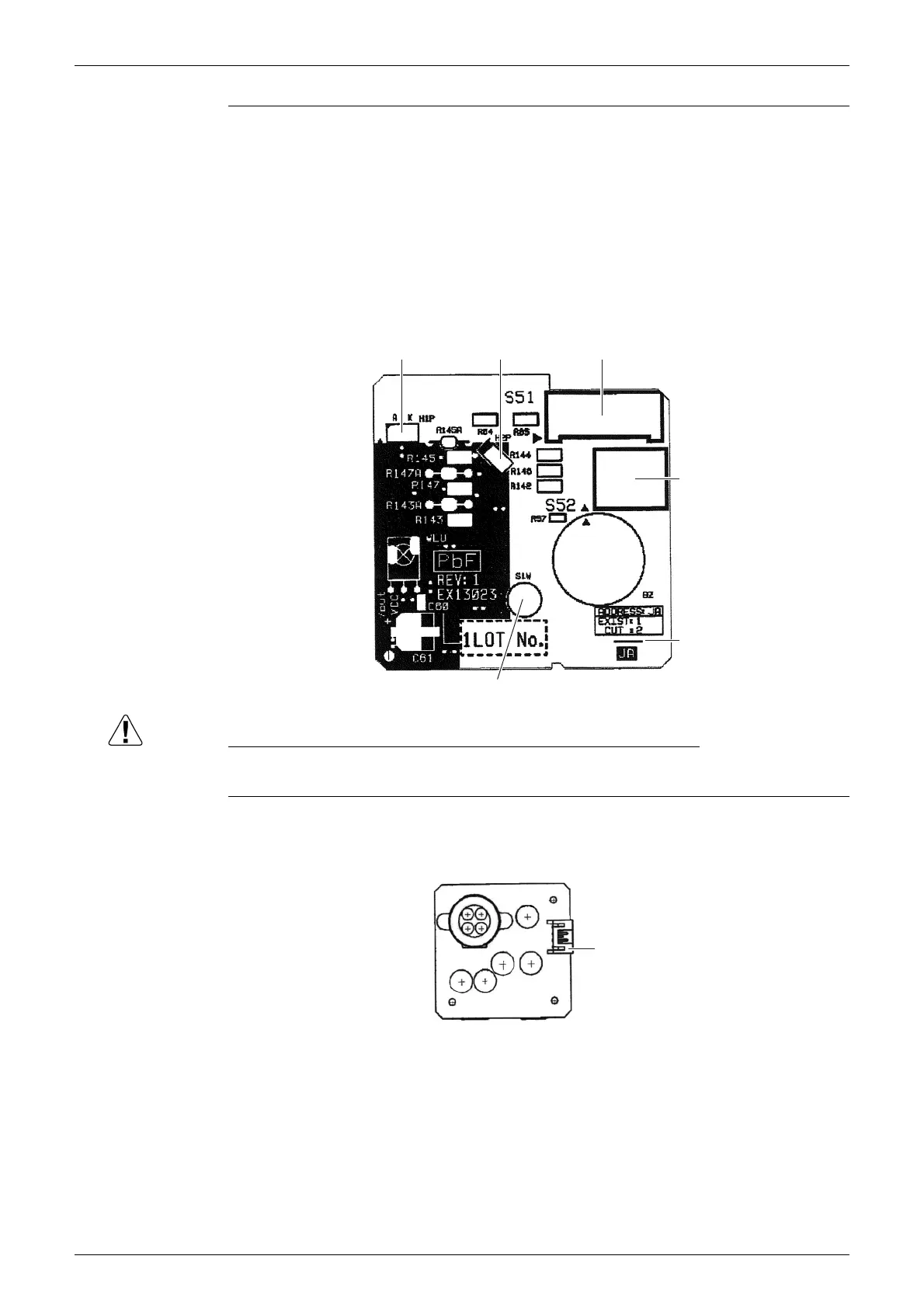

Printed Circuit Board Connector Wiring Diagram 10
Signal Receiver /
Display PCB
(A2P)
Caution Replace the PCB if you accidentally cut the jumpers other than JA.
Jumpers are necessary for electronic circuit. Improper operation may occur if you cut any of
them.
INTELLIGENT
EYE Sensor PCB
(A3P)
1) S51 Connector for control PCB
2) S52 Connector for room temperature thermistor
3) S1W Forced cooling operation ON/OFF button
∗
Refer to page 104 for detail.
4) H1P LED for operation (multi-color)
5) H2P LED for INTELLIGENT EYE (green)
6) JA Address setting jumper
∗
Refer to page 107 for detail.
S52
S51
S1W
JA
H2P
H1P
3P357402-1
1) S36 Connector for control PCB
S36
3E860004-1
