Daikin RXR28EV1B9 - Remove Humidifying Fan Assembly and Thermistor; Remove Damper Assembly

Removal of Humidifying Fan Assembly Si00-777
10 Removal Procedure
4
Remove the
humidifying fan
assembly.

The humidifying fan
assembly should be
replaced as an assembly
set. (Disassembling of the
assembly can cause a
noise.)
5
Peel the seal material
and pull out the
humidifying thermistor.

Inside of the upper part of
the humidifying fan
assembly
2. Remove the damper
assembly.
1
Remove the 3 screws.
Step Procedure Points

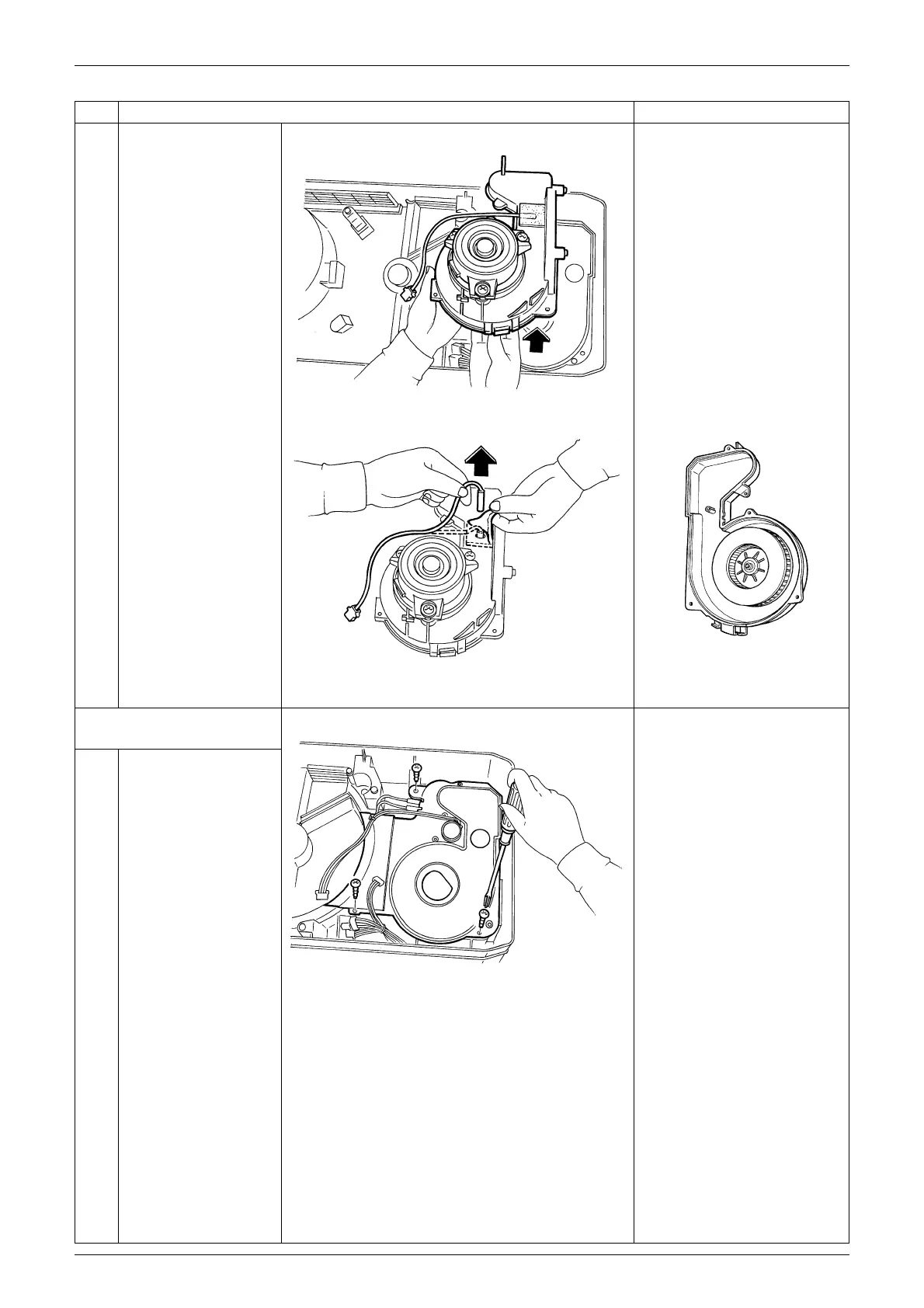

(R5813)
(R5814)
(R5815)
(R5816)
