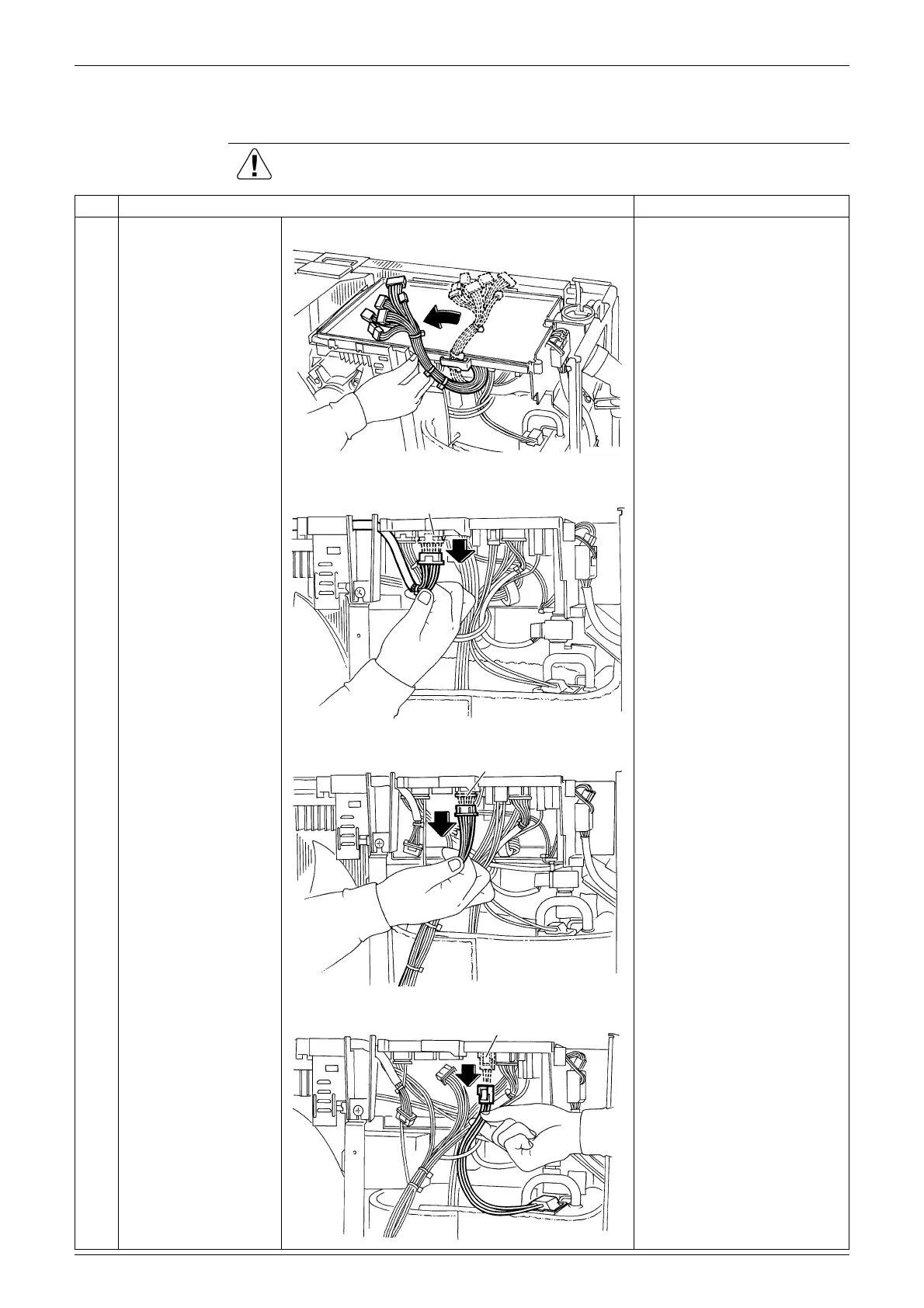

Removal of Electrical Box Si00-777
18 Removal Procedure
7. Removal of Electrical Box
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1
Release the harnesses
for the humidifier unit
from the hook.
Preparation

Remove the front panel
according to "Removal of
Outdoor Fan / Fan Motor".
2
Disconnect the
connector for the fan
motor [S70].
3
Disconnect the
connector for the
humidifier fan motor
[S72].
4
Disconnect the
connector for the four
way valve coil [S80].
(R14005)
(R14006)
[S70]
[S72]
(R14008)
[S80]
(R14007)
