Si00-777 Removal of Reactor / Partition Plate
Removal Procedure 29

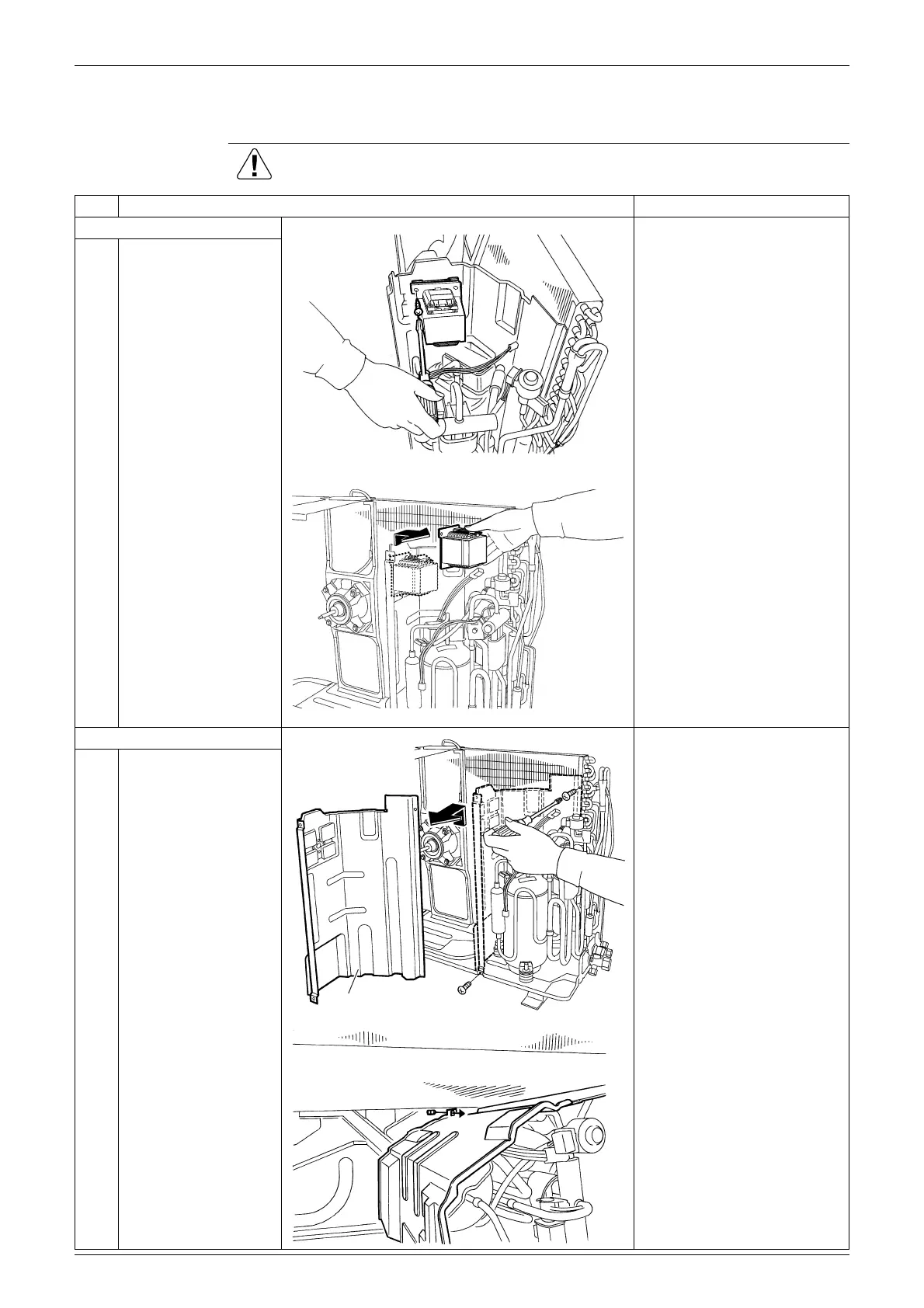

11.Removal of Reactor / Partition Plate
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Remove the reactor. Preparation

Remove the sound blankets
according to "Removal of
Sound Blankets".
1
Remove the screw and
remove the reactor.
2. Remove the partition plate.
1
Remove the 2 screws.
2
Lift the partition plate
and remove it.

When reassembling, make
sure to catch the lower hook
of the partition plate.
(R14056)
(R14057)
(R14025)
Partition plate
(R5884)
