Daikin RXR28EV1B9 - Removal of Humidifying Duct

Si00-777 Removal of Humidifying Duct
Removal Procedure 17

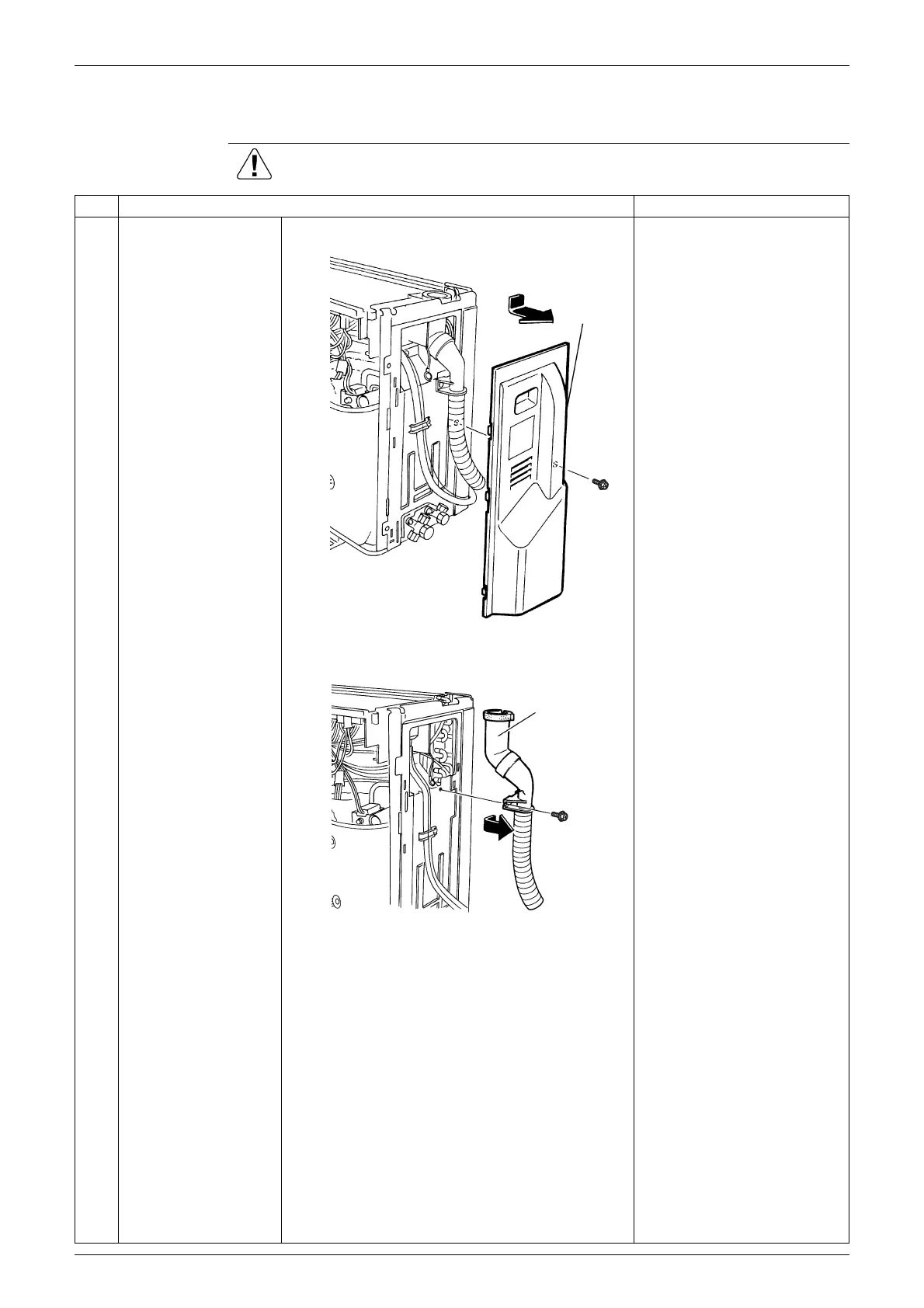

6. Removal of Humidifying Duct
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1
Remove the screw and
remove the stop valve
cover.
2
Remove the screw and
remove the humidifying
duct.

When reassembling, make
sure to catch the hook.
(R14003)
Stop valve
cover
(R14004)
Humidifying duct
