Daikin RXR28EV1B9 - Removal of Humidifier Unit

Removal of Humidifier Unit Si00-777
2 Removal Procedure
1. Removal of Humidifier Unit
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points

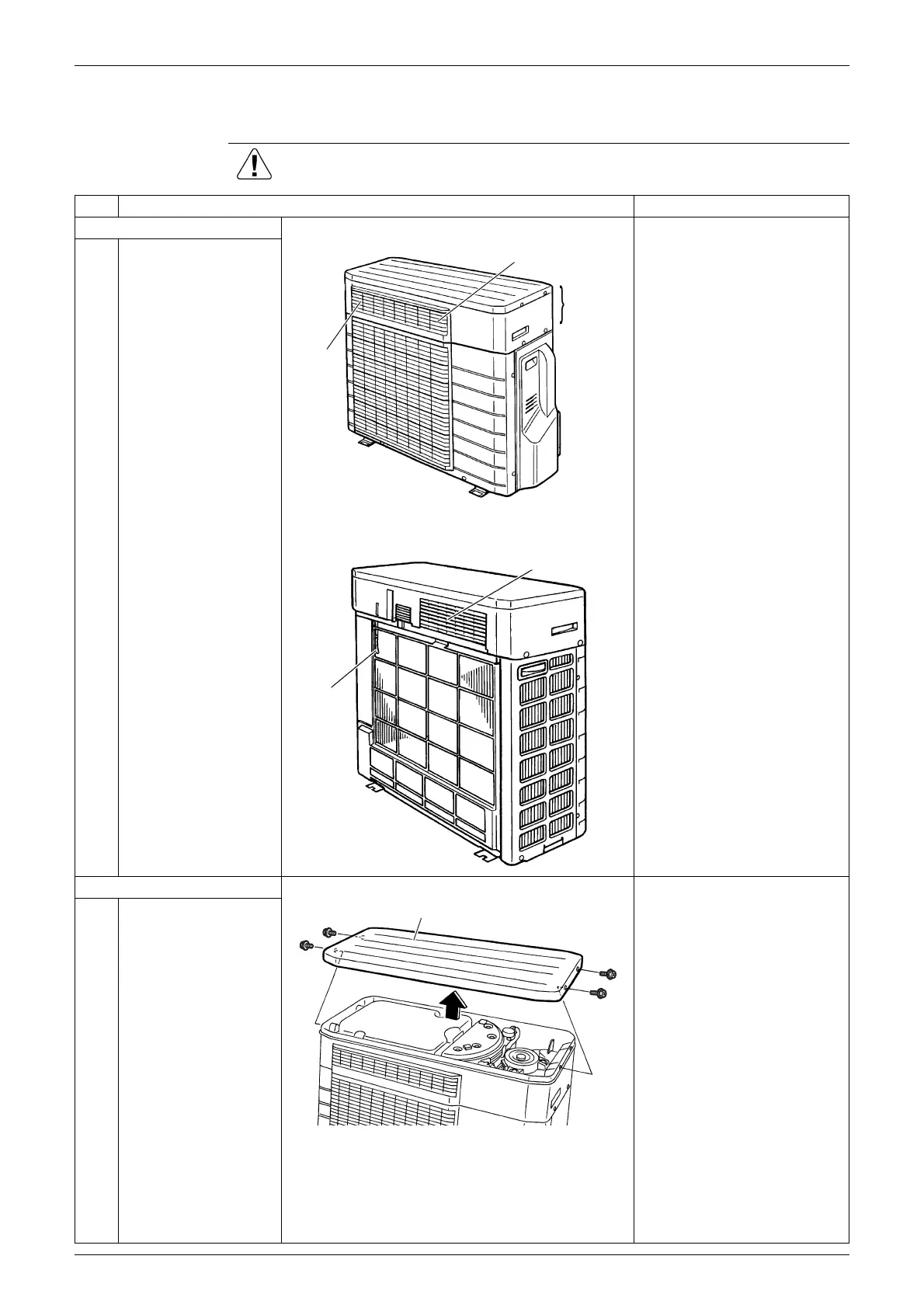

1. External appearance
2. Remove the top panel.
1
Remove the 4 screws
and remove the top
panel.
Humidifier unit air inlet (1)
Humidifier
unit
Humidifier
unit air
outlet
(R13980)
(R13981)
Humidifier unit air inlet (2)
Outdoor
temperature
thermistor
(R13982)
Top panel
