Daikin RXR28EV1B9 - Thermistor Assembly Removal; Remove Outdoor Temperature Thermistor

Si00-777 Removal of Thermistor Assembly
Removal Procedure 27
10.Removal of Thermistor Assembly
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1

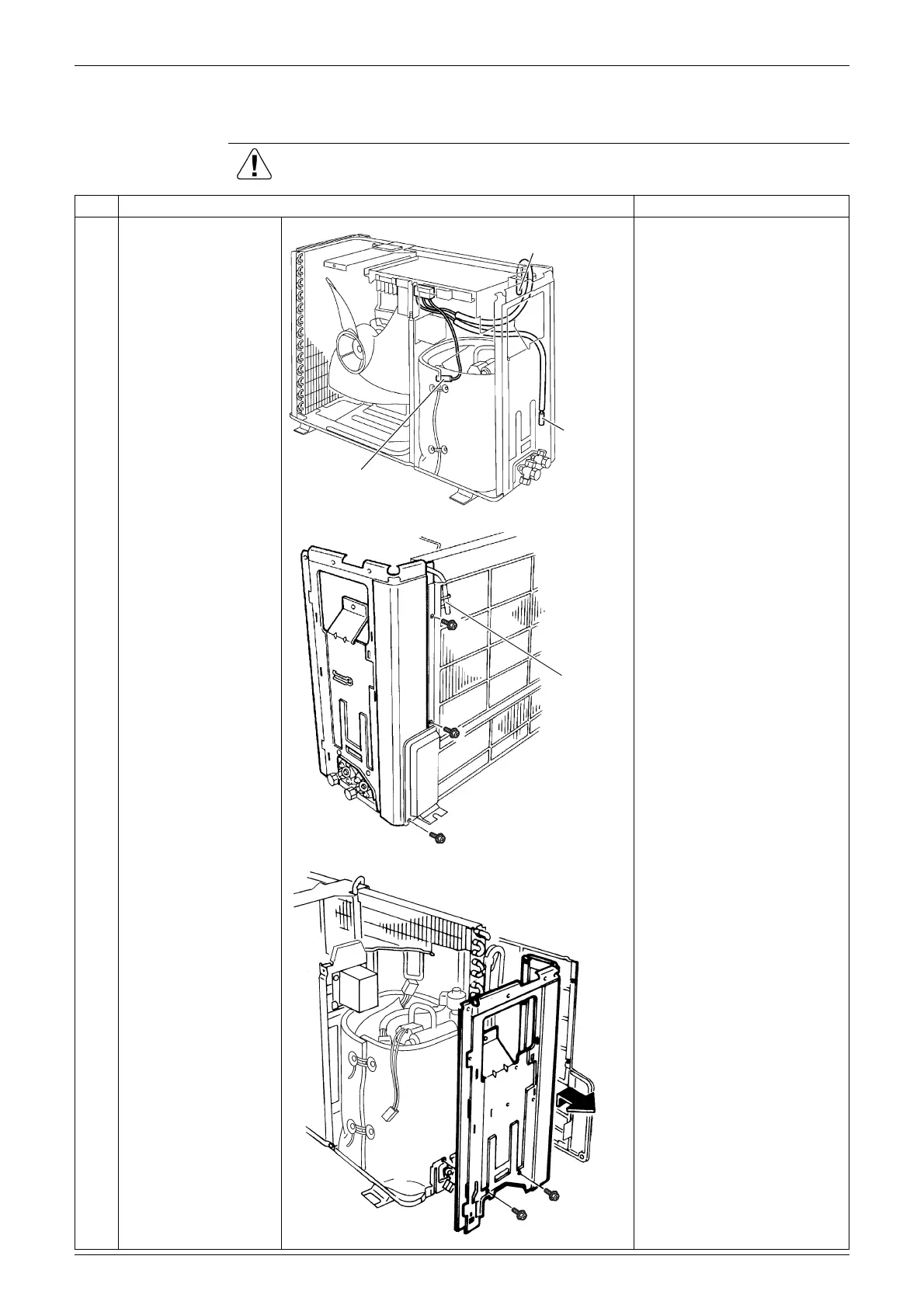

The figure shows the
arrangement of the
thermistor assembly.
Preparation

Remove the electrical box
according to "Removal of
Electrical Box".
2
Remove the 3 screws
on the back side of the
right side panel and
detach the outdoor
temperature thermistor.
3
Remove the 2 screws.
4
Lift the right side panel
to unfasten the 2 hooks
and remove it.
Outdoor temperature thermistor
Discharge pipe
thermistor
Outdoor
heat
exchanger
thermistor
(R5877)
(R14024)
Outdoor
temperature
thermistor
(R14019)
