Removal of Sound Blankets Si00-777
26 Removal Procedure
2
Untie the strings and
open the sound blanket
(outer).
3
Pull the sound blanket
(outer) out.

Since the piping ports on
the sound blanket are torn
easily, remove the blanket
carefully.
4
Open the sound
blanket (inner) and pull
it out.
5
Pull the sound blanket
(bottom) out.

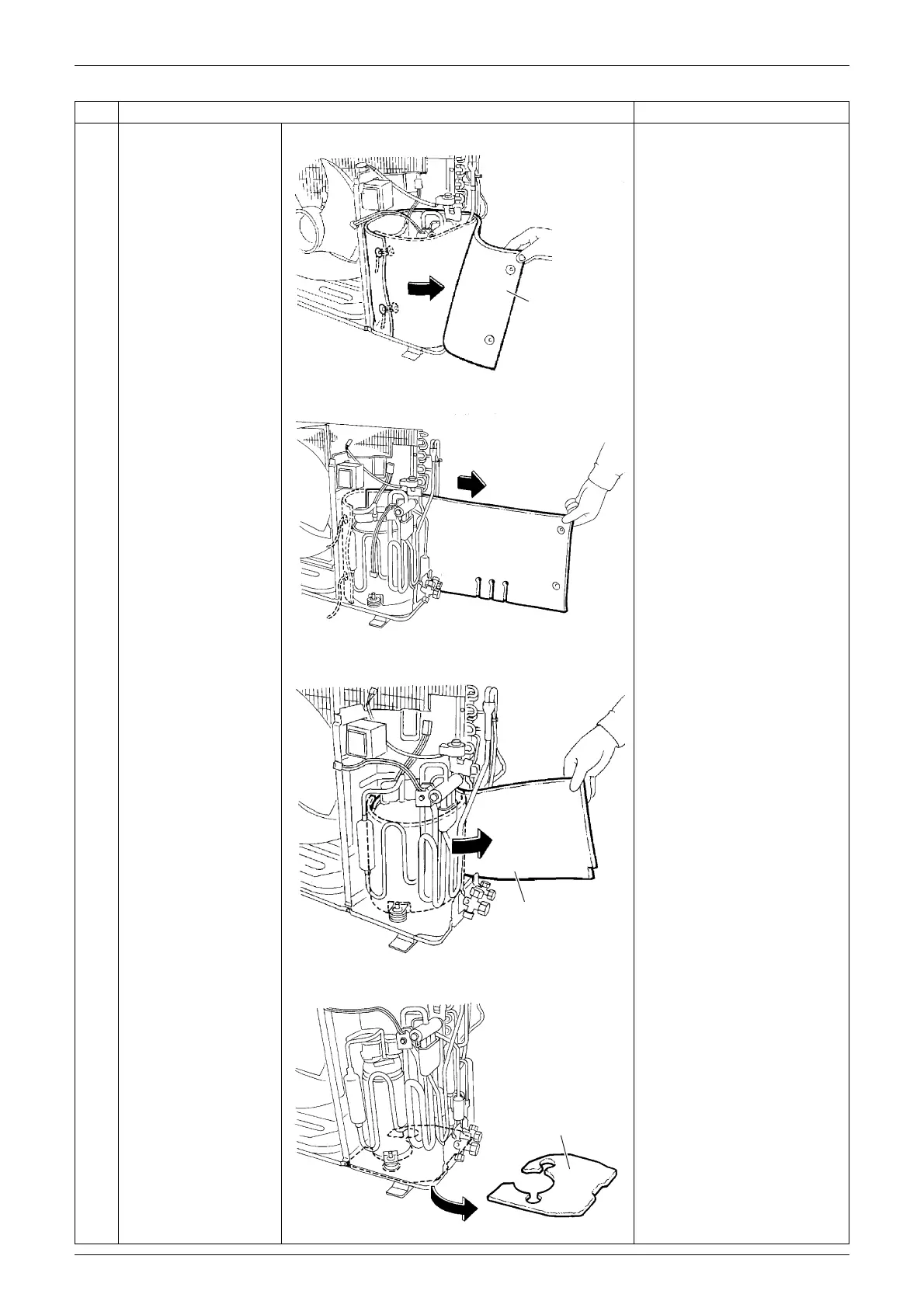

Step Procedure Points
(R14023)
Sound blanket
(outer)
(R14020)
(R14021)
Sound blanket
(inner)
(R14022)
Sound blanket
(bottom)
