Daikin RXR28EV1B9 - Removal of Sound Blankets

Si00-777 Removal of Sound Blankets
Removal Procedure 25
9. Removal of Sound Blankets
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points

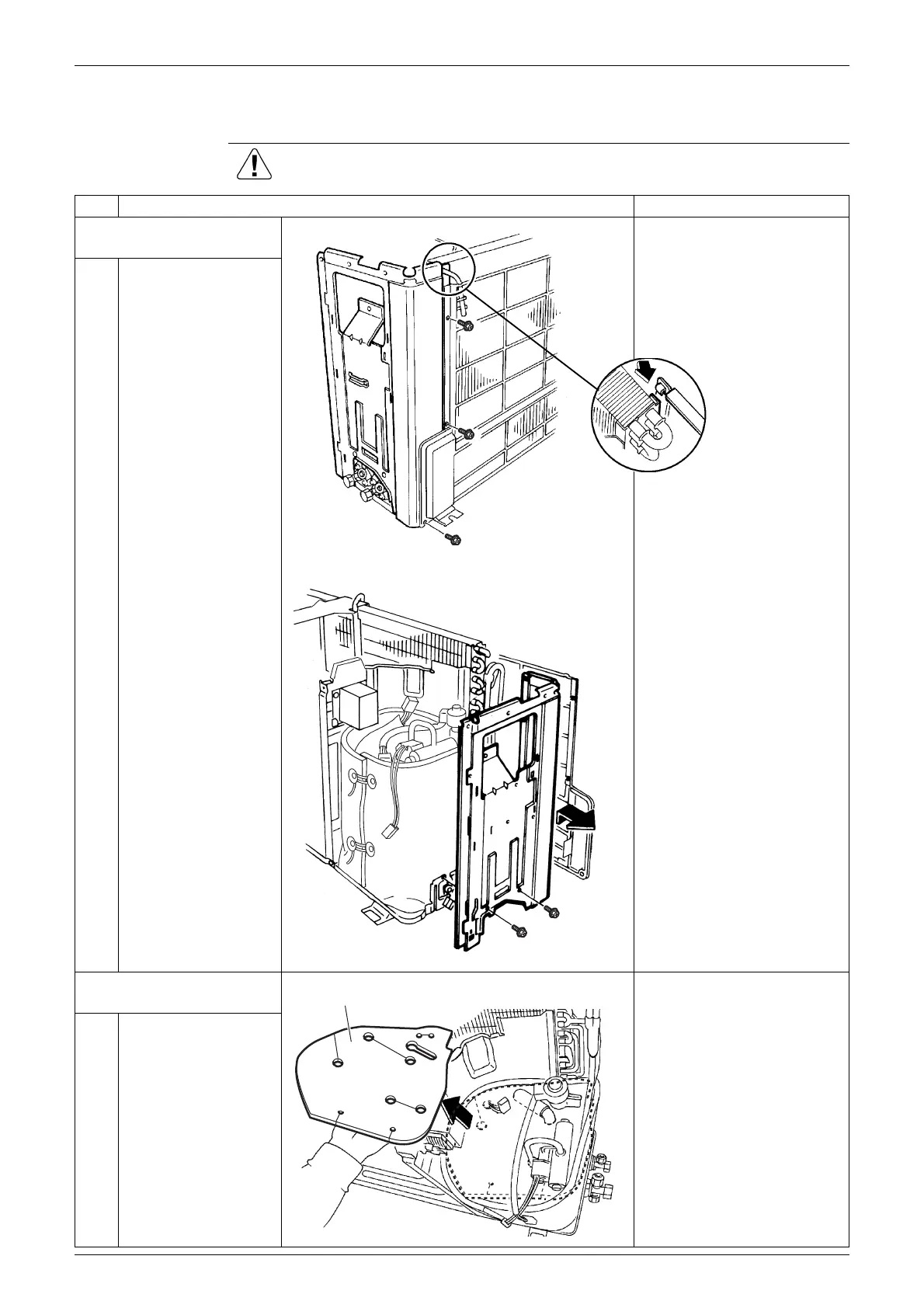

1. Remove the right side
panel.
Preparation

Remove the electrical box
according to "Removal of
Electrical Box".
1
Remove the 3 screws
on the back side of the
right side panel.
2
Remove the 2 screws.
3
Lift the right side panel
to unfasten the 2 hooks
and remove it.
2. Remove the sound
blankets.

Since the piping ports on
the sound blanket are torn
easily, remove the blanket
carefully.
1
Remove the sound
blanket (top).
(R14018)
(R14019)
(R14055)
Sound blanket (top)
