Si00-777 Removal of Humidifier Unit
Removal Procedure 3
3. Remove the humidifier
unit.

Be sure to wait for 10
minutes or more after
turning off the power supply
before disconnecting the
connectors.
1

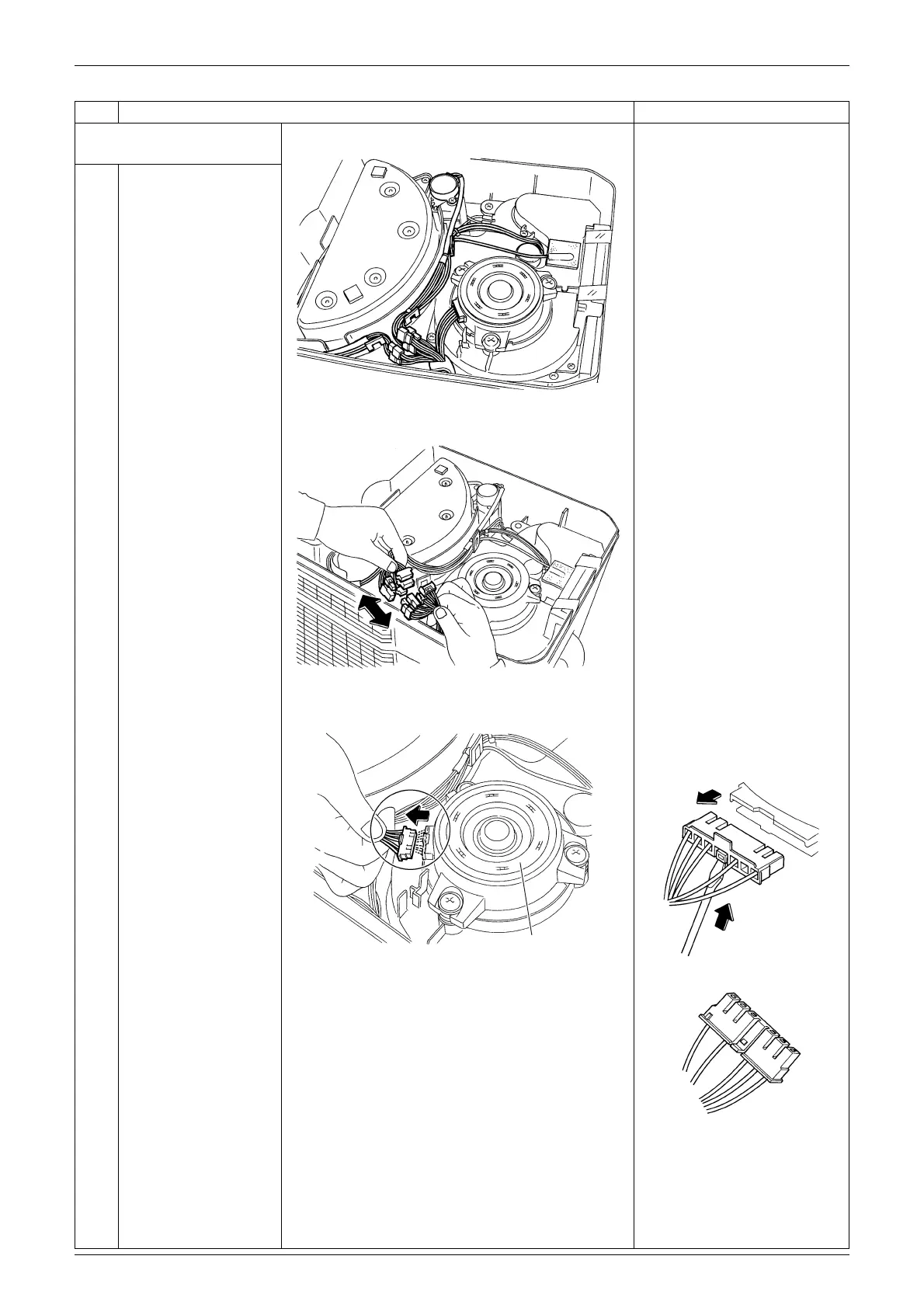

The figure shows the
arrangement of the
relay harnesses.
2
Disconnect the 5 relay
connectors.
3
Disconnect the
connector for the
humidifier fan motor.

Pull out the connector while
pushing up the hook on the
bottom side.
Step Procedure Points
(R5791)
(R5792)
(R13983)
Humidifier fan motor
<From the back side>
(R5796)
