Daikin RXR28EV1B9 - Disconnect Relay Harness and Remove Terminal Board

Removal of Electrical Box Si00-777

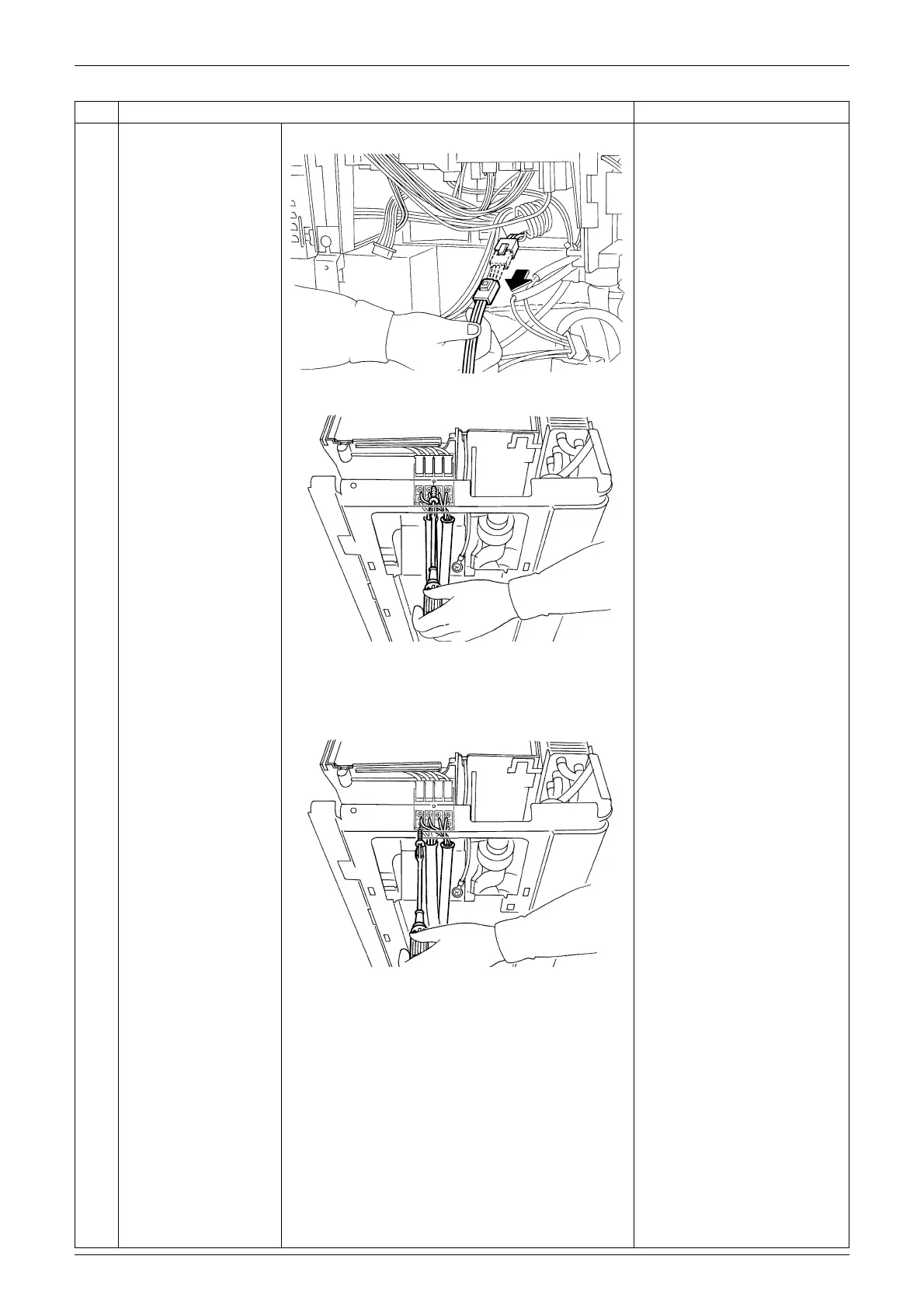

20 Removal Procedure
9
Disconnect the relay
harness for the
compressor.
10
Remove the screw of
the terminal board.

Thermal fuse should be
replaced with the terminal
board.

You can work without
removing the terminal
board.
11
Remove the screws
and disconnect the
connecting wires and
the power supply
cables.
Step Procedure Points
(R14010)
(R14052)
(R14054)
