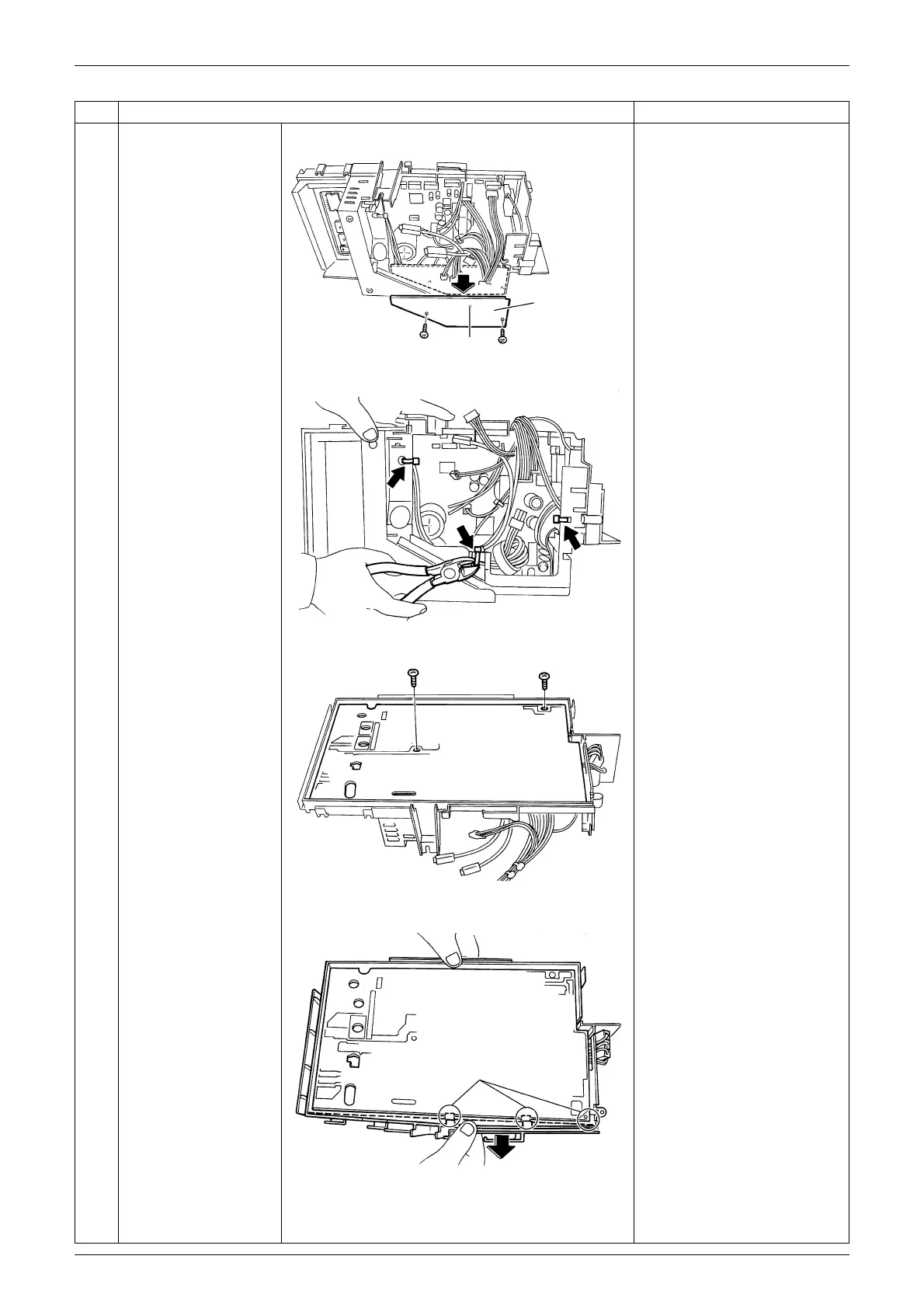

Daikin RXR28EV1B9 - Remove Radiation Shield Plate and Clips

Si00-777 Removal of PCB
Removal Procedure 23
3
Remove the 2 screws
and detach the clip to
remove the radiation
shield plate.
4
Cut the 3 clamps.
5
Remove the 2 screws.
6
Unfasten the 3 hooks
of the electrical box.
Step Procedure Points
Clip
Radiation shield
plate
(R14016)
(R5864)
(R5865)
Hook
(R14017)
