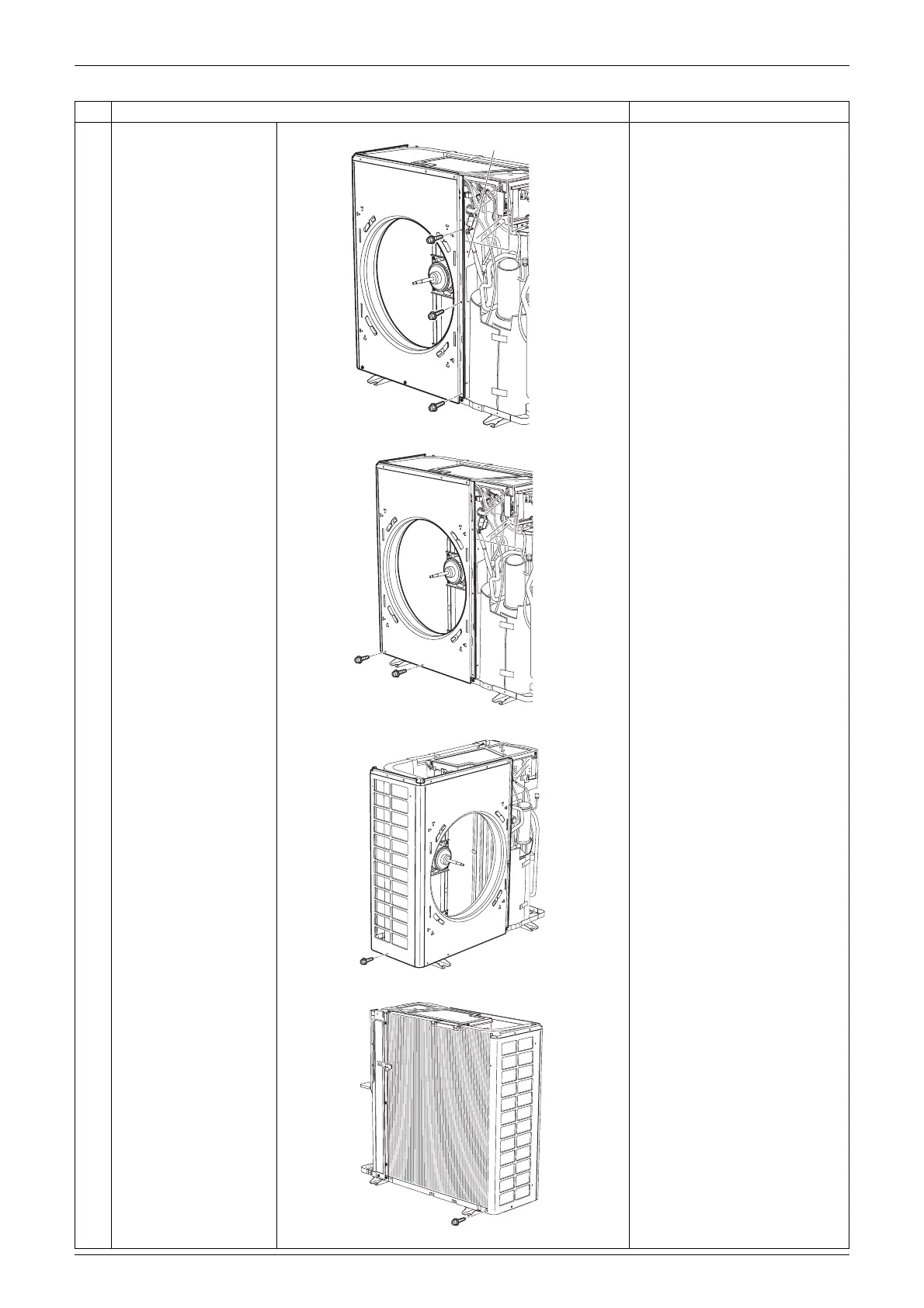

Removal of Outer Panels (Pattern 1) Si001169
6 Removal Procedure
4
Remove the 3 screws
on the partition plate
(1).
5
Remove the 2 screws
at the bottom of the
front.
6
Remove the screw at
the bottom of the left
side.
7
Remove the screw at
the bottom of the back
side.
Step Procedure Points
Partition plate (1)
(R16629)
(R16630)
(R9601)
(R9602)
