Si001169 Removal of Outer Panels (Pattern 1)
Removal Procedure 7
8

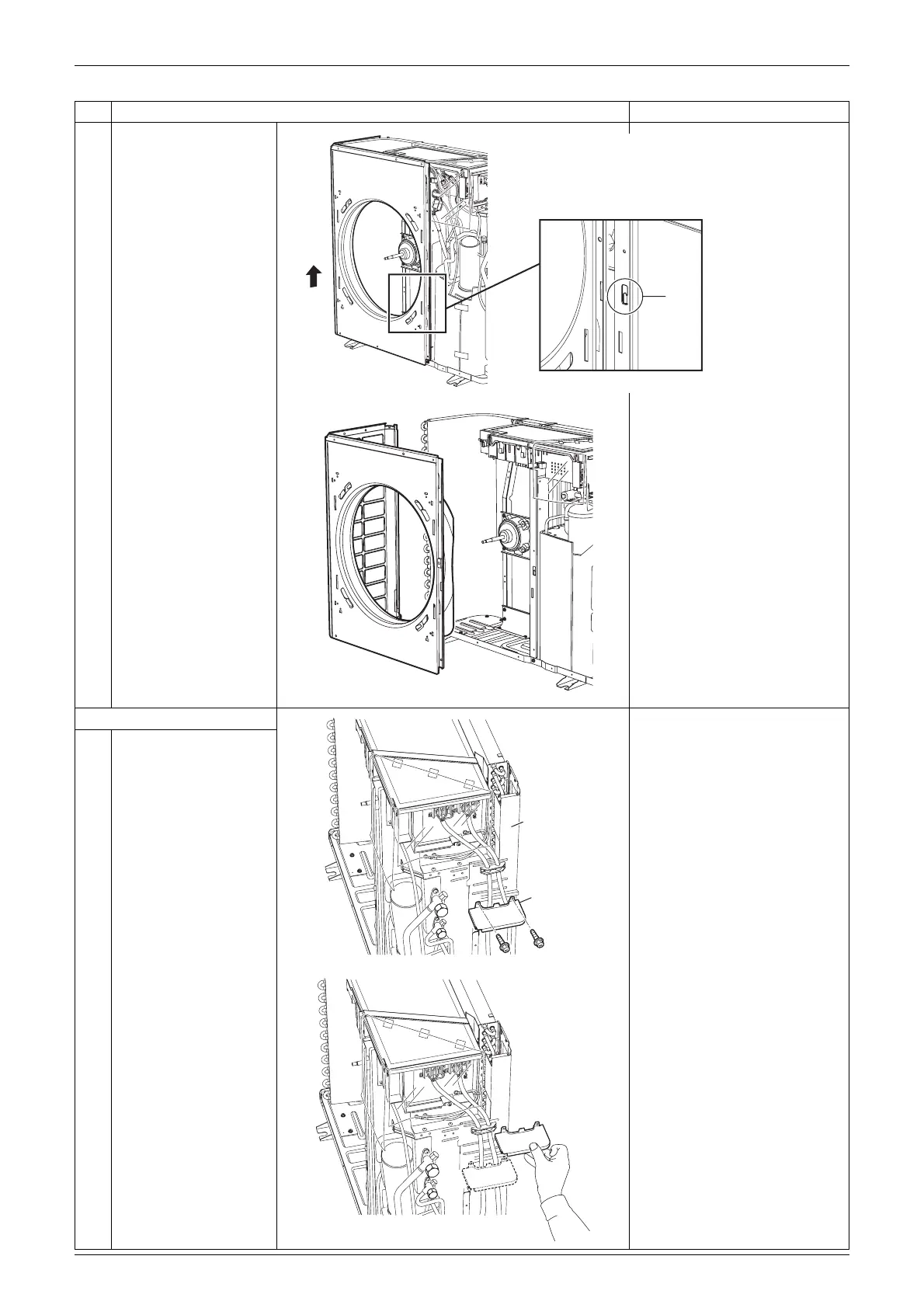

The front panel (1) has
a hook on its front. Lift
the front panel (1).
9
Remove the front panel
(1).
7. Remove the rear panel.
1
Remove the 2 screws
on the partition plate
(2).
2
Lift up slightly and
remove the partition
plate (2).
Step Procedure Points
Hook
(R16631)
(R9604)
Rear panel
Partition
plate (2)
(R16720)
(R16721)
