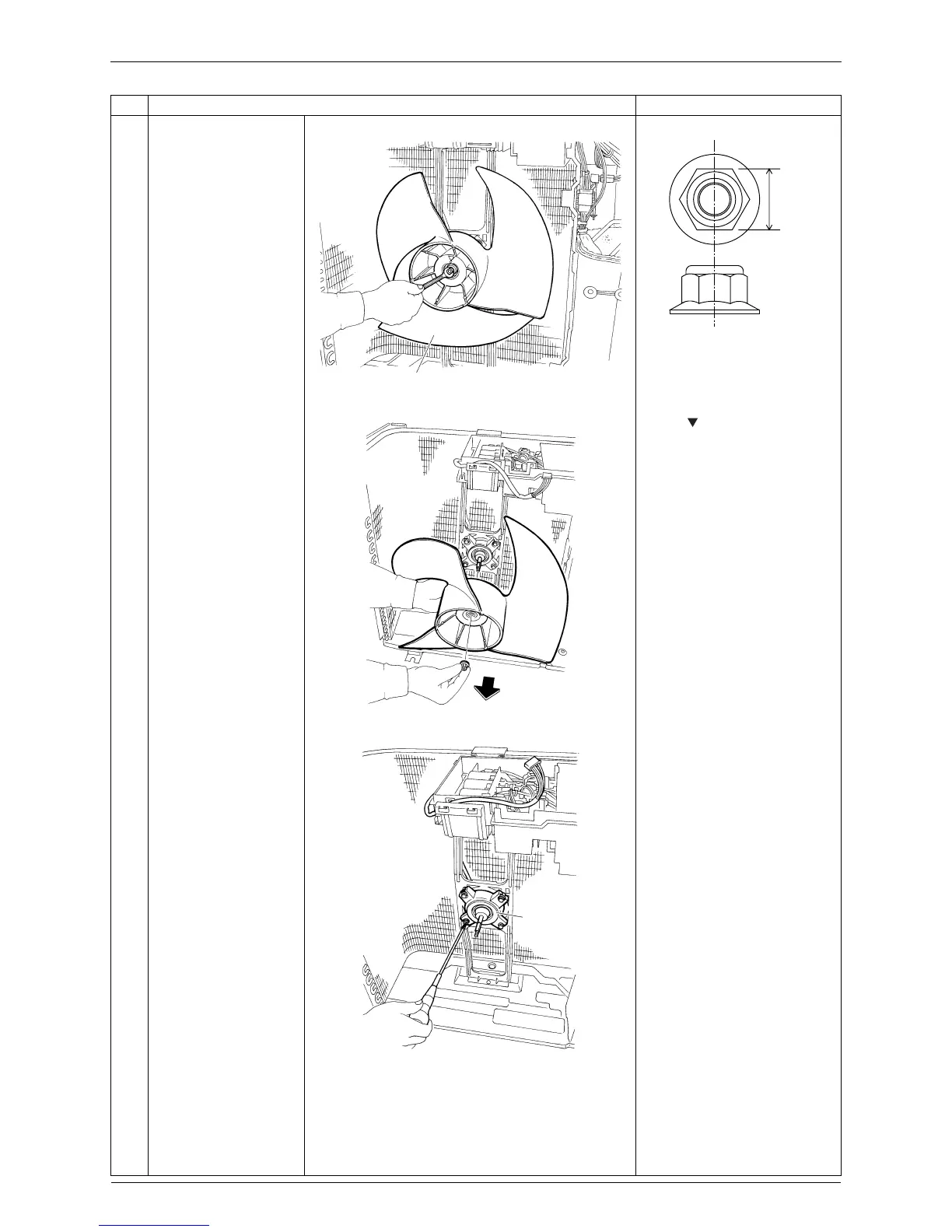

Removal of Outdoor Fan / Fan Motor Si00-876
8 Removal Procedure
3
Remove the nut of the
outdoor fan.
Nut size: M6
When reassembling, align
the mark of the outdoor
fan with the D-cut section of
the motor shaft.
4
Remove the 2 lower
screws from the fan
motor first.
Be sure to remove the lower
screws first. If the top
screws are removed first,
the fan motor may tilt down
or fall and cause injury
because its center of gravity
is shifted to the front.
5
Then, remove the 2
upper screws.
Step Procedure Points
Outdoor fan
(R2694)
10 mm
(R12236)
(R2695)
Fan motor
(R2696)
To Next Page
