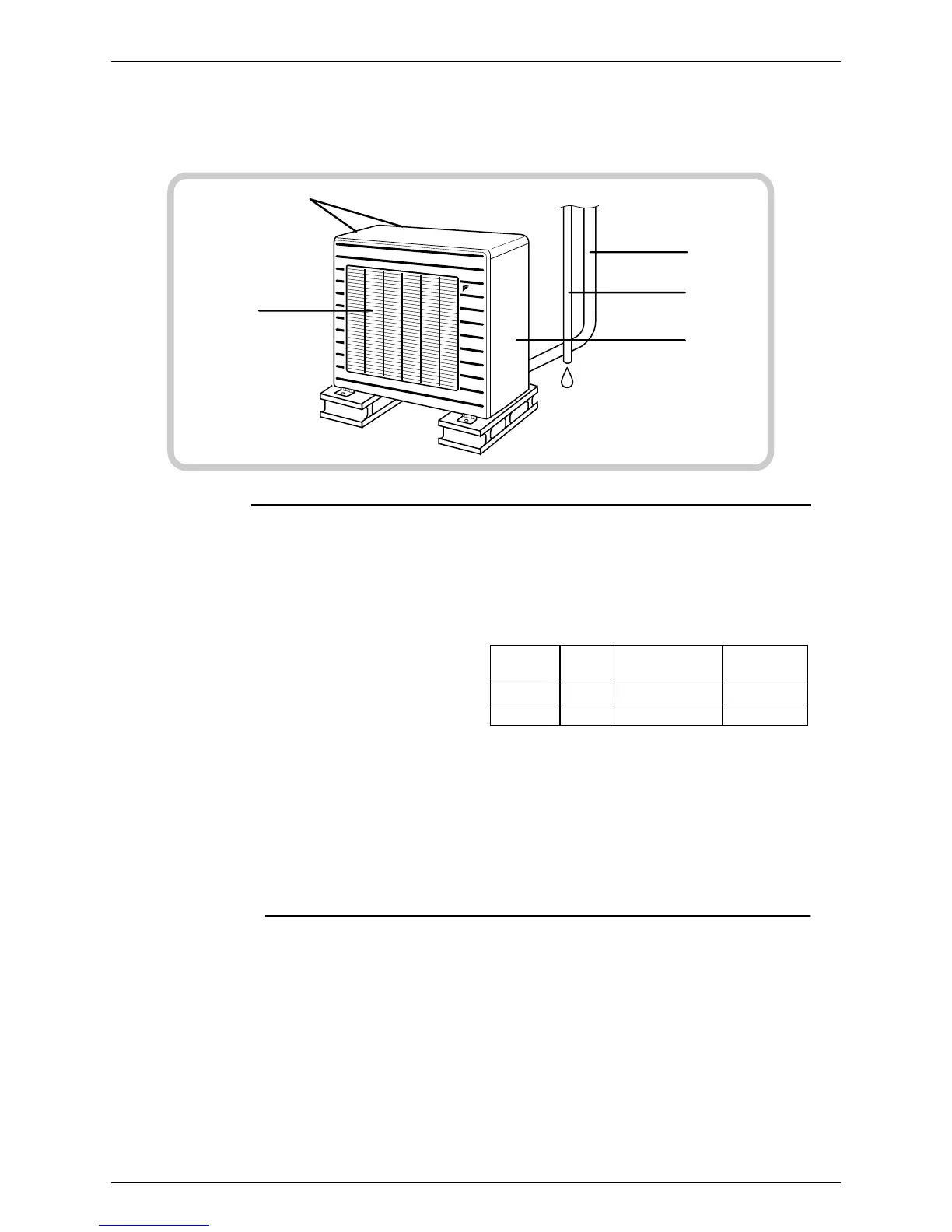

Si12-308 Instruction
System Configuration 123
Outdoor Unit
Indoor Unit
1.
Air outlet
2. Air outlet grille
(Field supply)
Appearance of the Air outlet grille and Air inlet
grille may differ with some models.
3. Display, Control panel
4. Suction grille
(Option)
Appearance of the suction grille and Air inlet
grille may differ with some models.
5. Air inlet
6. Room temperature sensor:
It senses the air temperature around the unit.
7. Operation lamp (green)
8. TIMER lamp (yellow)
9. HOME LEAVE lamp (red)
LIghts up when you use HOME LEAVE
operation.
10. Indoor Unit ON/OFF switch
Push this switch once to start operation.
Push once again to stop it.
This switch is useful when the remote controller
is missing.
The operation mode refers to the following table.
Outdoor Unit
11. Air inlet:
(Back and side)
12. Refrigerant piping and inter-unit cable
13. Drain hose
14. Earth terminal:
It is inside of this cover.
15. Air outlet
Appearance of the outdoor unit may differ from some models.
12
13
14
15
11
Mode
Temperature
setting
Air flow
rate
CDK COOL
22
°
C
AUTO
CDX AUTO
25
°
C
AUTO
