Instruction Si12-308
124 System Configuration
Remote Controller

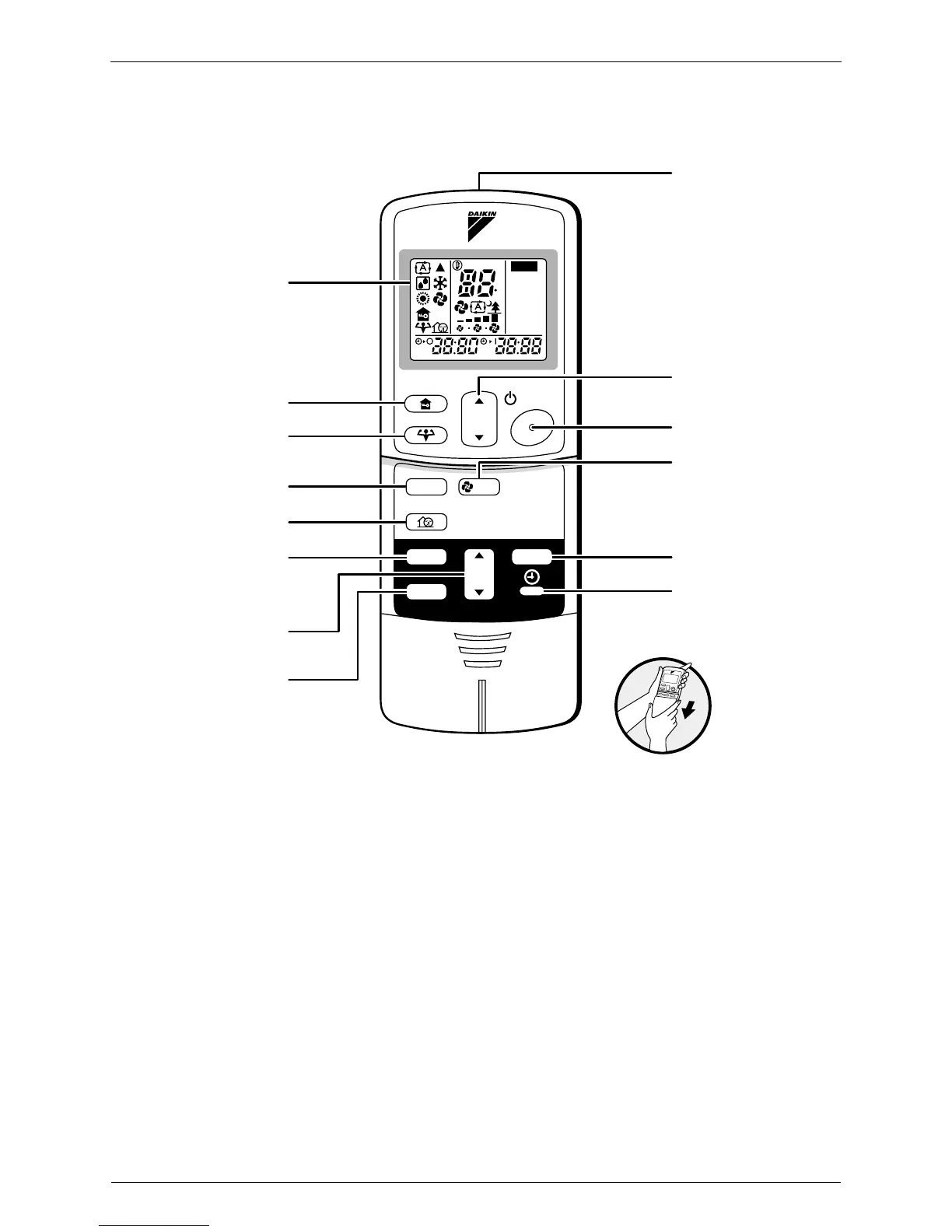

1. Signal transmitter:
It sends signals to the indoor unit.
2. Display:
It displays the current settings.
(In this illustration, each section is shown
with all its displays ON for the purpose of
explanation.)
3. HOME LEAVE button:
for HOME LEAVE operation
4. POWERFUL button:
for POWERFUL operation
5. TEMPERATURE adjustment buttons:
It changes the temperature setting.
6. ON/OFF button:
Press this button once to start operation.
Press once again to stop it.
7. MODE selector button:
It selects the operation mode.
(AUTO/DRY/COOL/HEAT/FAN)
8. SILENT button:
for OUTDOOR UNIT
SILENT operation
9. FAN setting button:
It selects the air flow rate setting.
10. ON TIMER button
11. OFF TIMER button
12. TIMER Setting button:
It changes the time setting.
13. TIMER CANCEL button:
It cancels the timer setting.
14. CLOCK button
C
ON
TEMP
ON/OFF
POWERFUL
HOME LEAVE
MODE
TIMER
FAN
SILENT
ON
CANCEL
OFF
1
2
5
6
9
13
14
10
12
11
<
ARC433A7, A8
>
3
4
7
8
