Instruction SiE12-411
130 System Configuration
Notes on flaps and louvres angles
"

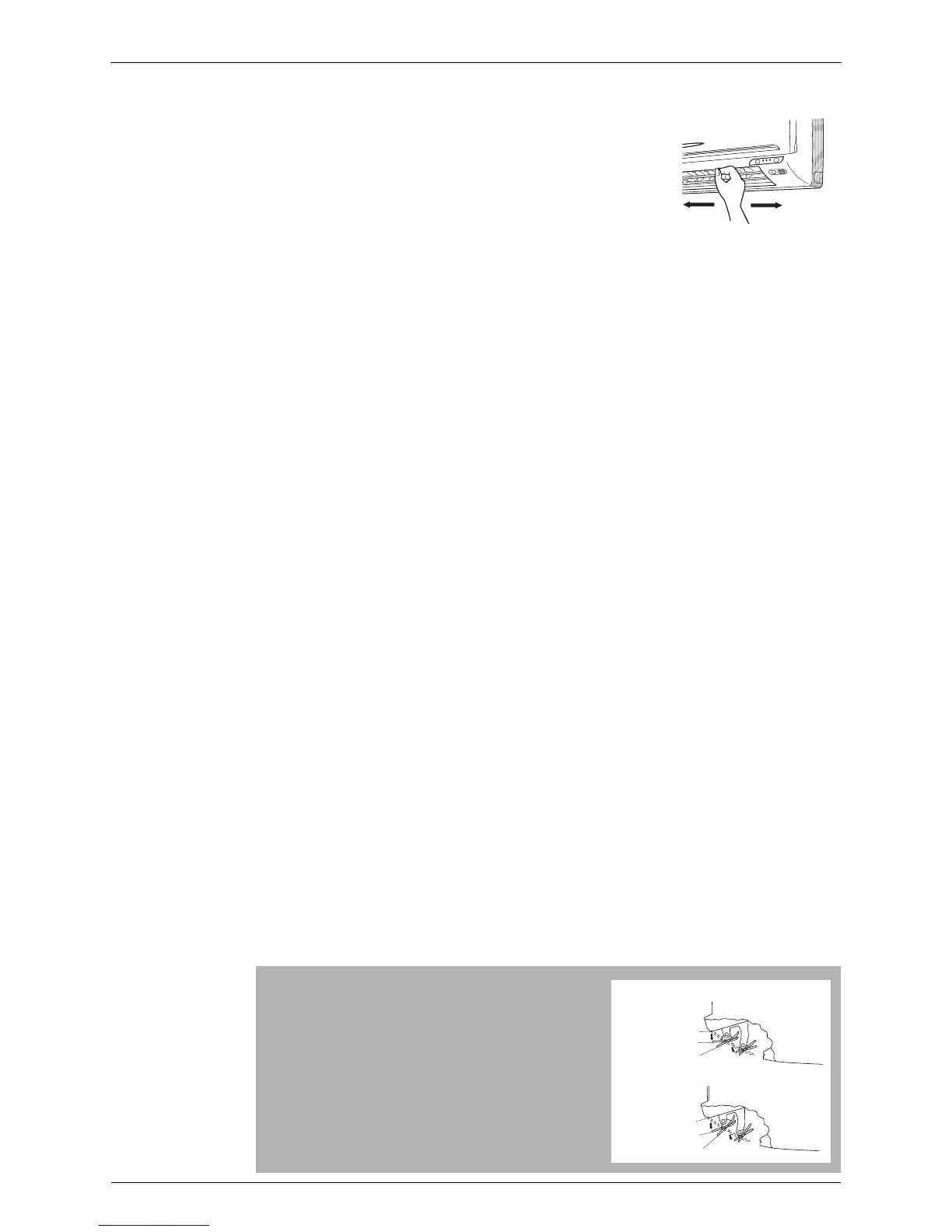

To adjust the vertical blades (louvres)
Hold the knob and move the louvres.
(You will find a knob on the left-side and the right-side
blades.)
• When “
SWING button
” is selected, the flaps
swinging range depends on the operation mode.
(See the figure.)
"
ATTENTION
• Always use a remote control to adjust the flaps
angle. If you attempt to move it forcibly with hand
when it is swinging, the mechanism may be broken.
• Be careful when adjusting the louvres. Inside the
air outlet, a fan is rotating at a high speed.
0˚
25˚
20˚
45˚
In DRY mode or COOL mode
When stop operation
Upper limit in cooling
Lower limit in cooling
In HEAT or FAN mode
When stop operation
Upper limit in heating
Lower limit in heating
To Next Page
