SiE12-411 Outdoor Unit (50 / 52 / 58 / 68 / 75 Class)

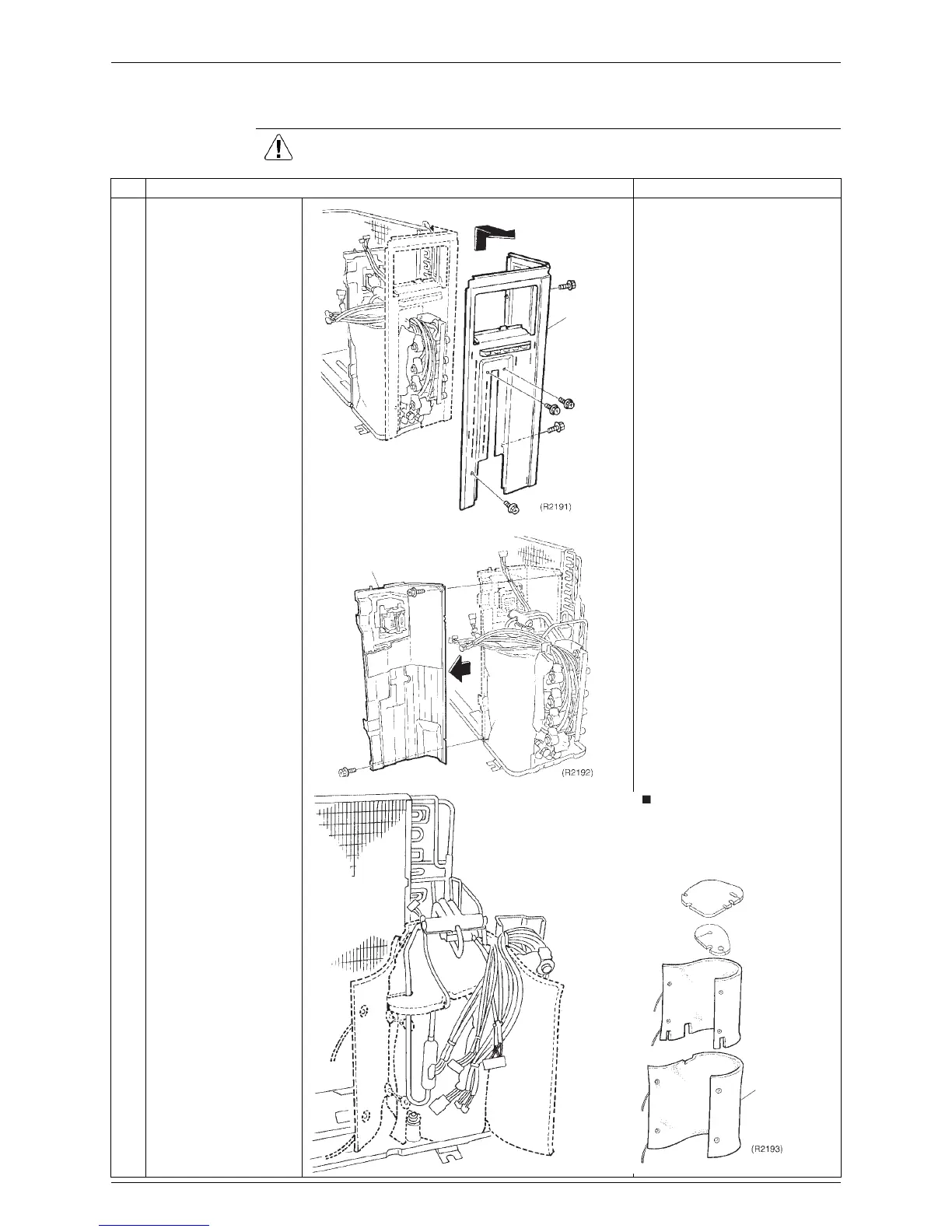

Removal Procedure 249
2.5 Removal of Sound Insulation
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1
Remove 5 screws of
the right side panel.
2
Remove 2 screws of
the partition board, and
remove the board.
3
Remove the noise
insulation (top, outer
and inner).
Right side
panel
Partition board
Sound insulation (top)
Sound insulation (top inner)
Sound insulation
(inner)
Sound insulation
(outer)
Carefully remove the noise
insulation, which is easily
torn in the piping section.
