Daikin Super Multi NX C-Series User Manual

SiE12-411 Piping Diagrams
Appendix 265

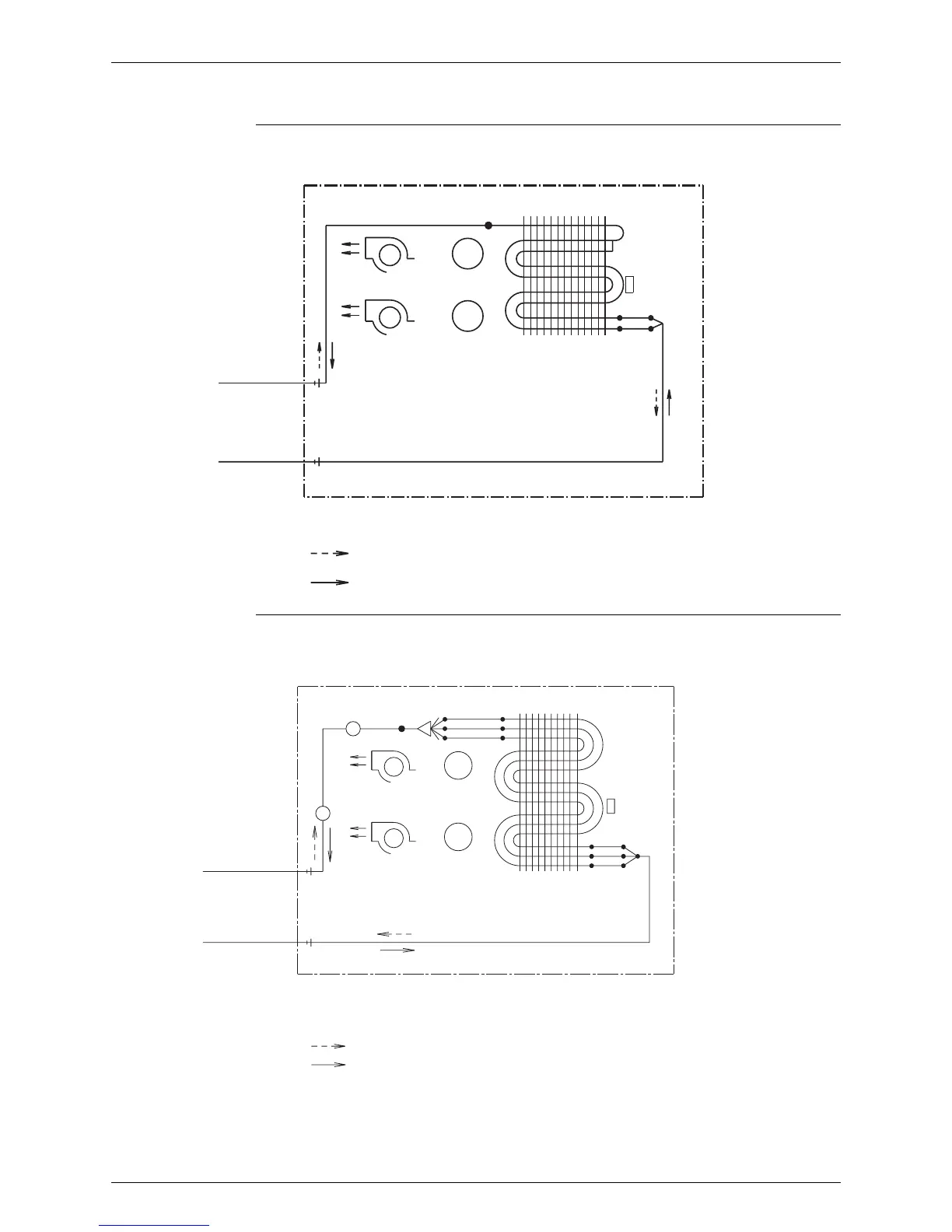

1.1.4 Floor Standing Type
FVK(X)S25/35BVMB, FVXS35BVMA
FVK(X)S50BVMB, FVXS50BVMA
REFRIGERANT FLOW
SINGLE UNION JOINT
SINGLE UNION JOINT
INDOOR UNIT
7.9CuT
CROSS FLOW FAN
CROSS FLOW FAN
COOLING
HEATING
FAN MOTOR
FAN MOTOR
9.5CuT
M
M
HEAT EXCHANGER
7.0CuT
7.0CuT
4D034714B
FIELD PIPING
(
6.4CuT
)
FIELD PIPING
(
9.5CuT
)
THERMISTOR
ON HEAT EXCH.
REFRIGERANT FLOW
INDOOR UNIT
9.5CuT
MUFFLER
MUFFLER
CROSS FLOW FAN
CROSS FLOW FAN
HEATING
COOLING
FAN MOTOR
FAN MOTOR
9.5CuT
M
M
4.8CuT
4.8CuT
7.0CuT
HEAT EXCHANGER
7.0CuT
7.0CuT
7.0CuT
4D020911C
FIELD PIPING
(
6.4CuT
)
FIELD PIPING
(
12.7CuT
)
THERMISTOR
ON HEAT EXCH.
