Field Settings SiBE18-821_C
156 Test Operation and Field Settings
< Floor / Ceiling Suspended Dual Type >

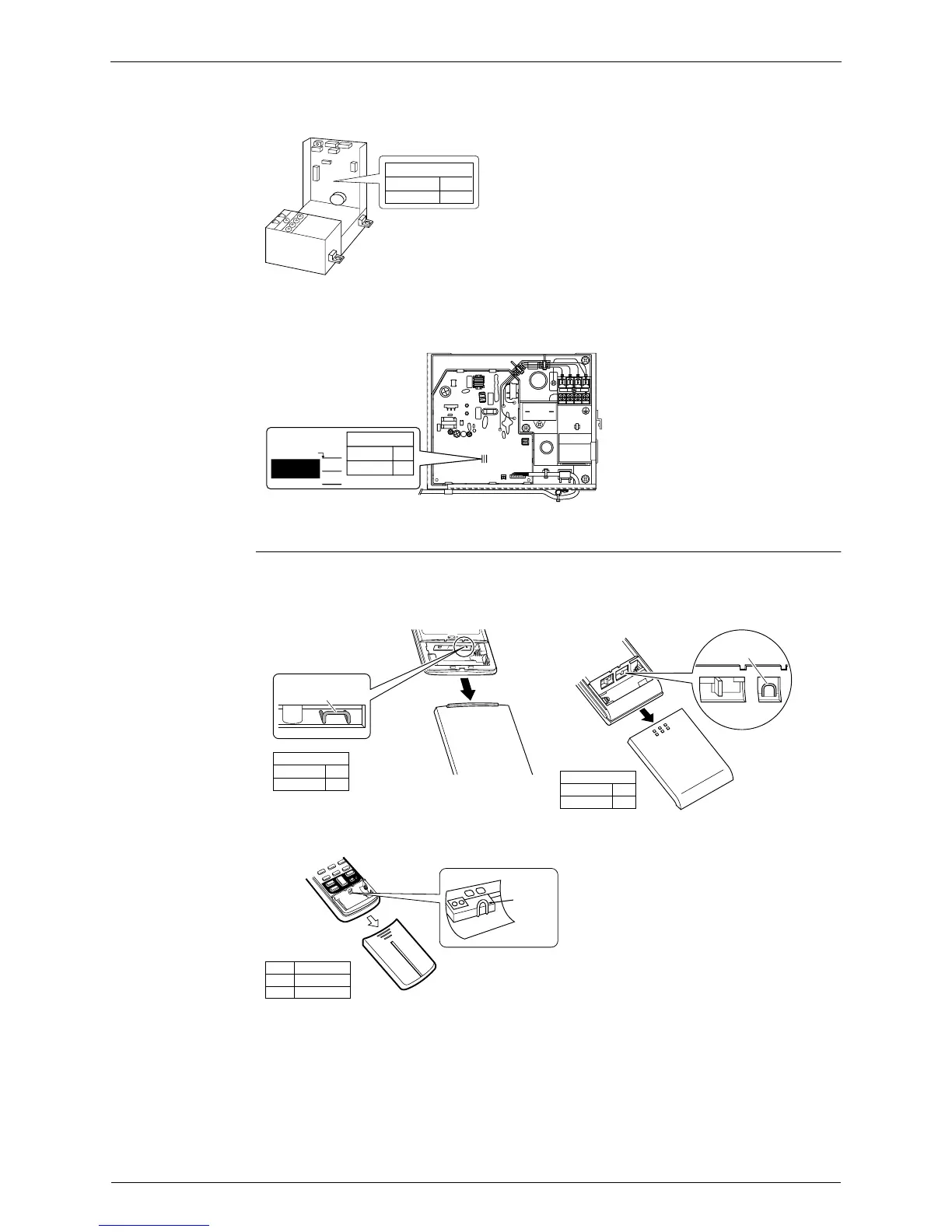

Cut the jumper JA on PCB.
< Duct Connected Type >
Cut the jumper JA on PCB.
Wireless Remote
Controller
(1) Remove the cover and take it off.
(2) Cut the address setting jumper.
ADDRESS JA
EXIST 1
CUT 2
(R11732)
1 23
CUT
EXIST 1
2
ADDRESS
JA
JB
JC
(R10276)
ADDRESS : JA
<ARC466 series> <ARC452 series>
<ARC433 series>
Jumper
(R12037)
ADDRESS
EXIST
1
CUT
2
Jumper
ADDRESS
EXIST
1
CUT
2
(R12065)
ADDRESS
EXIST
CUT
1
2
Jumper
(R6573)
