SiBE18-821_C Remote Controller

Printed Circuit Board Connector Wiring Diagram 61

4. Remote Controller

4.1 Wired Remote Controller

4.1.1 BRC1D528

Connectors and

Other Parts

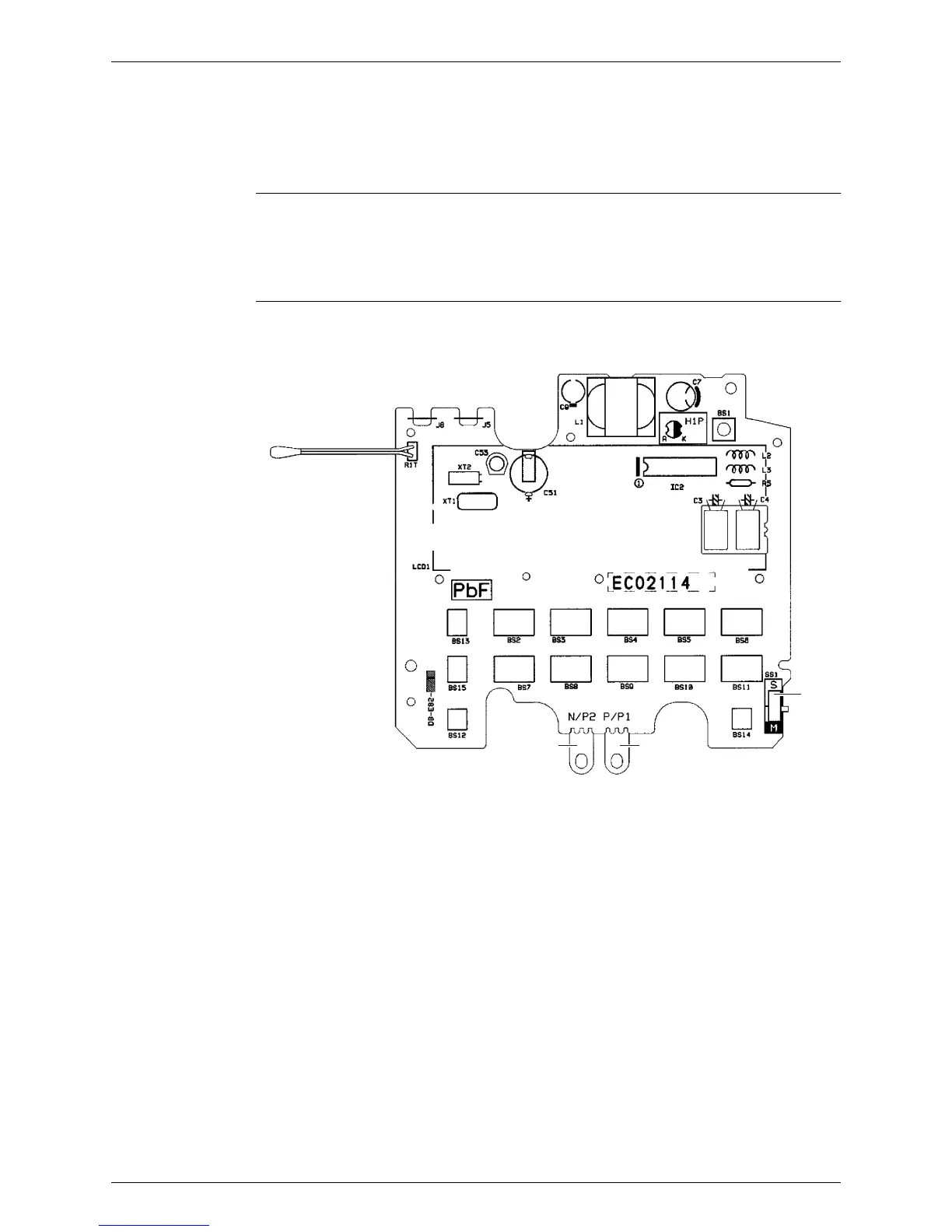

PCB Detail

1) P1, P2 Terminal for indoor unit

2) R1T Room temperature thermistor

3) SS1 MAIN / SUB setting switch

∗

Refer to page 162 for detail.

R1T

SS1

2P113638-2
