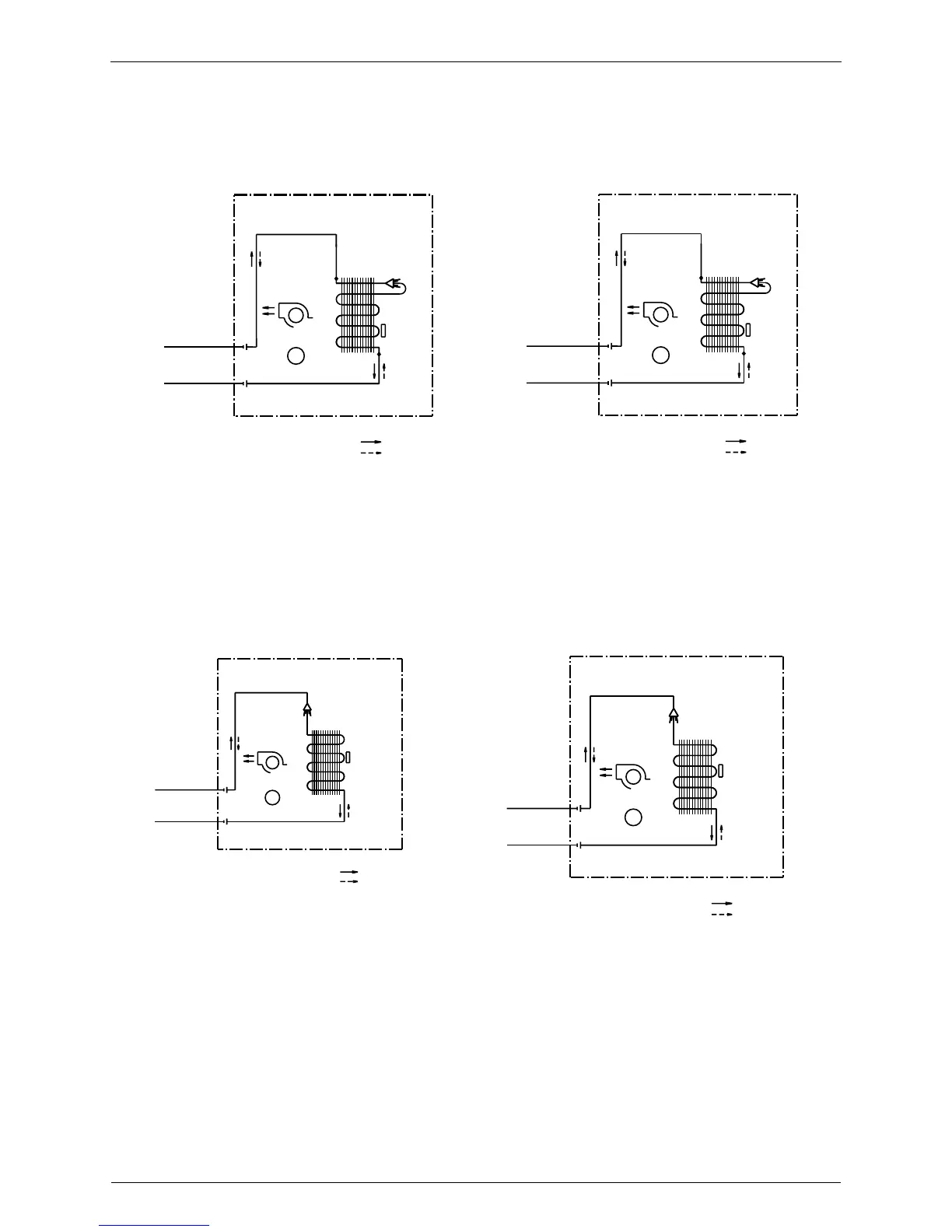

Piping Diagrams SiBE18-821_C
464 Appendix
FTXS20/25/35/42G2V1B FTXS50G2V1B
FTXS60FV1B, FTXS60GV1B FTXS71FV1B, FTXS71GV1B
CROSS FLOW FAN
9.5CuT
REFRIGERANT FLOW
FIELD PIPING
9.5CuT
6.4CuT
FIELD PIPING
M
COOLING
INDOOR UNIT
FAN MOTOR
HEAT EXCHANGER
6.4CuT
HEATING
THERMISTOR
ON HEAT EXCH.
4D058897D
CROSS FLOW FAN
COOLING
9.5CuT
6.4CuT
M
INDOOR UNIT
6.4CuT
REFRIGERANT FLOW
HEATING
FAN MOTOR
FIELD PIPING
HEAT EXCHANGER
FIELD PIPING
12.7CuT
THERMISTOR
ON HEAT EXCH.
4D058898D
FIELD PIPING
FIELD PIPING
(
12.7CuT
)
(
6.4CuT
)
CROSS FLOW FAN
FAN MOTOR
(
7.9CuT
)
INDOOR UNIT
(
12.7CuT
)
M
HEAT EXCHANGER
REFRIGERANT FLOW
HEATING
COOLING
THERMISTOR
ON HEAT EXCH.
4D040081W
(
15.9CuT
)
FIELD PIPING
FIELD PIPING
(
6.4CuT
)
CROSS FLOW FAN
FAN MOTOR
(
7.9CuT
)
INDOOR UNIT
(
12.7CuT
)
M
HEAT EXCHANGER
REFRIGERANT FLOW
COOLING
HEATING
THERMISTOR
ON HEAT EXCH.
4D040082U
