Daikin Super Multi Plus E-Series FTXG25EV1BW - Page 480

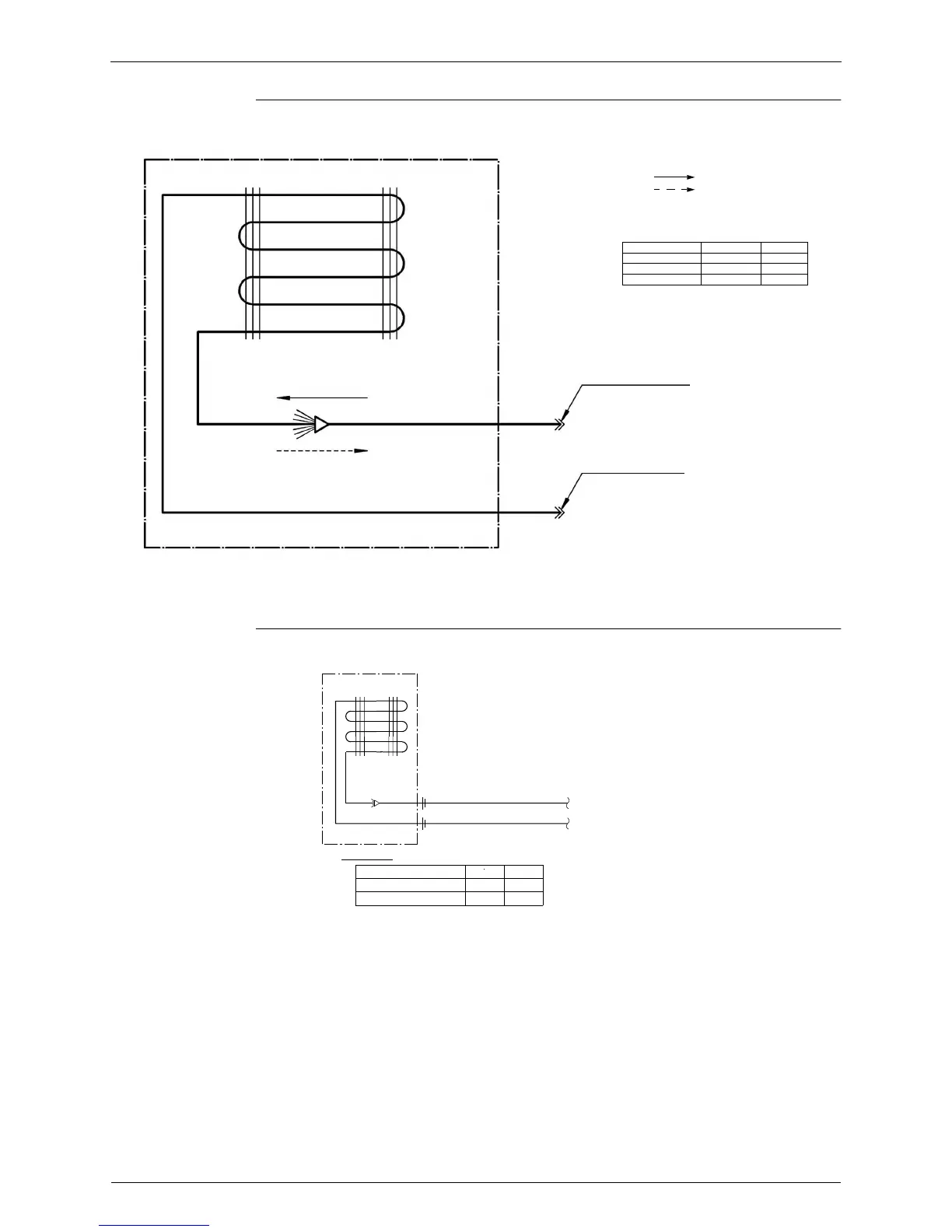

Piping Diagrams SiBE18-821_C
468 Appendix
FBQ35/50/60C7VEB
1.3.7 Ceiling Suspended Type
FHQ35/50/60BVV1B
Heat exchanger
Liquid pipe connection port
Gas pipe connection port
Refrigerant flow
Cooling
Heating
Refrigerant pipe connection port diameters
Model Gas Liquid
FBQ35C 9.52 6.35
FBQ50C 12.70 6.35
FBQ60C 12.70 6.35
C: 3TW31275-1
Indoor heat exchanger
FHQ35BVV1B
FHQ50, 60BVV1B
Field piping
Field piping
C1220T-0
C1220T-0
6.4
6.4
φ
φ
12.7
9.5
MODEL
Indoor unit
To
Outdoor unit
A
A
B
B
C: 4D037995H
