Indoor Unit SiBE18-821_C

40 Printed Circuit Board Connector Wiring Diagram

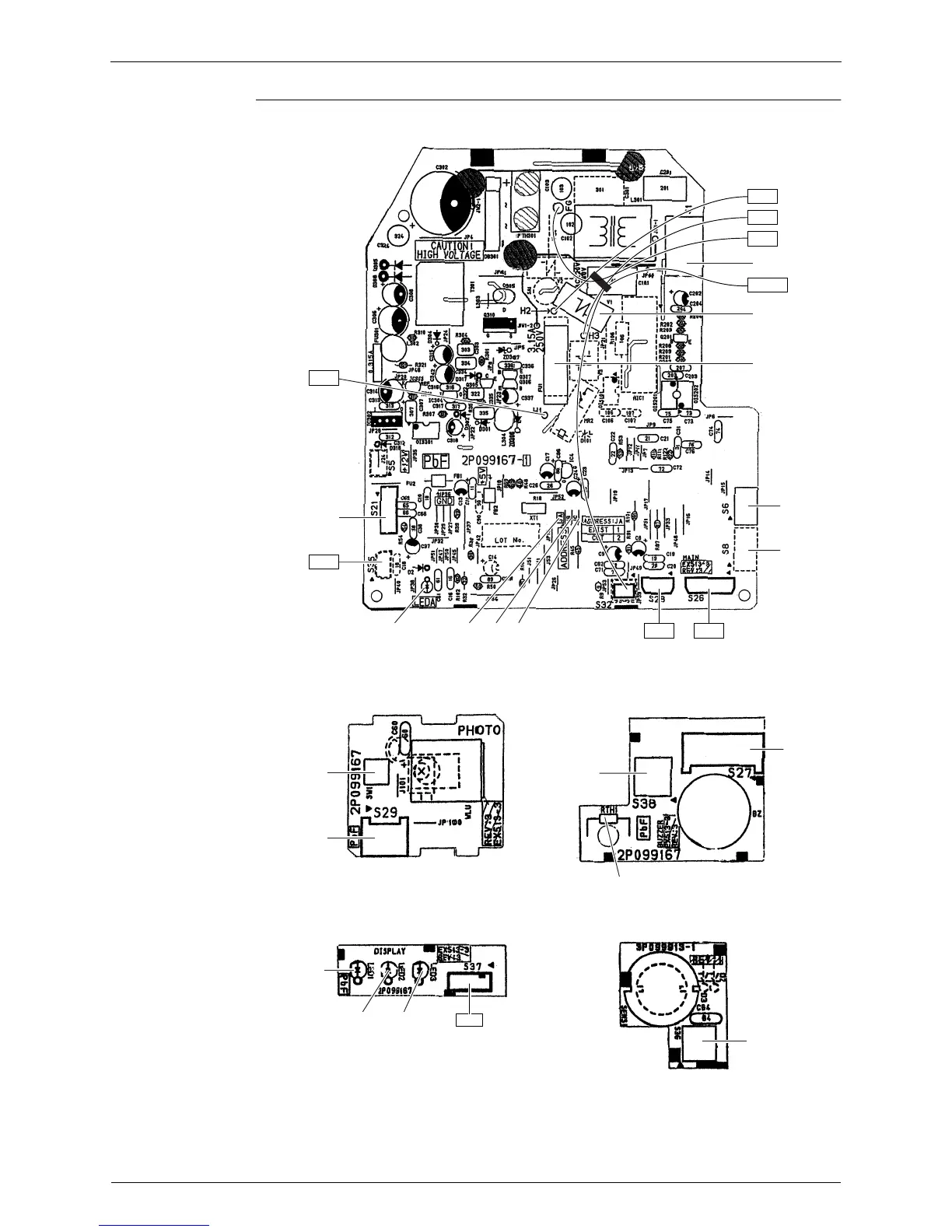

PCB Detail PCB (1): Control PCB

PCB (2): Signal Receiver PCB PCB (3): Buzzer PCB

PCB (4): Display PCB PCB (5): INTELLIGENT EYE Sensor PCB

FU1

2P099167-1

JCJBJALED A

S21

S35

S26S28

S32

SW1

S29

2P099167-1

RTH1

S38

S27

LED2 LED3

S37

2P099167-1

LED1

S36

3P099913-1
