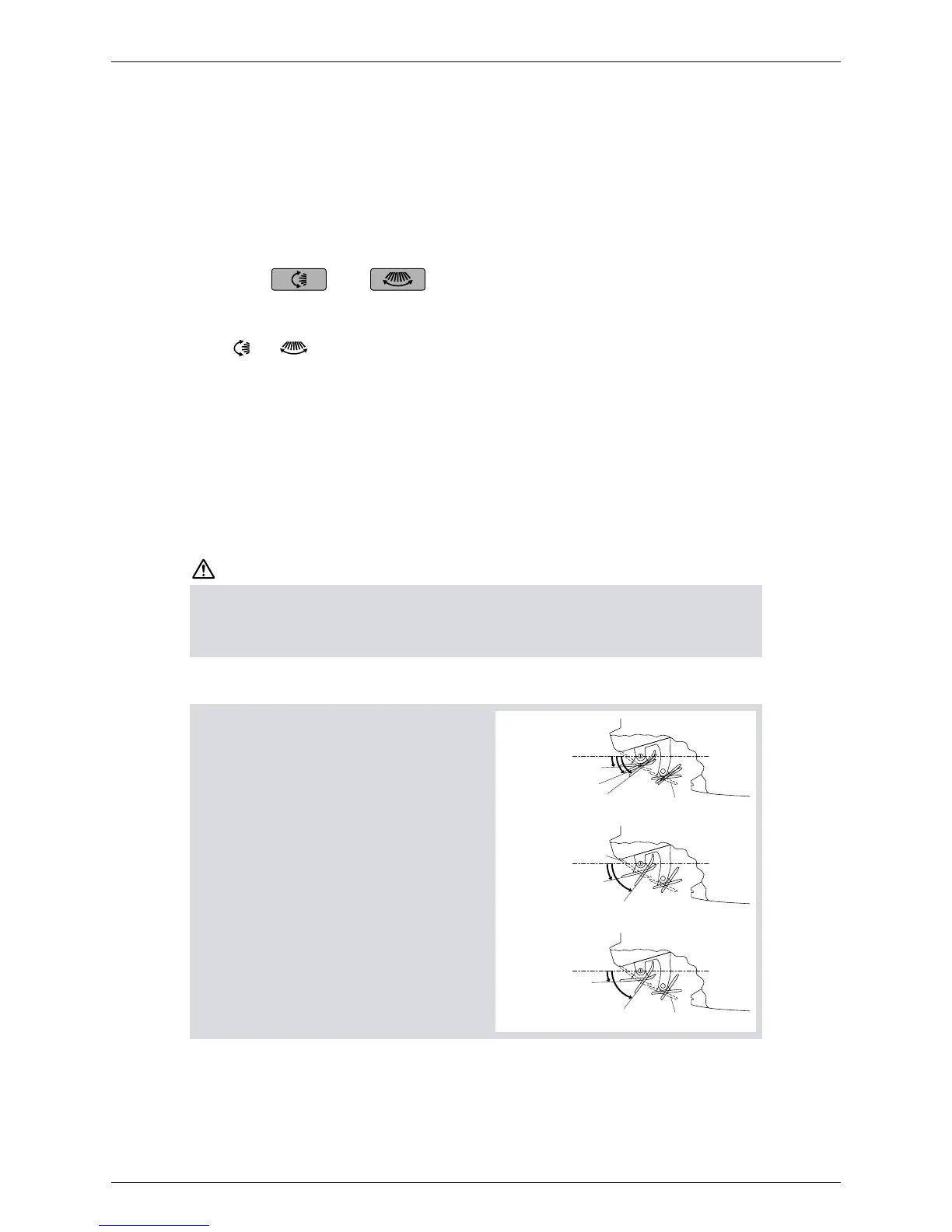

To set the flaps or louvers at desired position
• This function is effective while flaps or louvers are in auto swing mode.
CAUTION
NOTE
5˚
55˚
5˚
15˚
40˚
15˚
55˚
Upper limit
COMFORT AIRFLOW
Lower limit
Stop operation
Upper limit
Lower limit
and
COMFORT AIRFLOW
Upper limit
Lower limit
In HEAT operation
In FAN operation
Stop operation
Stop operation
Press and when the flaps or louvers have reached the
desired position.
In DRY operation or
COOL operation
• In the 3-D airflow, the flaps and louvers move in turn.
• “ ” or “ ” disappears from the LCD.
• Always use a remote controller to adjust the angles of the flaps and louvers. If you attempt to
move it forcibly with hand when it is swinging, the mechanism may be broken.
• Always use a remote controller to adjust the louvers angles. In side the air outlet, a fan is
rotating at a high speed.
Note on the angles of the flaps
• The flaps swinging range depends on the
operation. (See the figure.)
Note on 3-D airflow
• Using 3-D airflow circulates cold air, which
tends to collected at the bottom of the room,
and hot air, which tends to collect near the
ceiling, throughout the room, preventing
areas of cold and hot developing.
