Refrigerant Circuit 69
2. Functional Parts Layout
2.1 Outdoor Unit

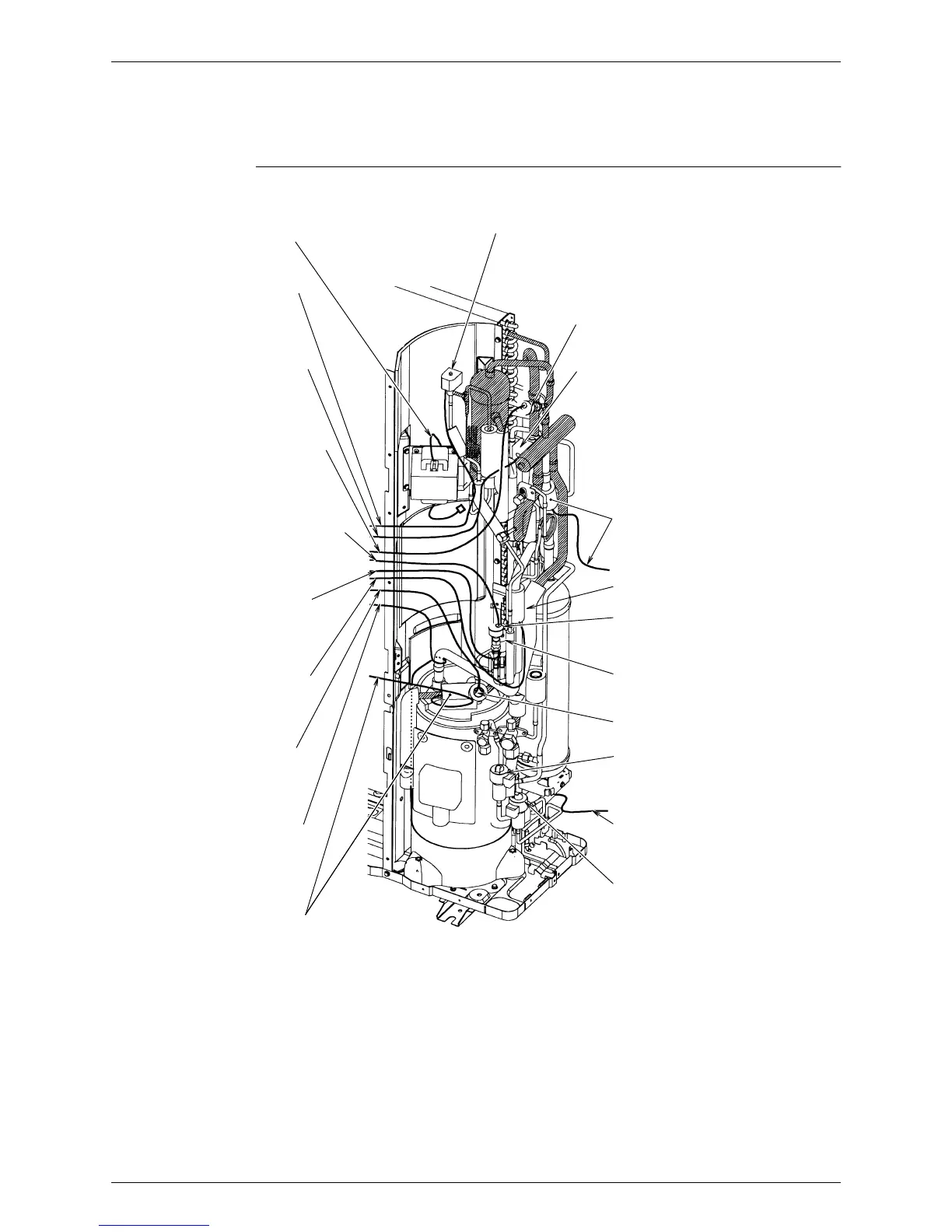

Front View
L1R: Reactor lead wire
(High voltage)
Y2S: Solenoid valve
(Connector: black)
S1NPH: High pressure sensor
(Connector: red)
R3T: Thermistor (suction pipe 1)
(Marking: red)
R5T: Thermistor (suction pipe 2)
(Marking: green)
S1NPL: Low pressure sensor
(Connector: blue)
Y1E: Electronic expansion valve (main)
(Connector: white)
Y3E: Electronic expansion valve
(subcooling)
(Marking: blue)
Y3S: Solenoid valve
(Connector: pink)
(High voltage)
S1PH: High pressure switch
R7T: Thermistor (liquid pipe 1)
Y1S: Four way valve
(Connector: blue)
(High voltage)
Y2S: Solenoid valve lead wire
(Connector: black)
(High voltage)
Y1S: Four way valve lead wire
(Connector: blue)
(High voltage)
S1NPH: High pressure sensor
lead wire
(Connector: red)
(Low voltage)
S1NPL: Low pressure sensor
lead wire
(Connector: blue)
Y3S: Solenoid valve lead wire
(Connector: pink)
(High voltage)
R5T: Thermistor (suction pipe 2)
(Marking: green)
S1PH: High pressure
switch lead wire
(Connector: white)
R2T: Thermistor (discharge pipe)
E1HC: Crankcase heater
lead wire
(Connector: gray)
(High voltage)
