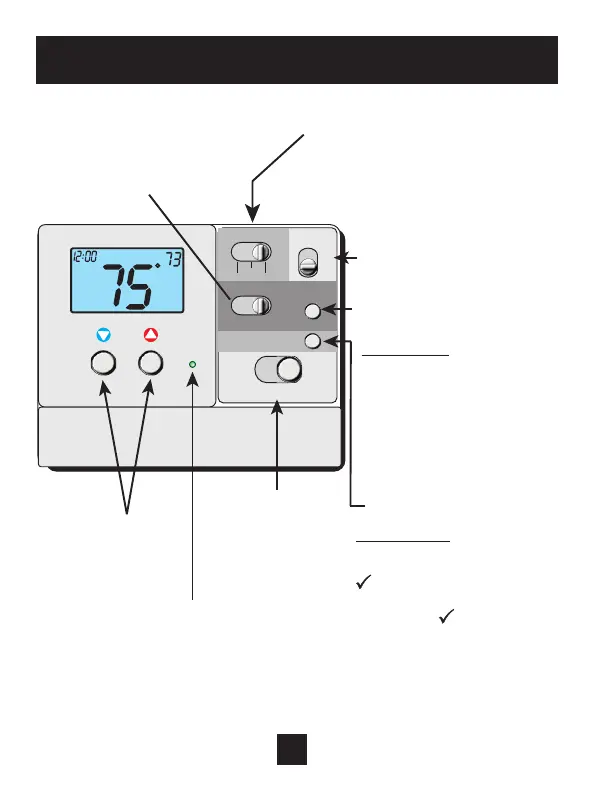

Location of Controls
NEXT BUTTON
RESET FILTER
How to Use: Press and
hold the RESET FILTER
button to clear the
AUX HEAT
SWITCH
Emergency
Normal
Lockout
icon from the
display (pg 5). To adjust
when the icon
appears, see Advanced
Setup screens (pg 19).
FILTER
FILTER
COOLER
&
WA
RMER
BUT
TONS
PROGRAM SWITCH
RUN program
Program OFF
SET program
SET
HEAT
BATTERIES
COOL
OFF
PROGRAM
RUN OFF SET
RESET
FILTER
FAN
NEXT
HEAT
AUX HEAT
NORM
EMRGC’Y LOCKOUT
AUTO
ON
On or Auto
FAN SWITCH
For programming
How to use: The NEXT
button is used to advance
from one step to the next
in the programming and
advanced setup screens
(pgs 9 - 18).
BI-COLOR LED
Heat or Cool demand
indicator when system
powered: Red = Heat
Green = Cool
MODE
SWITCH
Cool, Off,
or Heat
Su
PM

Daikin TSTATD2152-2 Specifications

General

Programmability	7-Day Programmable
Programmable	Yes
Wi-Fi Capable	Yes
Product Type	Thermostat
Power Source	24VAC
Connectivity	Wi-Fi
Stages	2 Heat / 2 Cool
