www.DaikinApplied.com 37 IOM 1281-2 • CENTRIFUGAL WATER CHILLERS

(in priority sequence)
Notes
RUN Unload Vanes-Lag Start
Overrides water temperature
command
RUN Hold Vanes-Evap Press
RUN Unload Vanes-Evap
Press
RUN Unload Vanes-Soft Load
RUN Hold Vanes-Soft Load
RUN Load Vanes-Disch Temp
RUN Hold Vanes-Pull-down
Rate
RUN Unload Vanes-Demand
Limit
RUN Hold Vanes-Min Amps
RUN Load Vanes
Normal operationRUN Hold Vanes
RUN Unload Vanes
SHUTDOWN Unload
Unloading during the shutdown
sequence
POSTLUBE Timer=xxx Postlube timer on
POSTLUBE Motor Current
High
Compressor motor running
during the shutdown mode. It
󰀨
NOTE: Timer countdown values will be shown in place of


is shown in the RUN state to indicate if the capacity is
controlled by speed from the VFD or by vane control.
The bottom icon bar will be visible on all screens with the
active screen highlighted in white.
(II) Unit Status Modes 
If the unit is stopped, the Source would be listed after State.
Various unit states and control sources are shown as examples
in Figure 35 to Figure 37.

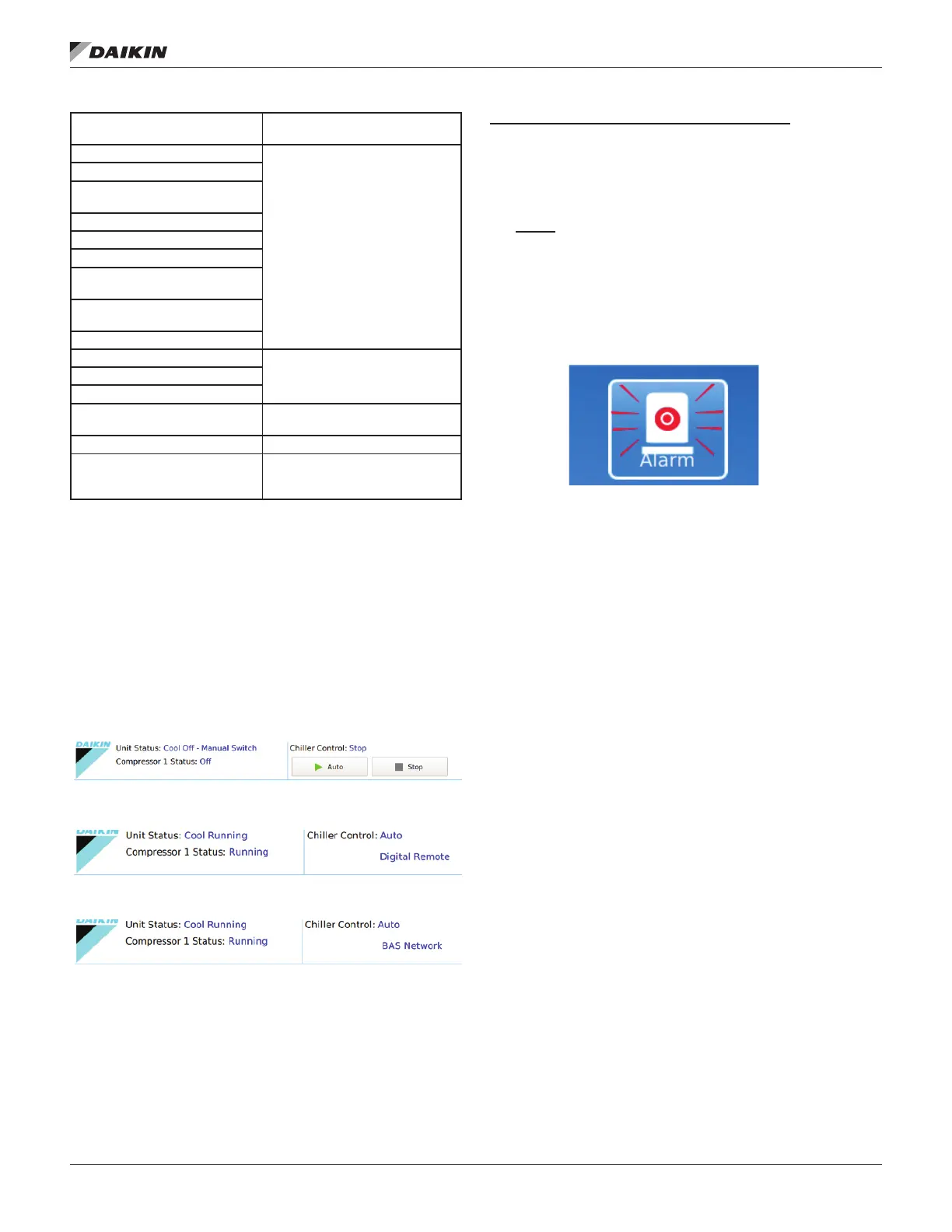

Figure 35: Mechanical Switch Source
Figure 36: Digital Remote Switch Source
Figure 37: BAS Network Source

Entering and leaving evaporator water temperatures
Entering and leaving condenser water temperatures
Percent compressor RLA
Compressor kW (will read 0 without Full Metering Option
(IV) 

an alarm occur. This red ALARM button will appear on
all screens in the case of an alarm. See Figure 38 for an
example of an active alarm alert. For more information on
alarms, see page 56.
Figure 38: Active Alarm Icon
Additional HMI View Screens
Pressing the Detail Tab on the top of the Home View Screen
Figure
39
WSC, WDC, WCC, and TDC models (see
).
If a Technician level password is entered, two additional
tabs will follow the Detail Tab. The Tech Data Tab will show
compressor staging and pLAN communication. On the Tech

analog and digital, at both the Unit Controller and Compressor
Controller levels.
To make setpoint adjustments or change operating parameters,
tap on the Settings icon at the bottom of the screen; Figure 47
on page 45.

Related product manuals
