SINGLE SCREW CHILLERS IMM
Engineered for Flexibility and Performance 43
Appendix C
(Informative Appendix)
Instructions for Flow Switches

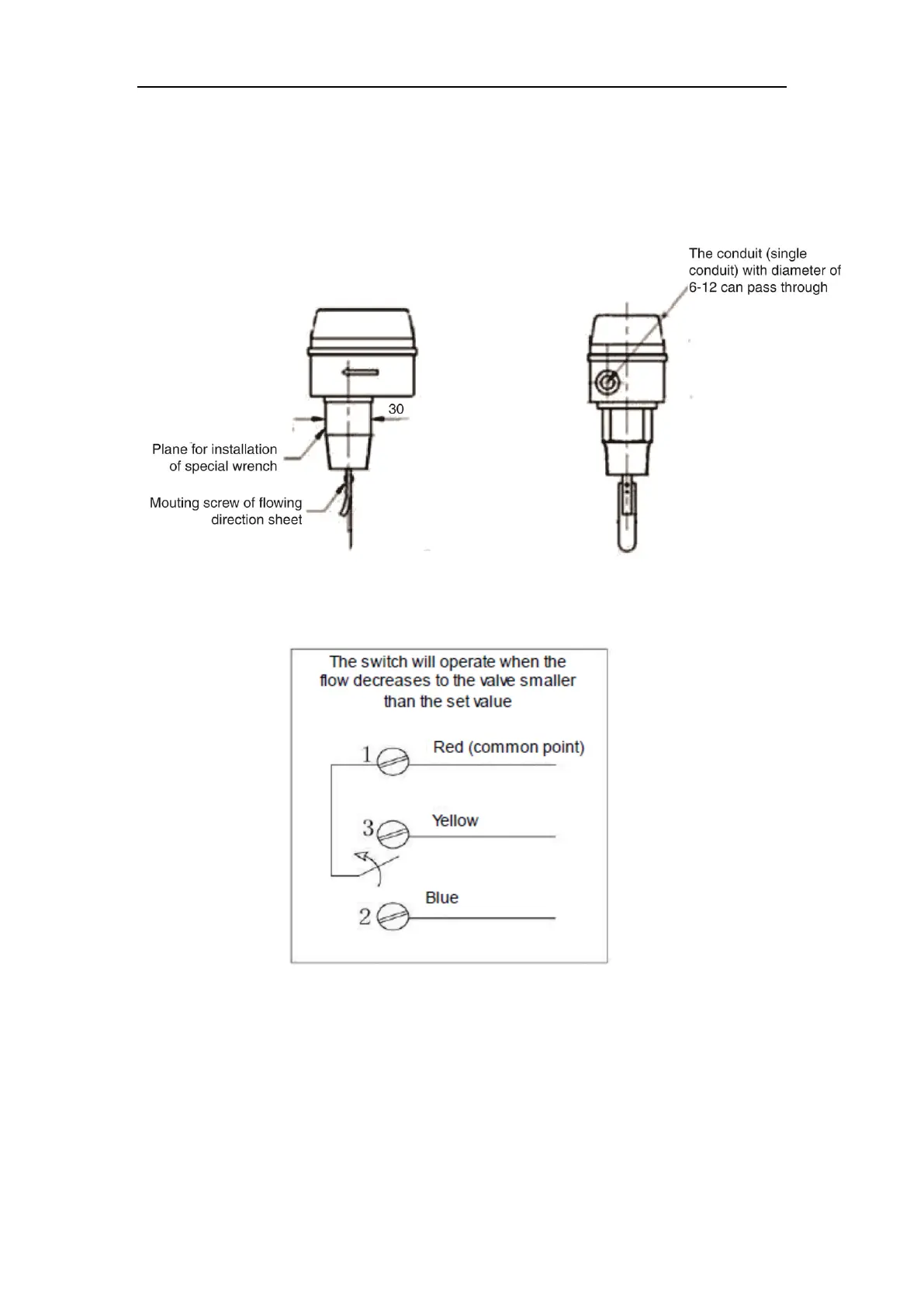

1. Dimension of Flow Switches
Fig.1 Dimension
2. Operating Conditions of Flow Switches
Fig.2 Switches Motion
When sufficient liquid passes through the pipe and turns the flow switch on, the circuit
between red to yellow points is connected.
