4/29/03
Model Trademaster Section I - 6

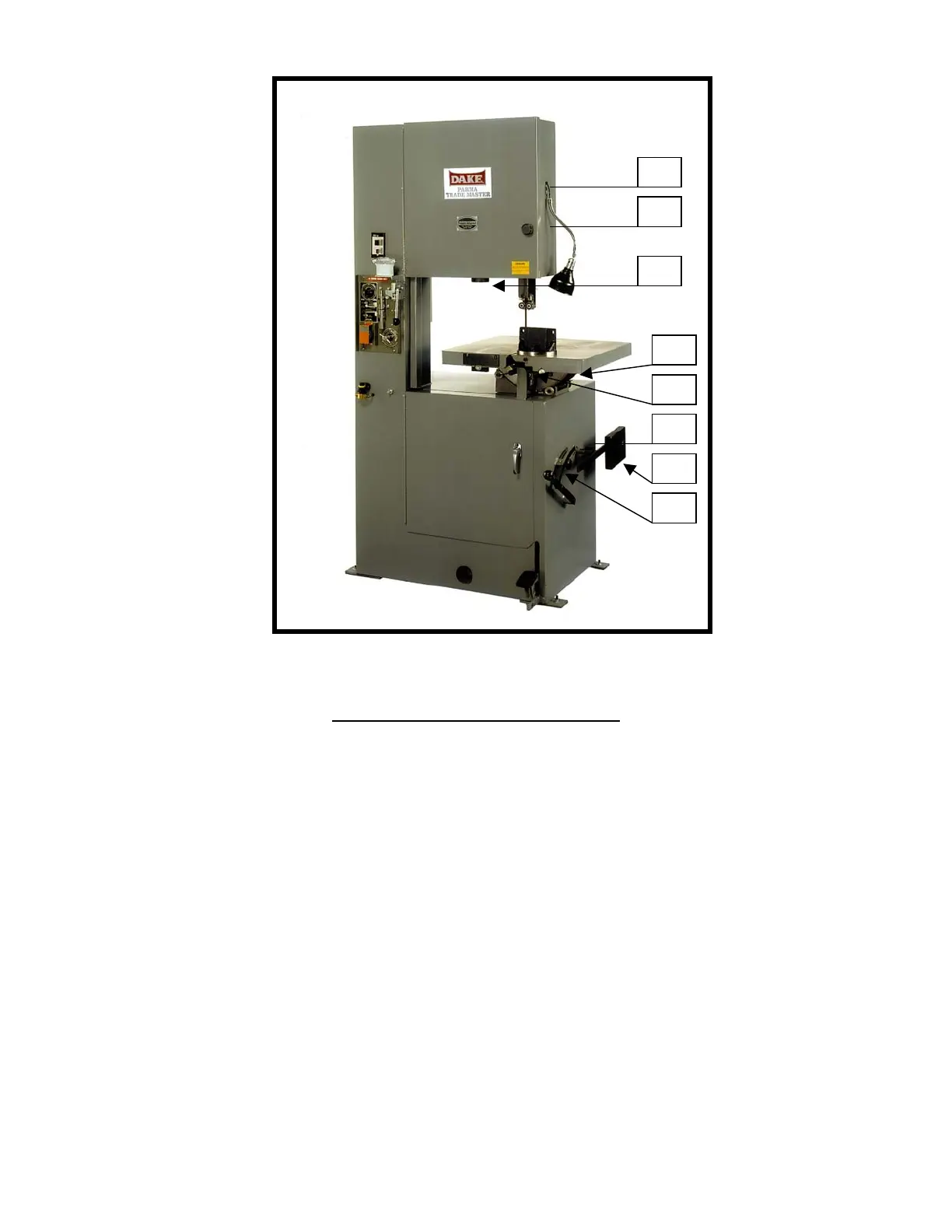

TRADEMASTER ADJUSTMENTS
A WHEEL CANT ADJUSTMENT– Used to position blade on wheel.
B GUIDE BAR LOCK – Used to lock roll guides into position.
C BLADE TENSION HANDLE – Used to remove and install saw blade. Also used
to set the correct blade tension – be sure blade is tight.
D ROCKER LOCK KNOB – Used to unlock & move table to desired degree angle
of cut then lock into position.
E TABLE LOCK KNOB – Used to lock table into a fixed position.
F VARIABLE SPEED LOCK – Unlock lock and move to the desired blade speed &
relock.
H HYDRAULIC FEED CYLINDER – Used to regulate the table feed.
E
