Section 8: Scoreboard Options
8.1 Trumpet Horns
Trumpet horn options are available for installation only on scoreboards that have clocks.
There are two types of optional trumpet horns:
Internally mounted 120 V trumpet horn
Externally mounted 12 V DC trumpet horn
A 120 V trumpet horn cannot be installed on a 240 V model scoreboard. For additional
information about this option, contact a Daktronics representative; for complete information
on installing trumpet horns, refer to the Trumpet Horn Installation Manual (ED-10006),
available online at www.daktronics.com/manuals.
Trumpet Horn Part Numbers:
120 V AC Trumpet Horn,
Top Mounting
FB-2018, FB-2019, FB-2020, FB-2021,
FB-2022, FB-2023, FB-2024, FB-2025,
FB-2026, FB-2027, MS-2009, SO-2018,
SO-2019, SO-2021, SO-2022, & SO-2023
120 V AC Trumpet Horn,
Bottom Mounting

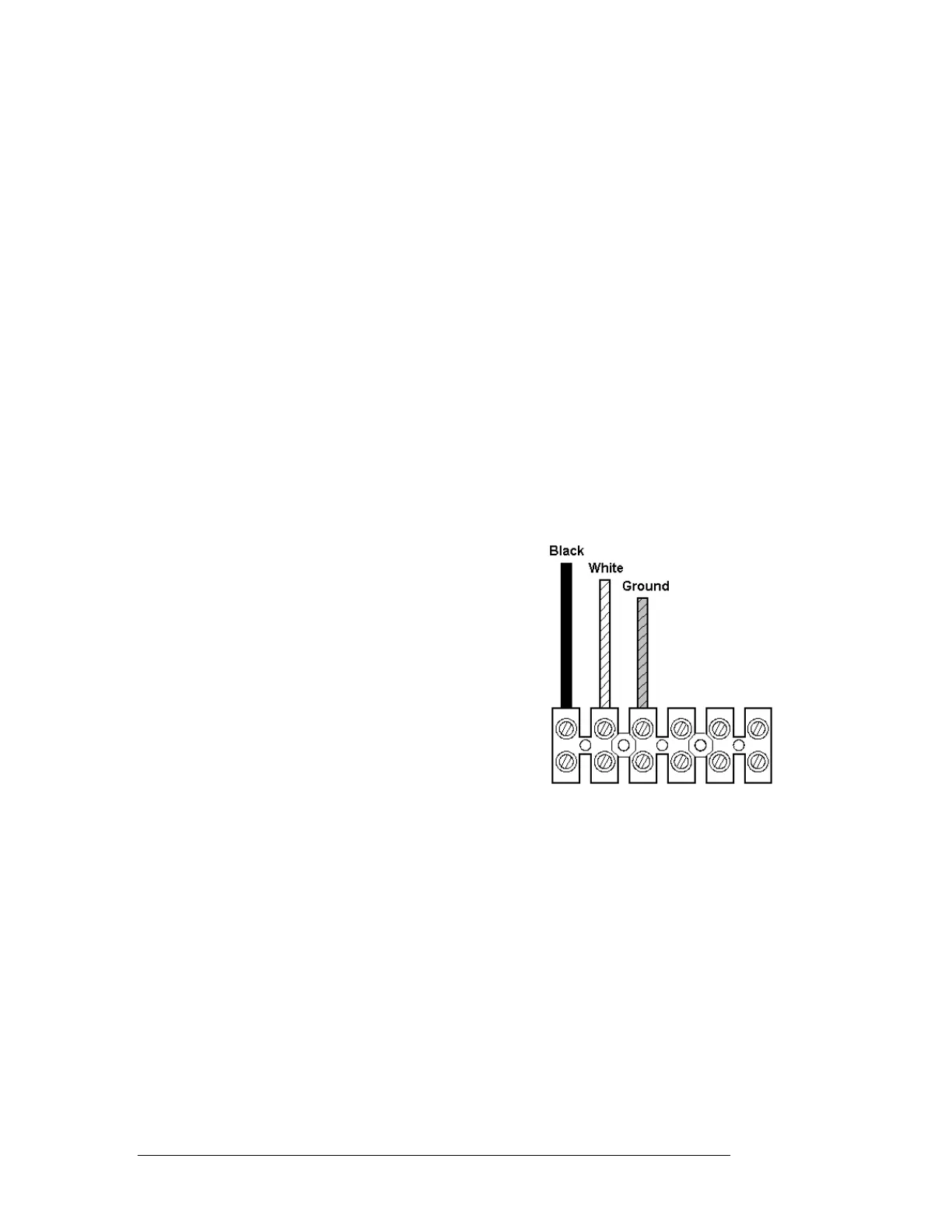

12 V DC Trumpet Horn
(240 V Scoreboards Only)
8.2 Radio Control
Radio control is an option for all Daktronics outdoor LED scoreboards. The system provides
scoreboard control via a 2.4 GHz, extra-high frequency FM signal.
The radio transmitter and receiver are not standard. This setup requires a control console
equipped with radio output as well as a radio receiver plugged into the power terminal block
in the driver/power enclosure and mounted internally to the front panel of the scoreboard.
For additional information about this option, contact a Daktronics representative; for
complete information on setting up radio communication control, refer to the Gen V Radio
Installation Manual (ED-13831), available online at www.daktronics.com/manuals.
