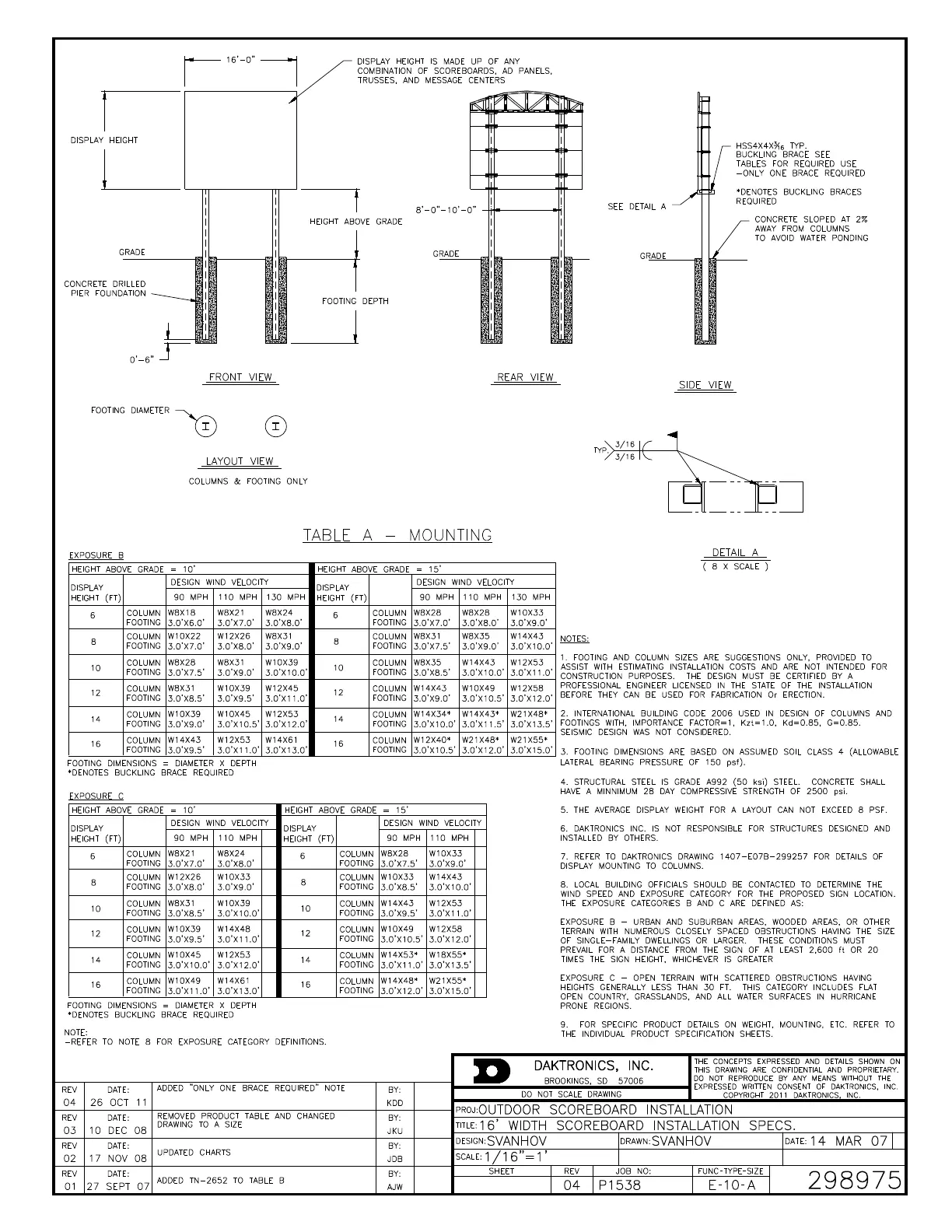

TNMC Maintenance 9-11
Part Description Part Number
Controller assy; 832/848, LED TNMC, G3
0A-1152-2549
Driver (only); MASC, 4-col, LED, coated 0A-1192-0068
Transformer; 115/230 V pri, 16 V sec @ 2 A
T-1063
Module, TNMC; amber LED (4A, 8x8, coated, Type 2) 0A-1208-4001
Module, TNMC; red LED (3R, 8x8, coated, Type 2) 0A-1208-4000
Power supply assy; amber LED TNMC 0A-1192-3161
Power supply (only); amber LED TNMC A-1591
Power supply assy; red LED TNMC 0A-1192-3160
Power supply (only); red LED TNMC
0A-1192-3160
Cable assy; 20-pos ribbon, 18", dual row (module to module) 0A-1192-3160
Cable assy; 20-pos ribbon, 30" (TNMC controller to first
module)
0A-1192-3160
Electrical contact cleaner/lubricant (CaiLube
®
)
0A-1192-3160h
*Effective in Fall 2003, Daktronics Part Number 0A-1208-3005 was replaced with Part Number
0A-1208-3018. Contact Daktronics Customer Service for specific replacement part numbers.
Part numbers for each complete team name message center assembly are as follows:
Assembly Part Number
Amber LED TNMC, 832 0A-1192-3165
Red LED TNMC, 832
0A-1192-3164
Amber LED TNMC, 848
0A-1192-3167
Red LED TNMC, 848 0A-1192-3166
To prevent theft, Daktronics recommends purchasing a lockable cabinet to store manuals and
replacement and spare parts.
Refer to Section 8.9 for information on the Daktronics Exchange and Repair and Return
programs.
