Introduction
2
Specications Label
Power specications as well
as serial and model number
information can be found on
the device’s ID label, similar to
those shown in Figure 1.
When calling Daktronics
customer service, please have
the model number, serial
number, and the date the
device became operational
available to ensure the request
is serviced as quickly as possible.
Resources
Figure 2 illustrates a Daktronics drawing label.
This manual refers to drawings by listing the last
set of digits. In the example, the drawing would
be referred to as DWG-1007804. All references to
drawing numbers, appendices, gures, or other
manuals are presented in bold typeface. Any
drawings referenced in a particular section are
listed at the beginning of it as shown below:
Reference Drawings:
System Riser Diagram ....................................................................................... DWG-1007804
Daktronics identies manuals by the DD or ED number located on the cover page.
Horn Start Overview
Every heat in swimming has a start. The rule book states, “The starter should be on
a separate system that is designed specically to provide clear and simultaneous
instructions at each of the starting platforms.” In addition to needing something to start
each heat, many teams train for starts during practice.
A typical beginning of a race starts with the referee or assistant referee getting the
athletes’ attention, then turning control of them over to the start ofcial. The start
ofcial instructs the competitors to “Step-up” for a forward start, or “Place your feet” for
a backstroke start. The competitors should step into place without excessive noise or
movement. The start ofcial may give brief instructions as deemed necessary. Then, the
start ofcial commands, “Take your mark.” Each swimmer, with no unnecessary noise
or movement, immediately assumes the desired starting position. Once the start ofcial
sees that the swimmers have taken their position uniformly and are motionless, the signal
is given to start the race. The purpose of this is to insure that no competitor has an unfair
advantage by intimidation, position, jump or delay.
Daktronics has developed a start system that ensures reliability and fair starts for all. Its
straightforward design produces a loud sound, bright visual strobe and precise electronic
signal. The HS-200 is a portable unit that comes standard with an internal rechargeable
battery, power pack, 360° strobe, 30’ (9.1 m) start cable, 15’ (4.6 m) microphone cable
and microphone. Several other options are available, including the backstroke agpole-
mounting bracket, auxiliary speakers, individual lane speakers, wireless microphone,
remote strobe and start cables to connect to other brands of timing systems, including
CTS, Omega, and IST.
ASSY NO.
SER. NO.
MFG DATE
BROOKINGS, SD 57006-5128
PHONE 800-325-8766
LL-2306 R01
201 DAKTRONICS DR.
DAKTRONICS
0A-1056-0234
S/N: ####
(DATE) (REVISION)
HS-200
MODEL: DAKT-401-00
12VAC/DC 20WATTS
1.7 AMPS 50/60 HZ
ASSY NO.
SER. NO.
MFG DATE
BROOKINGS, SD 57006-5128
PHONE 800-325-8766
LL-2306 R01
201 DAKTRONICS DR.
DAKTRONICS
0A-1056-0126
S/N: ####
(DATE) (REVISION)
REMOTE STROBE
MODEL: DAKT-401-00
12VAC/DC 20WATTS
1.7 AMPS 50/60 HZ

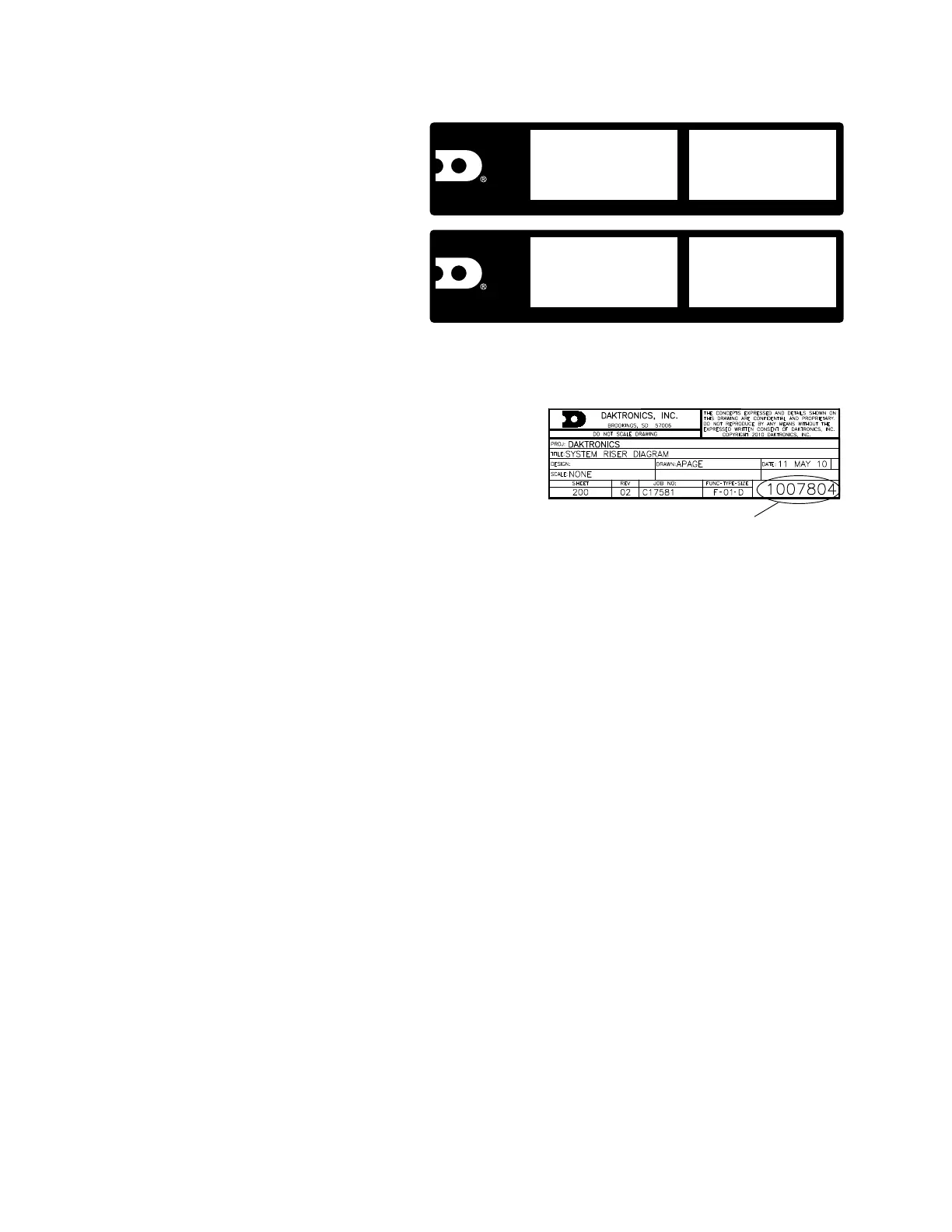

Figure 1: Specications Labels
Drawing Number
Figure 2: Drawing Label
