System Setup & Operations

Start System Setup

Reference Drawings:

HS-200 Horn Start; On-Deck conguration ....................................................... DWG-185695

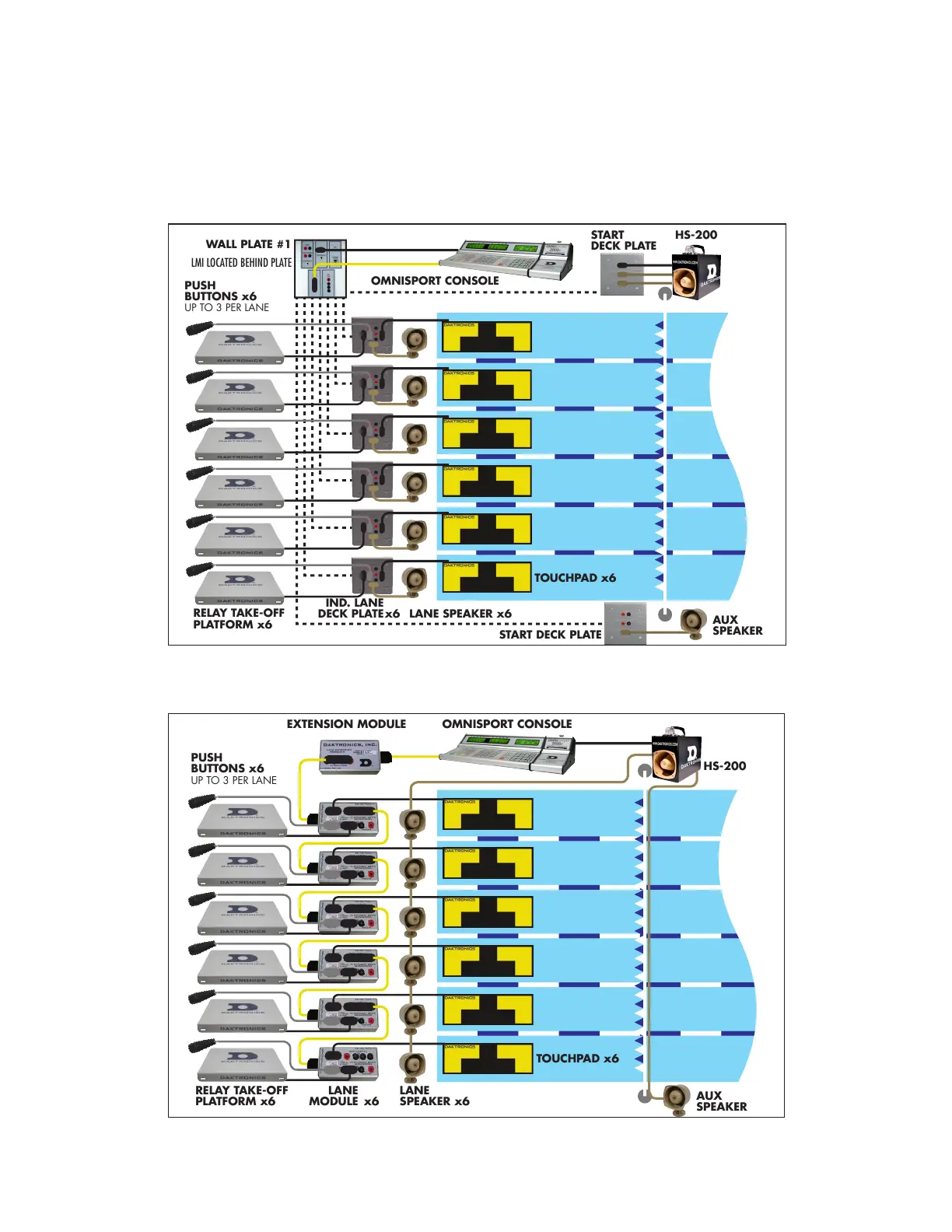

Refer to Figure 4 (In-Deck) and Figure 5 (On-Deck) for a typical overview when placing

the start system components.

OMNISPORT CONSOLE

IND. LANE

DECK PLATEx6

START

DECK PLATE

WALL PLATE #1

LMI LOCATED BEHIND PLATE

START DECK PLATE

TOUCHPAD x6

PUSH

BUTTONS x6

UP TO 3 PER LANE

HS-200

LANE SPEAKER x6

AUX

SPEAKER

RELAY TAKE-OFF

PLATFORM x6

Figure 4: Typical In-Deck Swimming Installation

OMNISPORT CONSOLEEXTENSION MODULE

LANE

MODULE x6
